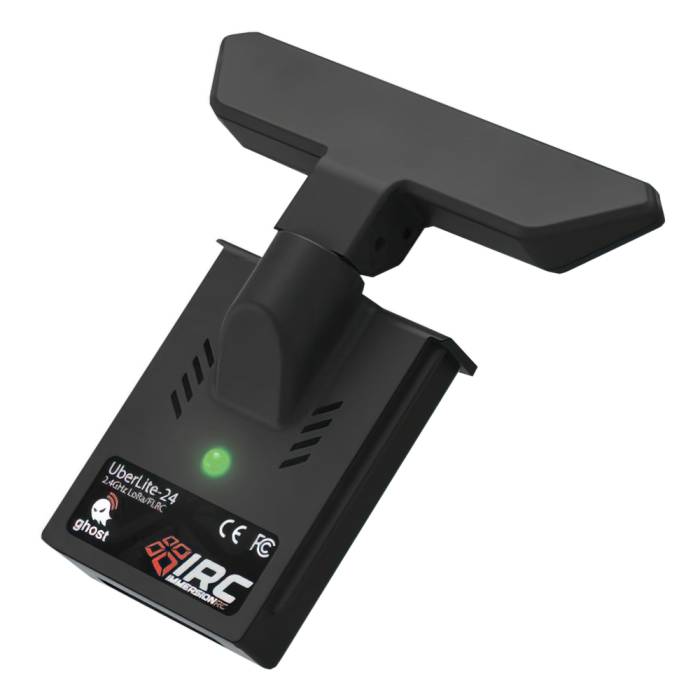

ImmersionRC Ghost Uber Lite 2.4GHz RC Transmitter Module
ImmersionRC Ghost Uber Lite 2.4GHz RC Transmitter Module
About this product
The ImmersionRC Ghost Uber Lite RC Transmitter Module is designed for both reliable control at extreme range, and extremely low latency with a best-in-class frame rate for the Race circuit. This module works perfectly with the Orqa FPV.Ctrl Radio Controller.
When you are ready to take your piloting skills to the next level, this Rc Transmitter will provide the range capabilities you need to achieve the perfect flight. This module is a full range 2.4GHz (LoRa/FLRC) Ghost radio module with 500Hz synchronized frames, integrated foldable antenna, and maximum output power of 350mw. Probably the best radio module ever.
Note: Radio Controller is not included.
Features
- Works perfectly with the Orqa FPV.Ctrl Radio Controller.
- Full range 2.4GHz (LoRa/FLRC) Ghost radio module
- 500Hz synchronized frames for race use
- Full telemetry for 30+km of range
- Integrated Foldable Antenna
2.4GHz And Long Range Capabilities
ImmersionRC is setting a new standard with its Ghost system serving both the needs of Long-Range pilots, Freestylers, and Racers. Easily achieve ranges of 10s of km with equipment light enough, and antennas compact enough, to perfectly accompany your drone into the neighboring country. Since 2.4GHz antennas are relatively small, a directional antenna on the transmitter can easily double the expected range.
Specifications
- Frame Rate: 500Hz (race) 250Hz (purerace), 166Hz (race), 62Hz (normal), 15Hz (long range)
- OpenTx support: 2.3.11 release, or 'high performance' synced version of 2.3.11
- RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
- Item Name: IMMERSIONRC GHOST UBER LITE TX MODULE
- Binding: Bidirectional with confirmation and protocol negotiation
- Firmware: USB Upgradable(with OTA updates for receivers)
- Power Supply: 6V-20V, 1.75W @ 350mW, ~250mA at 7.4V
- Modulation: Chirp Spread Spectrum + Adaptive FHSS
- Uplink Tx Power: 16uW - 350mW (+/- 0.5dB) 3
- Frequency: Full range 2.4GHz (LoRa/FLRC)
- Serial Formats: SBus, GHST, Auto-sense
- Frequency Range: 2406 - 2479MHz
- Telemetry: 30+km of range
- Brand: ImmersionRC
- Antenna: Foldable
Note: All Ghost receivers currently have multiple binding methods. It is recommended to bind via SRXL2 on a standard UART, the Ghost Protocol will be available with the release of OpenTX3.4.
Includes
- 1x ImmersionRC Ghost Uber Lite Tx Module
- Note: Radio Controller is not included.
