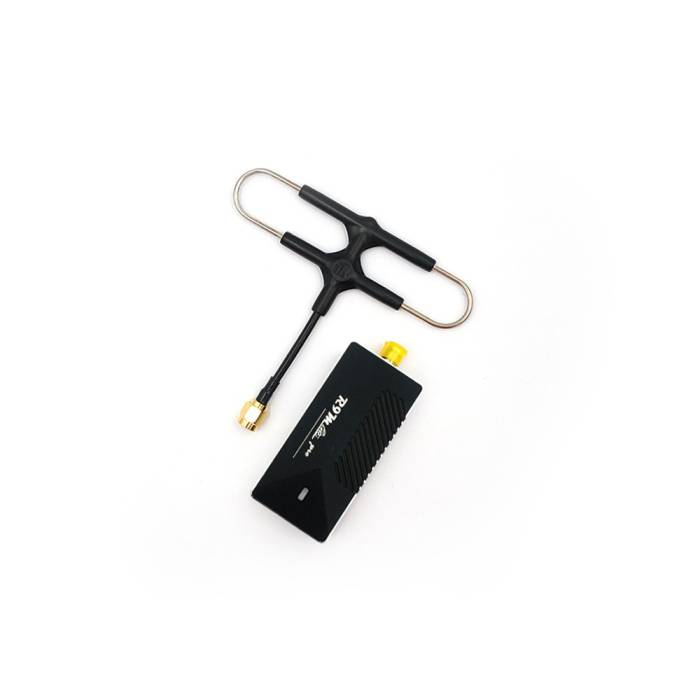

The R9M Lite Pro is the upgraded 900MHz Lite module. It has a high-speed digital interface, supports up to 1W RF power, and is fully encased in a CNC aluminum protective shell which also aids in heat dissipation when using high RF power. Designed with the new ACCESS firmware, it also supports spectrum analyzer functions. The module is perfectly compatible with FrSky new ACCESS radios like Taranis X-Lite PRO and X9 Lite.

Features

• Long-range, low latency, and high precision
• The high-speed digital module interface
• Supports spectrum analyzer function
• Supports up to 1W RF power
• Telemetry data transmission supported
• Antenna detection with accurate SWR indicator
• CNC aluminum protective shell
• Perfectly compatible with ACCESS protocol and new FrSky radio models
• (e.g. Taranis X-Lite PRO and new upcoming models)

Specifications

• Dimensions: 62.4mm × 30mm × 18.4mm (L×W×H)
• Weight: 34g
• Channel: 16CH
• RF Operating Frequency: 868MHz / 915MHz
• RF Power (Non-LBT): 10mW / 100mW / 500mW / 100mW~1W (Self-adaptive)
• RF Power (LBT): Telemetry mode (25mW) / Non-Telemetry mode (200mW / 500mW)
• Compatibility: R9 (ACCESS / ACCST protocol) and TD series receivers

Includes

• 1x R9M Lite Pro
• 1x Super 8 Antenna
• 1x Manual

Downloads

R9M Lite Pro Downloads Page
