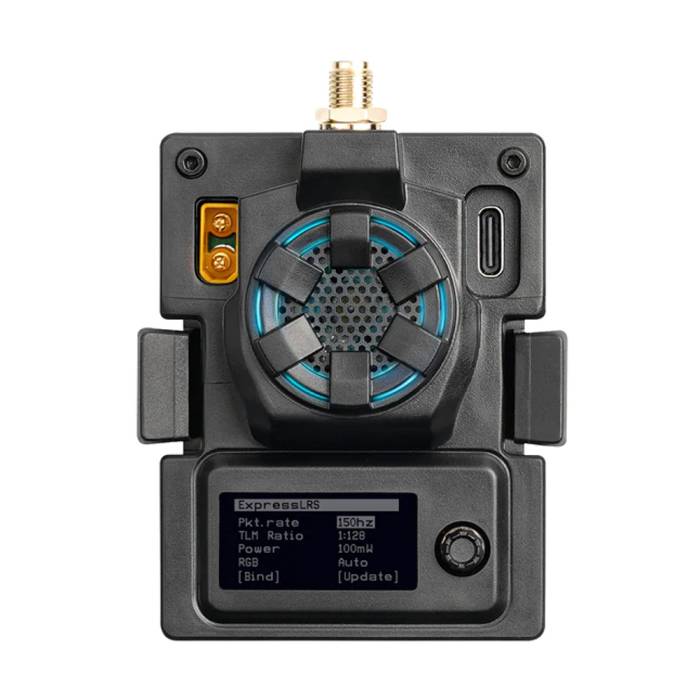

BETAFPV ELRS 2.4GHz Micro TX Module - 1W
The BETAFPV ELRS 2.4GHz Micro TX Module (1W Version) supports all 5D button dimensions based on BETAFPV ELRS V2.0.0 firmware. A new backpack function has been added, allowing wireless communication between ExpressLRS, and other FPV related devices for command and control, or for querying configuration.

About this product

The BETAFPV ELRS 2.4GHz Micro TX Module (1W Version) supports all 5D button dimensions based on BETAFPV ELRS V2.0.0 firmware. A new backpack function has been added, allowing wireless communication between ExpressLRS, and other FPV related devices for command and control, or for querying configuration.

Compared with 500mW versions, this not only has a built-in cooling fan, but also the features a heat sink! This module can work properly in daily use and not need to worry about temperature.

VIDEO: 1 What? BetaFPV 1W ELRS Micro TX Module

Features

  • Built-in Cooling Fan
  • Backpack Function
  • 2.4GHz Frequency
  • ELRS Firmware
  • OLED Screen
  • Heat Sink

Specifications

  • RF Output Power: 25mW, 50mW, 250mW, 500mW, 1W
  • Packet Refresh Rate: 50Hz, 150Hz, 250Hz, 500Hz
  • Recomended Battery: 2S 8.4V
  • Backpack Supported: Yes
  • Frequency: 2.4GHz ISM
  • Input Voltage: 5V-12V
  • Cooling Fan: Built In
  • Output Power: 1W
  • USB Port: Type-C
  • Heat Sink. Yes
  • Port: XT30

Note: Please make sure the VRX also supports backpack function when using the module VRX-backpack function.

When entering OLED menus page with long pressing, the connection between RF TX module and receiver works normally. Please do not change the Pkt Rate, otherwise, you must re-power the receiver.

Includes

  • 1x BETAFPV ELRS 2.4GHz Micro TX module -1W
  • 1x Spare USB data cable (Type-A to Type-C)
  • 1x Micro TX module user manual
  • 1x BETAFPV Moxon antenna
  • Note: Radio Not Included

More Information

SKU 17846
Manufacturer BETAFPV
Frequencies 2.4GHz
UPC (GTIN) 764613343106
Item Returns This item can be returned
