RadioMaster Zorro LE Radio Controller - 4-in-1 Multi / ELRS 2.4GHz
RadioMaster Zorro LE Radio Controller - 4-in-1 Multi / ELRS 2.4GHz
Select options for stock status
About this product

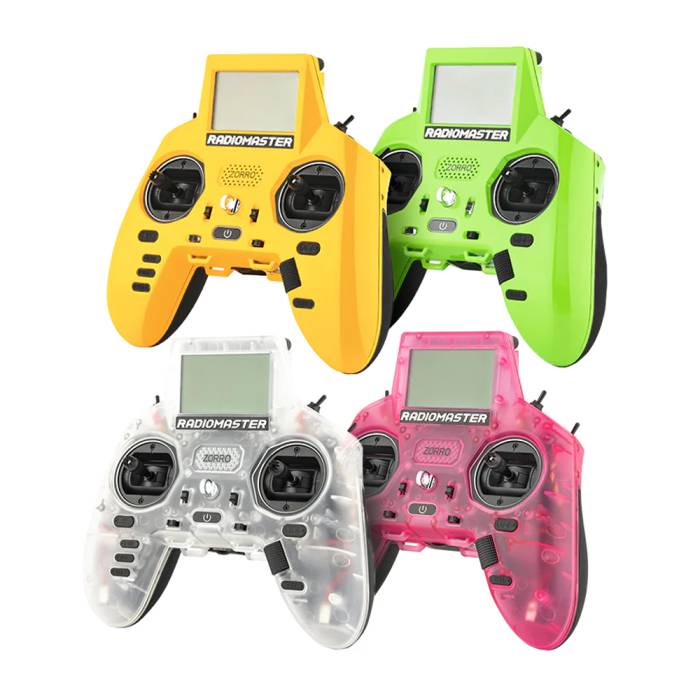

The RadioMaster Zorro LE radio controller features adjustable Hall Gimbals with fantastic durability. Four unique Limited Edition color options give you the look that everyone in the industry is talking about. This radio also features soft grips for a better handle on your FPV flight!
Choose a Receiver Protocol:
- 4-in-1 Multi-Protocol
- ExpressLRS 2.4GHz
Choose a Color:
- Transparent Pink
- Transparent
- Yellow
- Green
Note: GoPro and Mount are not included.
VIDEO: ZORRO MAX Radio Controller | Features with Colorful AG01 MINI Gimbals and CNC Parts
Features
- Limited Edition Colors in Transparent Pink, Transparent, Green, or Yellow
- External Module Bay Supports TBS / ELRS
- Improved Metal Roller for Precise Control
- Supports External 2S Power Supply
- Supports USB-C direct charging
- 18350 Battery Compartments
- Supports OPNTX & EDGETX
- 4-in-1 Multi-Protocol Model
- Ergonomically Designed
- Adjustable Hall Gimbals
- Oversized LCD Screen
- Foldable Antenna
- Soft Grips


Specifications
ELRS 2.4GHZ RADIO CONTROLLER
- Module bay: Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
- Firmware Upgrade method: Via USB or SD card (SD Not included)
- RF power: 250mW (CE and FCC Version will be available)
- Operating system: OpenTX / EdgeTX Compatible
- Control channels: Maximum 16 (Rx dependent)
- Operating frequency: 2.400GHz-2.480GHz
- Colors: Black, Gold, Red, or Lumenier Blue
- Physical dimensions: 170*159*108mm
- Charging: Built-in USB-C Charging
- Display: 128*64 Monochrome LCD
- Operational current: 160mA@8.4V
- Operational voltage: 6.6-8.4v DC
- Battery: 2 x 18350 (Not included)
- Gimbal: Hall-effect AGO1 Mini
- Supported protocols: ELRS
- Internal RF Options: ELRS
- Antenna gain: Folding 2db
- Control distance: TBA
- Weight: 350 grams
- Model: Zorro Max
4-IN-1 MULTI-PROTOCOL RADIO CONTROLLER
- Module bay: Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
- Firmware Upgrade method: Via USB or SD card (SD Not included)
- Operating system: OpenTX / EdgeTX Compatible
- Control channels: Maximum 16 (Rx dependent)
- Operating frequency: 2.400GHz-2.480GHz
- Internal RF Options: 4-in-1 Multi-Protocol
- Supported protocols: Module Dependent
- Physical dimensions: 170*159*108mm
- Charging: Built-in USB-C Charging
- Display: 128*64 Monochrome LCD
- Operational current: 160mA@8.4V
- Operational voltage: 6.6-8.4v DC
- Battery: 2 x 18350 (Not included)
- Control distance: > 2km @ 20dbm
- RF power: 4-in1 20dBm max
- Weight: 350 grams
- Gimbal: Hall-effect
IMPORTANT NOTES
- The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won't need to set up another receiver. If you don't have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
- If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
- Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.
Recommended (Not Included)
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1X RadioMaster Zorro LE Radio Controller (Choose Protocol and Color)
- 1x USB-C Charging Cord
- 1x Screen Protector
- 1x Stickers
- 1x Manual
