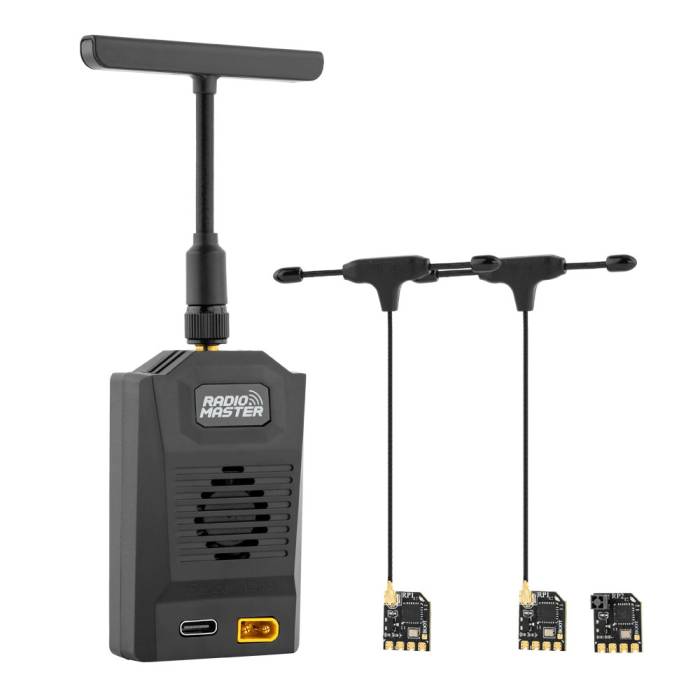

RadioMaster Ranger Nano 2.4Ghz ELRS Module - Starter Combo
RadioMaster Ranger Nano 2.4Ghz ELRS Module - Starter Combo
Back Ordered
About this product
The RadioMaster Ranger Nano 2.4GHz ELRS Module Starter Combo features a nano module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system. This starter combo also includes additional RPI receivers and one RP2 Receiver.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Ranger 2.4GHz ELRS Module | The pinnacle of ExpressLRS module design
Features
- Nano ExpresssLRS 2.4GHz Module
- Nano Adapter for Zorro and More
- High-Efficiency Cooling System
- WiFi and Bluetooth Support
- Max F-1000Hz Packet Rate
- 1W Power Output
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Dimension: 136*42*26mm, 48g (with antenna) / 74*42*26mm, 39g (without antenna)
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- Receivers: Two RP1 Receivers and one RP2 Receiver
- MCU: ESP32(main), ESP8285(aux,as esp backpack)
- Frequency Range: 2400 MHz to 2480 MHz
- XT30 Power supply voltage: DC 6V - 16V
- Maximum packet rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz
- Regulatory Domain: ISM2400
- Item: Ranger Nano Module
- Weight: 48g (with antenna)
- RF chip: SX1281IMLTRT
- Bluetooth support: Yes
- Wifi Support: Yes
T-ANTENNA
- Antenna polarization: vertical/horizontal polarization 
- Type: T-type Omnidirectional Antenna 
- Connector: RP-SMA Male
- Frequency: 2.4GHz
- Weight: 9.5g
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Nano Standard 8pin Socket Module Bay Adapter
- 1x Radiomaster Ranger Nano 2.4Ghz ELRS Module
- 1x Hexagon Socket Screwdriver
- 1x 2.4GHz T Antenna - RP-SMA
- 2x Radiomaster RP1 Receiver
- 1x Radiomaster RP2 Receiver
- 1x Futaba CRSF socket cable
- 3x M2*5 Screws
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 19799 |
---|---|
UPC (GTIN) | 724376345847 |
Manufacturer | RadioMaster |
NDAA Compliant | No |
Expected Date | 2023-08-25 |
Antenna Connector / Length | N/A |
Antenna Frequency | 2.4GHz |
Item Returns | This item can be returned |
