RadioMaster GX15 Radio Controller - ELRS 2.4GHz M2
RadioMaster proudly presents the new GX15 radio transmitter! Available in multiple colors -- designed to inspire and excite.
Share

About this product

The RadioMaster GX15 marks the next era of innovation in high-performance radio controllers. A new perspective for drone racing, FPV flying, and video production, the GX15 prioritizes signal strength and reliability, with dual Semtech SX1281 chips on board. Whether for work or play, the GX15 embodies excellence in drone control. With the top-mounted 3.5" touchscreen, make easy adjustments, even in direct sunlight! Available in multiple colors—designed to inspire and excite.

Note: Batteries are not included.

Features

  • Powerful STM32 H7 Processor
  • Gemini 2.4GHz ExpressLRS for exceptional signal stability
  • 3.5in Color Touchscreen Top-Mounted Display
  • V6 High-Precision Hall Sensor Gimbals
  • Powerful cooling system
  • Built-in Motion Sensor
  • Integrated Dual-Antennas

Specifications

  • Battery: 7.4 V 2-cell Lithium-Polymer / Two 3.7 V 18650 Lithium-Ion cells / 21700 5,000 mAh battery (batteries not included)
  • Model: Radiomaster GX15

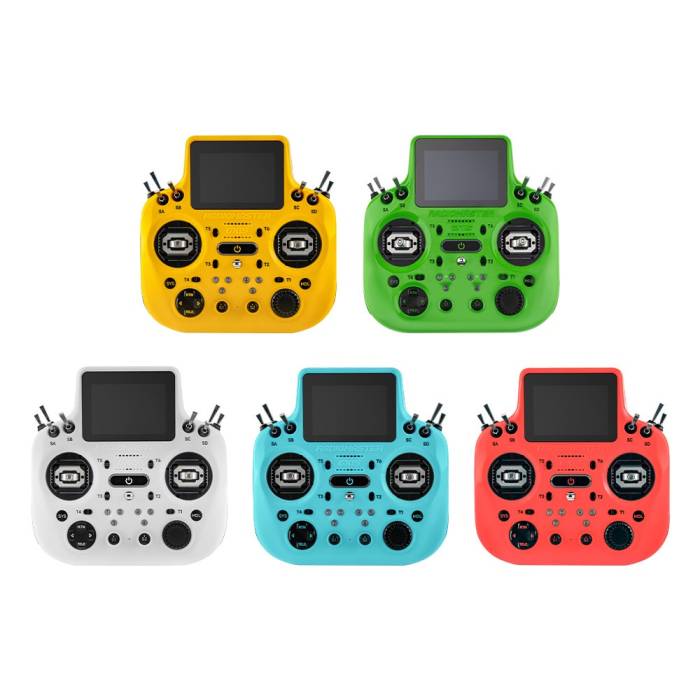

  • Colors: White / Yellow / Red / Green / Blue
  • Voltage Range: 6.6 - 8.4V DC
  • Current: 850mA (at max output power)
  • Frequency: 2.400GHz
  • Internal RF: ExpressLRS 2.4GHz
  • Channels: Max 16 channels (Receiver dependent)
  • Radio Firmware: Edge TX (Transmitter) (requires version 2.12.0 or higher)
  • Built-in Flash Storage: Yes
  • Cooling Fan: Yes
  • Built-in Microphone: Yes (future expansion)
  • Built-in Motion Sensor: Yes
  • MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
  • Display: 2.5-inch IPS touchscreen (480 x 320 resolution)
  • Connectivity: USB-C
  • Gimbals: V6 hall sensor gimbals
  • Gimbal Sticks: M4
  • Upgrade Method: USB-C (UF2)
  • Module Bay: JR-compatible module bay for additional modules
  • Dimensions: 178 x 168 x 81mm
  • Weight: 681g (without battery)

Includes

  • 1x RadioMaster GX15 Radio Controller - ELRS 2.4GHz M2 - (Choose your color)
  • 4x Low-Tension Gimbal Springs
  • 2x Replacement Shoulder Panels
  • 1x RadioMaster Sticker Set
  • 1x Signature Carry Case
  • 1x 1.5 mm Hex Wrench
  • 1x 18650 Battery Tray
  • 4x 6mm Switch Delete Gromets
  • 2x Gimbal Stick Set Screws
  • 1x Screen Protector
  • 1x GX15 Manual
  • 1x Type-C Cable
  • 1x Lanyard
  • 1x Incentory Card

Batteries NOT included.



More Information

SKU G25115CN1Z
Manufacturer RadioMaster
Country of Manufacture China
NDAA Compliant No
Tx Frequencies 2.4GHz
Radio Controller Style Full-Size
