RadioMaster GX15 Max Radio Controller - ELRS 2.4GHz M2

The RadioMaster GX15 MAX marks the next era of innovation in high-performance radio controllers. A new perspective for drone racing, FPV flying, and video production, the GX15 prioritizes signal strength and reliability, with dual Semtech SX1281 chips on board. The GX15 MAX features advanced AG02 CNC Hall Sensor gimbals and a sleek carbon fiber case with leather grips. With the top-mounted 3.5" touchscreen, make easy adjustments, even in direct sunlight! Available in multiple colors—designed to inspire and excite.

Note: Batteries are not included.

• Powerful STM32 H7 Processor
• Gemini 2.4GHz ExpressLRS for exceptional signal stability
• 3.5in Color touchscreen top-mounted display
• AG02 Quad-bearing, CNC Aluminum Hall sensor gimbals.
• Powerful cooling system
• Built-in gyro motion sensor
• Integrated dual-antennas

• Model: Radiomaster GX15 MAX

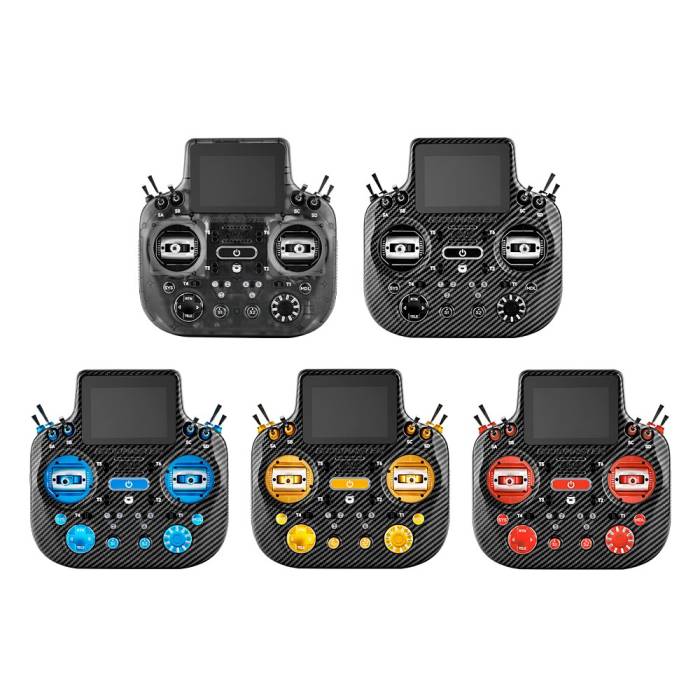

• Colors: Black / Red / Gold / Blue / Transparent Charcoal
• Voltage Range: 6.6 - 8.4V DC
• Current: 850mA (at max output power)
• Frequency: 2.400GHz
• Internal RF: ExpressLRS 2.4GHz
• Channels: Max 16 channels (Receiver dependent)
• Radio Firmware: Edge TX (Transmitter) (requires version 2.12.0 or higher)
• Built-in Flash Storage: Yes
• Cooling Fan: Yes
• Built-in Microphone: Yes (future expansion)
• Built-in Motion Sensor: Yes
• MicroSD card (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
• Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
• Battery: 7.4 V 2-cell Lithium-Polymer / Two 3.7 V 18650 Lithium-Ion cells / 21700 5000 mAh battery (batteries not included)
• Connectivity: USB-C
• Gimbals: AG02 CNC Hall sensor gimbals
• Gimbal Sticks: M4
• Upgrade Method: USB-C (UF2)
• Module Bay: JR-compatible module bay for additional modules
• Dimensions: 178 x 168 x 81mm
• Weight: 725g (without battery)

• Lumenier NAV 3000mAh 1S 18650 Li-ion (2Pcs)

• 1x RadioMaster GX15 MAX Radio Controller - ELRS 2.4GHz
• 1x GX15 Signature Carry Case
• 1x 18650 Battery Tray
• 2x Replacement Shoulder Panels
• 1x Type-C Cable
• 1x Screen Protector
• 1x 1.5mm Hex Wrench
• 4x Low Tension Gimbals Springs
• 2x Gimbal Stick Set Screws
• 1x Lanyard
• 1x RadioMaster Sticker Set
• 1x GX15 MAX Manual
• 1x Inventory Card

Batteries NOT included.
