RadioMaster Bandit 915MHz Moxon Antenna - RP-SMA

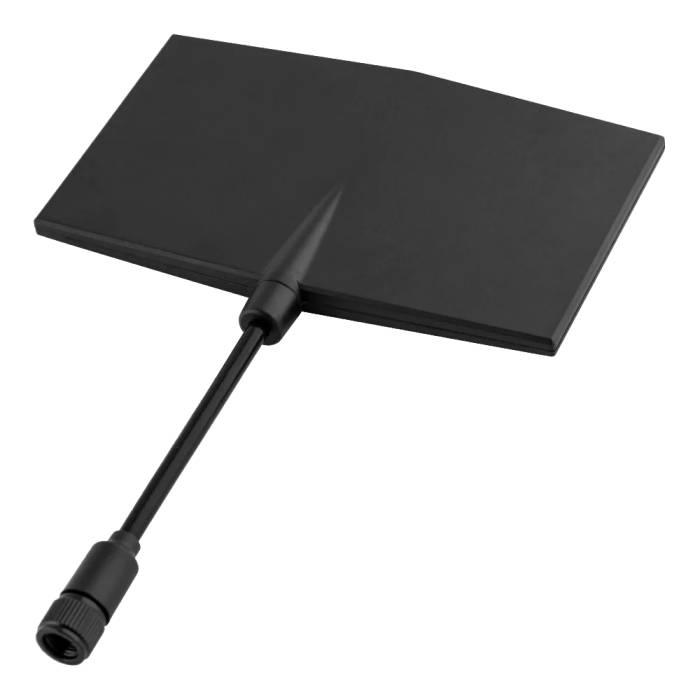

The RadioMaster Bandit Moxon Antenna is a high-gain, high-efficiency directional transmitter antenna with a compact design and rugged housing to protect the internal components. The Bandit Moxon Antenna, with its 80mm length, provides superior interference separation. Utilizing a professionally designed RF PCB substrate and optimized the bandit series the Bandit Moxon antenna is ideal for long-range applications. The Bandit Moxon features a heavy-duty RG402 coax to optimize signal transmission and reduce external interference. The antenna also features a customized 360° swivel RP-SMA socket to allow for position adjustment.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• High gain, high-efficiency directional transmitter antenna
• Compact and rugged housing
• Using professional RF PCB substrate, optimized for traditional MOXON design
• Uses heavy-duty RG402 coax cable and customised 360° swivel RP-SMA socket
• Featuring an 80mm coax cable reduces interference to the transmitter

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• Item: Bandit 915/868MHz Moxon Antenna
• Bandwidth: 860-930MHz
• Polarisation: Linear
• Radiation Direction: Directional
• Beam Width @-3dB: 145°
• Gain: 4.6dBi
• VSWR: >1.5
• Connector: RP-SMA
• Input Impedance: 50Ω
• Dimension: 107*155mm
• Weight: 47.44g

IMPORTANT NOTES

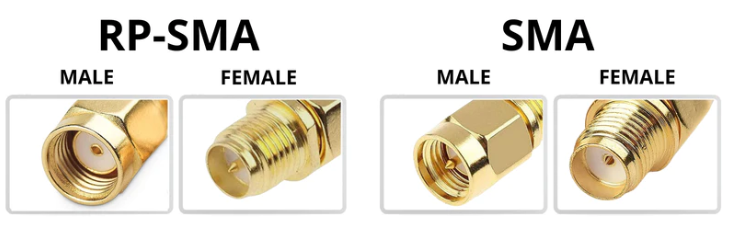

• Please verify your connector to ensure proper connection and function!

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x RadioMaster Bandit 915MHz Moxon Antenna - RP-SMA
