Stan FPV 3" Injected UDP Propeller Guards - Full Conversion Kit

Stan FPV 3" Injected UDP Propeller Guards - Full Conversion Kit

In Stock

Only left for same day shipping. Order now!
Stan FPV 3" Injected UDP Propeller Guards - Full Conversion Kit
TAME THE BEAST! The Stan FPV 3" UDP Guards - Full Conversion Kit allows you to easily convert your current 3" or larger drone into a safe and smooth cinematic flyer! 99% of frames that hold a 3" prop will fit these universal ducted prop guards. This kit comes with Props, Hardware Kit, and other accessories.

About this product

TAME THE BEAST! The Stan FPV 3" UDP Guards - Full Conversion Kit allows you to easily convert your current 3" or larger drone into a safe and smooth cinematic flyer! 99% of frames that hold a 3" prop will fit these universal ducted prop guards. This kit comes with Props, Hardware Kit, and other accessories.

These new injected versions are manufactured for StanFPV by HQ Prop and they are made from very durable polycarbonate. These guards are now nearly indestructible. Aero and sound wave flow was taken into consideration and implemented here, actually REDUCING prop noise! It's literally like magic and one of the best features of this design. The sounds aim up and down, reducing perceived side noise.

This Full Kit comes with 4 guards, props, hardware, and other accessories that are sure to enhance your flight experience. Looking for just the guards? Try the Basic Conversion Kit which comes with guards only.

Note: Do NOT use Thread Locker with these guards.

Video: 5" Inducted UDP Guards

Features

  • Aesthetically pleasing and functional
  • Increases Safety and Efficiency
  • Smoother Flight Performance
  • For Indoor or Outdoor use
  • Noise Reduction
  • Customizable
  • Universal fit
  • Acro-able

HIGHER EFFICIENCY

This set-up uses a 2.5" propeller in place of the 3". This allows the motors to work less with the same performance which enables our propellers to handle a higher load and give better flight times because of increased thrust and efficiency. They more than makeup for the weight of themselves while providing safety and a smoother flight feel. With their highly tuned ducts, the smaller higher pitch prop performs like a smoothed-out version. They can easily be installed or taken off to give you two flight styles on the same drone. Two drones in one!

CINEMATOGRAPHY

Cinewhoop flying anyone?! These convert your current 5" drone into a filmmaking BEAST! Bring new life to that old quad that's been on the wall for a year now or plan a completely new build specifically around them! They fit the oldest and newest of frames like the "Alien", "Blastr", "Apex", "Super G", Marmotte, Badger, Goat, Remix, Aquaphobe, Johnnys Frames, and MANY MORE!

Note: Placing rubber spacers between the arm and guard allows you to dial in the perfect height and/or add clearance. When tightened, the bolts are then recessed in the guard to give you BUILT-IN non-metal landing skids so you can effortlessly slide along.

Specifications

  • Material: Injected Durable HQProp Material
  • Mounting: 9mm-12mm M2 four-bolt pattern
  • Weight: 10.2g (Per Duct)
  • Color: HQ Smoke Grey
  • Length: 3.05"
  • Height: 1.42"

COMPATIBILITY

  • Motors: Any motor using a standard 9mm-12mm M2 four-bolt pattern like 1106 4500kv, 1407 4130kv, 2203 3390kv
  • Recommended Propeller: HQ Prop T2.5x2.5x3
  • Frame: 3" or larger

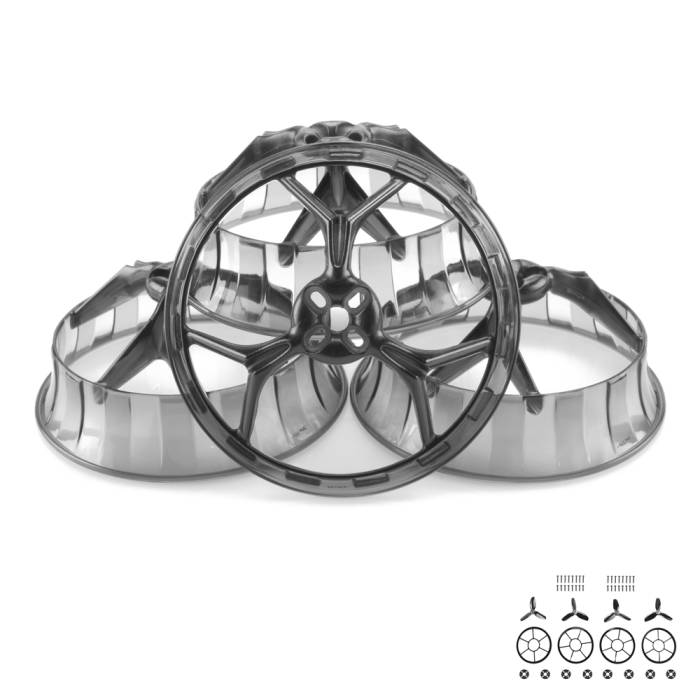

Includes

  • 1x Stan FPV 3" Injected UDP Guards (Set of 4)
  • 1x HGProp T2.5x2.5x3 Propeller (Set of 4)
  • 4x 2mm Rubber Spacers
  • 4x 1mm Rubber Spacers
  • 1x Hardware Kit

More Information

SKU 17243
UPC (GTIN) 764613340891
Manufacturer StanFPV
