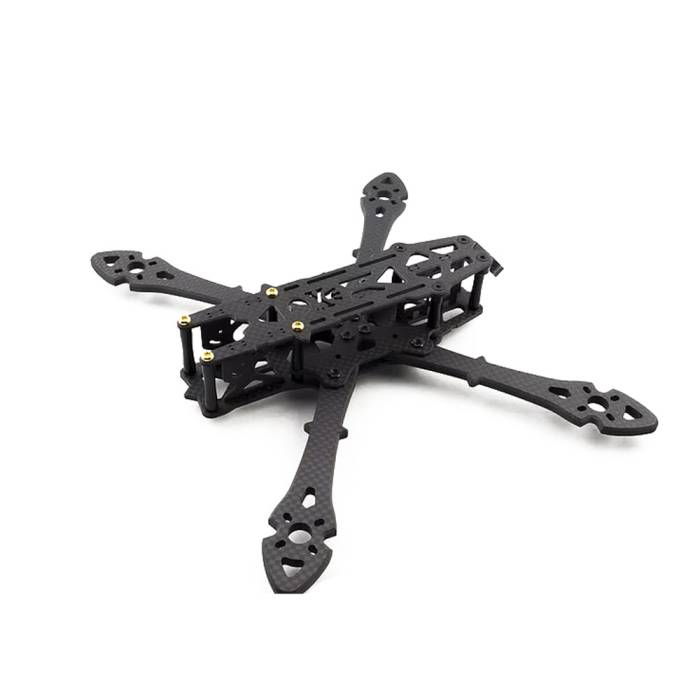

PIRAT Sloop V3 Frame (5", 6", 7")
Introducing FPV Pilot J-True's favorite frame from the French FPV brand PiratFrames!

About this product

Introducing FPV Pilot J-True's favorite frame from the French FPV brand PiratFrames!

Get a precise flying experience with the PIRAT Sloop 5", 6", 7" Frame! Crafted with high-quality carbon fiber and aluminum parts, the Sloop is a tough frame that focuses on excellent CG balance to give smooth, super-tunable flight. Custom made to fit the Caddx Digital HD System.

Note: GoPro mount and electronics NOT included


PIRATFrames worked on a perfect balance for this frame for the customers to enjoy a smooth and better flight.

Going digital? You can mount the Caddx Digital HD System to this frame.

You can choose between squished or True-X geometry with the same arm set.
J-true recommends the squished geometry for the Sloop frame.
The Hook and the Sloop V3 share the same arms.

A special cross plate to increase stiffness and prevent breaks.

PIRATFrames historical vertical plate & new flexible antenna support.
mount your RX and VTX vertically for easy access.
Use flexible support to keep your antenna safe.
You also can choose to get the additional Caddx Digital HD System to integrate it perfectly and safely into the frame.

Get ready to say goodbye to stuck hex screws! it's a big change, try it and you'll love it!
All our frames are delivered with full T10 Torx screw sets and a Torx key.
(including motor screws set)

We craft from strong materials :
the carbon of course but also custom-made screws & aluminum parts.
(12.9 steel, 7075 aluminium & T300 carbon)


  • 30x30 stack
  •  Mini camera size (predator mini like / 22mm width)
  • Chamfered Full 3K T300 carbon
  • 7075 T6 aluminum custom standoff
  • Full T10 Torx 12.9 steel screw set.
  • 5mm arms, 2.5mm bottom & top plate
  • 27mm height for your stack.


  • 4 x 5mm arms
  • 1 x 2.5mm bottom plate
  • 1 x 2.5mm top plate
  • 2 x 1.5mm camera plate
  • 1 x 2mm cross plate
  • 1 x printed antenna mount
  • 8 x 6061 aluminum custom washers
  • 4 x 7075 aluminum custom 28mm standoffs
  • 4 x 7075 aluminum custom 21mm standoffs
  • 8 x black steel locknuts
  • 8 x M3/8mm countersunk Torx screws
  • 4 x M3/12mm countersunk Torx screws
  • 4 x M3/15mm countersunk Torx screws
  • 4 x M3/10mm gold mushroom head Torx screws
  • 16 x M3/8mm mushroom head Torx screws
  • 2 x 20mm/220mm lipo straps
  • 1 x silicon grommets
  • 1 x silicon lipo pad
  • 4 x foam custom diamond landing pads


3D Parts

More Information

SKU 14795
Manufacturer PIRAT
