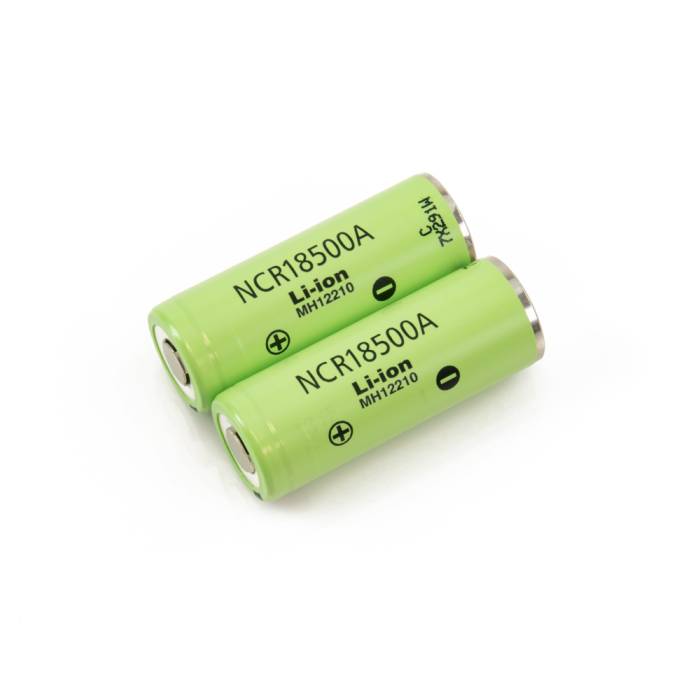

Panasonic 18500 2040mAh Li-ion Battery (2pcs)
A pair of 18500 batteries, perfect for the Taranis X-Lite Radio.

About this product

The Panasonic NCR18500 is a lithium-ion cell intended for use in 18500 battery packs. It can power a wide range of devices, but in the drone world, 18500 batteries power the new Frsky X-Lite Radio.

These genuine Panasonic batteries are highly regarded for performance and safety.

Specifications

  • Model name: NCR18500
  • Manufacturer: Panasonic Industrial Devices
  • Country of Manufacture Japan
  • Style: Flat Top
  • Type: Lithium Ion

SIZE

  • Weight: 34.00 g
  • Diameter: 18.20 mm
  • Height: 49.40 mm

VOLTAGE

  • Voltage, charge max. 4.20 V
  • Voltage, nominal 3.60 V
  • Voltage, discharge end 2.50 V

CAPACITY

  • Capacity, max. 2040mAh

CURRENT

  • Constant charge current, max. 1.33 A
  • Max. continuous discharge current 7.60 A
  • Peak discharge theoretic, 4 sec 13.3 A
  • C-rate (charge, max.) 0.67 C
  • C-rate (discharge, max.) 3.8 C

POWER

  • Watts (charge, max.) 4.788 W
  • Watts (discharge, max.) 27.36 W

ENERGY

  • Energy, max. 7.20 Wh
  • Density volumetric theoretic 561 Wh/L
  • Density gravimetric theoretic 211.76 Wh/kg
  • E-rate (charge, max.) 0.67 E
  • E-rate (discharge, max.) 3.8 E
  • Standard charge 2 hours

Includes

  • 2x Panasonic 18500 2040mAh Li-ion Batteries

No Air Shipping

Please note that shipping regulations have recently changed for batteries. We are no longer able to ship lithium polymer batteries via any Air shipping method. This includes all international destinations outside the USA. In the USA, you will only be presented with ground-based shipping options if your order contains a lipo battery. If you need to receive your order quickly and would like to ship with one-day or two-day shipping options, consider splitting your order into an order of only batteries (shipping ground) and everything else.

Due to IATA shipping regulations, batteries shipping AIR must have a charge of less than 30%. A lithium polymer battery that stays in this state for long periods of time will become damaged. For this reason, GetFPV does not ship batteries using Air shipping.

If you want to ship batteries via air shipping, you can set up an account through our freight forwarding partner MyUS.com. Follow the instructions on their website to learn more.

Warning

Only use a Lithium battery charger. Always monitor the battery while charging. Always store the battery in a safe, nonflammable container. Never overcharge or over-discharge the battery. Never damage, puncture, short circuit, or modify the battery. Never use a damaged Lithium battery.

More Information

SKU 8718
Manufacturer Panasonic
UPC (GTIN) 736952006554
NDAA Compliant No
Voltage / Cell Count 3.7 Volt (1 Cell)
Battery Capacity (mAh) 2040
C-Rating Not Rated
Discharge Plug None
