ORQA FPV.One Battery
ORQA FPV.One Battery
Out of Stock
About this product

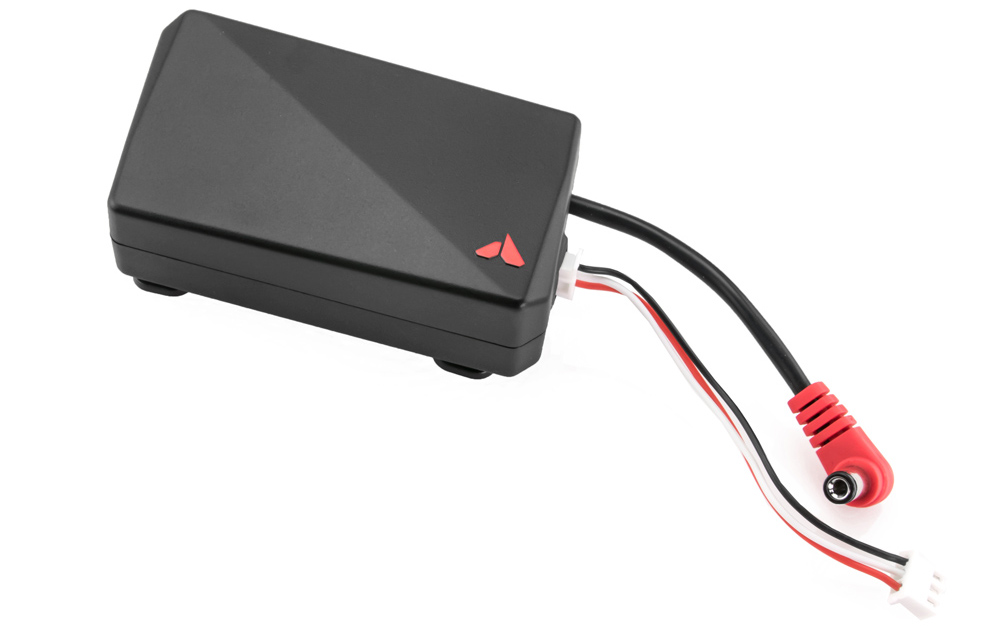

The ORQA FPV.Battery was designed to power your ORQA FPV.One OLED FPV Goggles. Housing two 18650 Li-ions, this rechargeable battery pack uses a standard barrel plug to power many common FPV goggles. The top of the unit has four LEDs that display the voltage level, so you always know how long you have left till you need to charge.
Specifications
- Power supply: 6-10VDC (2S Li-ion Battery)
- Battery connector: 2.1 x 5.5mm barrel connector
- Weight: 114g
- Capacity: 2000Mah
Charging the Battery
The Orqa Battery should be recharged once the battery voltage is low.
To charge the battery you will need the battery charger with the Li-ion or Li-Po charging profile. The best way to recharge the battery is the “balance charge” option. That means that the charger will make sure that the cells inside the battery will always be charged to the same voltage. Having the cells balanced will ensure the long-time optimum battery performance.
Note: The 18650 Li-ion batteries inside the pack are not removable. Please recharge them through the included balance connector.
The optimal charging current should be set to 1.0A max. The battery should be fully charged to 8.4V (4.2V per cell). The fully charged battery will have all four bars lit.

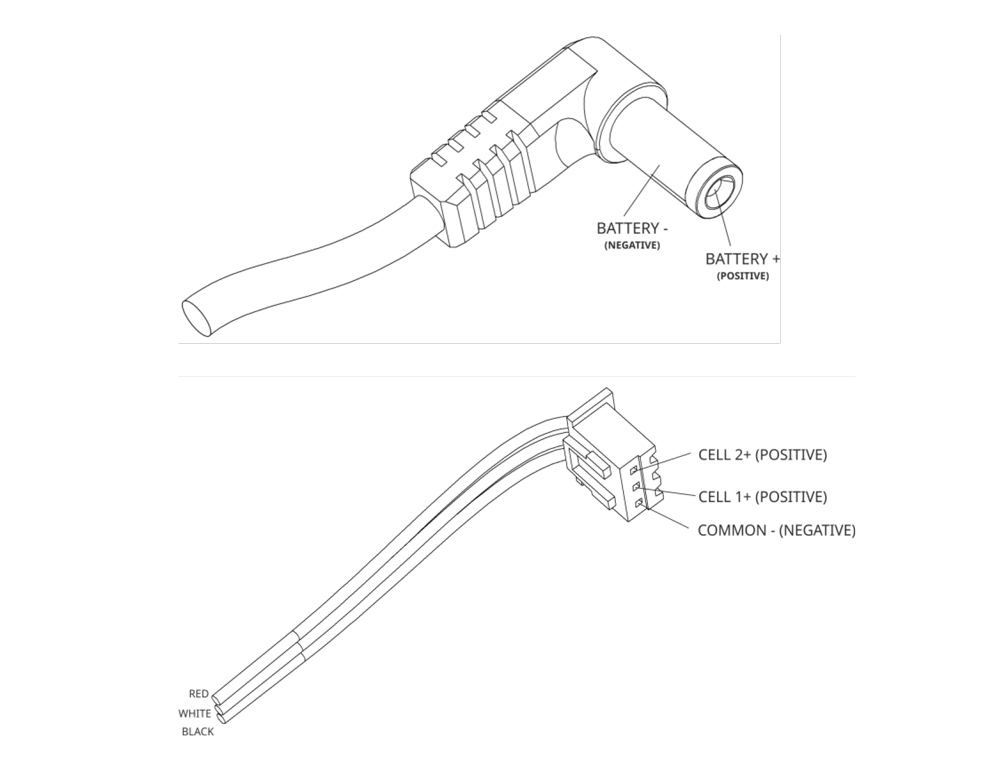

The correct battery connectors polarity is shown in the images below.
Video
Includes
- 1 x ORQA FPV.Battery
No Air Shipping
Please note that shipping regulations have recently changed for batteries. We are no longer able to ship lithium polymer batteries via any Air shipping method. This includes all international destinations outside the USA. In the USA, you will only be presented with ground-based shipping options if your order contains a lipo battery. If you need to receive your order quickly and would like to ship with one-day or two-day shipping options, consider splitting your order into an order of only batteries (shipping ground) and everything else.
Due to IATA shipping regulations, batteries shipping AIR must have a charge of less than 30%. A lithium polymer battery that stays in this state for long periods of time will become damaged. For this reason, GetFPV does not ship batteries using Air shipping.
If you want to ship batteries via air shipping, you can set up an account through our freight forwarding partner MyUS.com. Follow the instructions on their website to learn more.
Warning
Only use a Lithium battery charger. Always monitor the battery while charging. Always store the battery in a safe, nonflammable container. Never overcharge or over-discharge the battery. Never damage, puncture, short circuit, or modify the battery. Never use a damaged Lithium battery.
More Information
| SKU | 12896 |
|---|---|
| Manufacturer | Orqa |
| UPC (GTIN) | 736952003515 |
| NDAA Compliant | No |
| Voltage / Cell Count | 7.4 Volt (2 Cell) |
| Battery Capacity (mAh) | 2000 |
| C-Rating | Not Rated |
| Discharge Plug | Barrel |
| Item Returns | This item can be returned |
