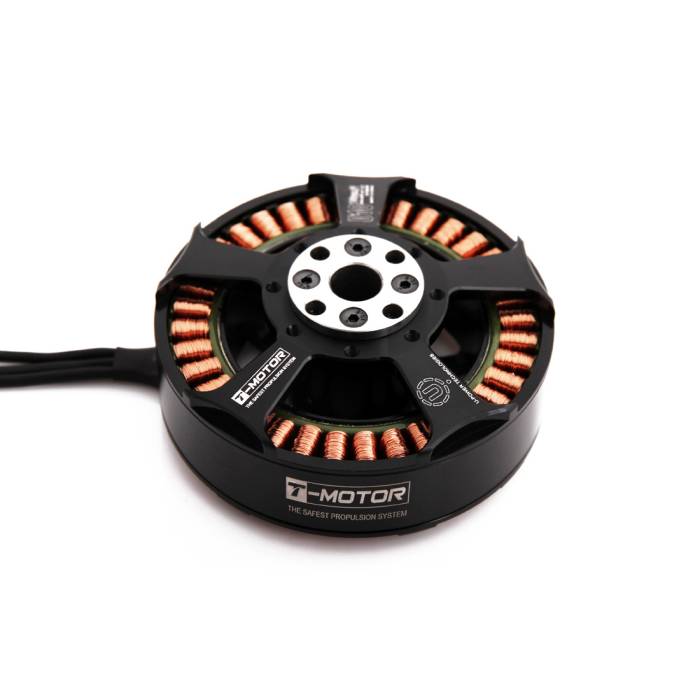

Tiger Motor U10 100kv U-Power Professional Motor
Tiger Motor U10 100kv U-Power Professional Motor
About this product
The U10 Pro series motor by Tiger Motors is the ultimate heavy-lift multi-rotor motor. This motor shines in efficiency and quality, giving you the longest flight times possible. The motor features a custom weather-sealed housing, enabling your aircraft to fly even in poor weather conditions.
This motor is designed for large scale multi-rotor platforms looking to lift DSLR sized gear. A 26"-29" prop is reccomended to fly with this motor supporting 6-12s battery voltage.
Specifications
KV...................................................................................................................100
Configuration......................................................................................36N42P
Shaft Diameter........................................................................................15mm
Motor Dimensions (Dia.*Len).............................................Φ86.8×35.5mm
Weight(g)....................................................................................................400g
ldle current(10)@10v(A)............................................................................1.4A
No.of Cells(Lipo).....................................................................................6-12S
Max Continuous current(A)180S...............................................................35A
Max Continuous Power(W)180S.........................................................1500W
Max. efficiency current.................................................................(3-20A)>89%
Internal resistance.................................................................................112mΩ
More Information
SKU | 1733 |
---|---|
UPC (GTIN) | 652118483420 |
Manufacturer | Tiger Motors |
NDAA Compliant | No |
Popo Compatible | No |
Item Returns | This item can be returned |
