Diatone RGB LED Board (12V)
$2.99
$2.09
Out of Stock
Only left for same day shipping. Order now!
Diatone RGB LED Board (12V)
A Simple Low Cost LED Board!
About this product

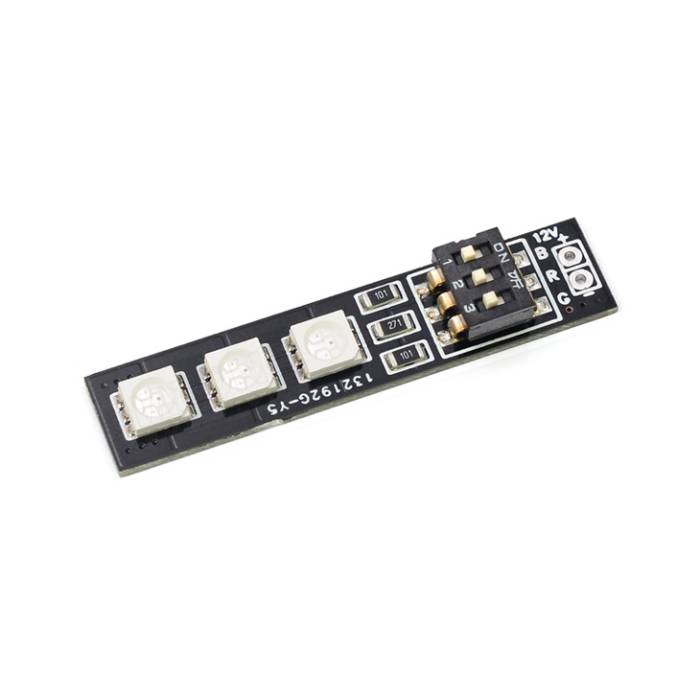

Diatone RGB LED Board comes with three RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.
Features
- Comes with a 0.3m long cable, users can cut it to a suitable length
- Be ware of the positive and negative poles, as well as the insulation
- Switch the related codes to ON, seven colors are selectable
- The input is in a range of 12V DC, can be powered by 4S Lipo
Specifications
- Voltage Input: 12V
- Size: 47 x 10mm
- Weight: 2g
Dip Switch Settings for Colors
| Color | Dip Switches | |||
| B | R | G | ||
| Blue | ON | OFF | OFF | |
| Red | OFF | ON | OFF | |
| Green | OFF | OFF | ON | |
| Magenta | ON | ON | OFF | |
| Cyan | ON | OFF | ON | |
| Yellow | OFF | ON | ON | |
| White | ON | ON | ON | |
More Information
| SKU | 4496 |
|---|---|
| UPC (GTIN) | 652118487503 |
| Manufacturer | Diatone |
| Country of Manufacture | China |
| NDAA Compliant | No |
