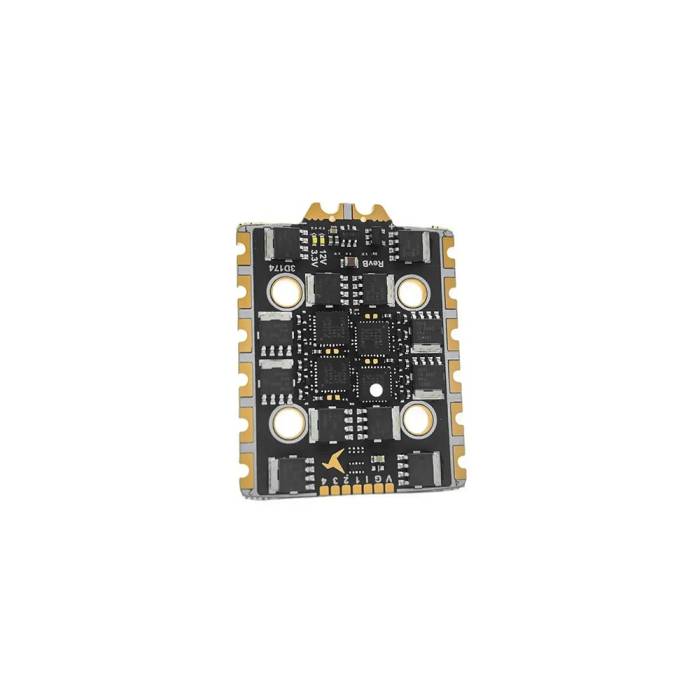

NewBeeDrone Hummingbird 200 RaceSpec 80A 3-6S AM32 ESC - 20x20

The NewBeeDrone Hummingbird 200 RaceSpec 4-in-1 ESC is a compact, race-tuned 20x20 ESC engineered for the brutal demands of 5” FPV racing. Developed in collaboration with pro pilot Kyle Buell (Twidgit), it directly addresses real pain points racers face—overheating MOSFETs, pad failures after crashes, and oversized ESCs that don’t fit low-profile frames. Powered by an AT32F421 MCU with integrated gate driver, the ESC runs smooth, responsive AM32 firmware, giving racers reliable performance and open-source configurability in a compact footprint.

VIDEO: Introducing HummingBird® 200 and 305 Flight Controller Stacks

• Sustains 80A continuous current for up to 10 seconds and 100A bursts
• 3D motor pad structure wraps around the board and provides a strong solder bond
• Onboard dual 400W TV S diodes provide effective built-in surge protection
• AM32 firmware offers reliable open-source configurability

• Input Voltage: 3–6S LiPo
• Continuous Current for 10 seconds: 80A per channel
• Burst Current: 100A (up to 3 seconds)
• Firmware: AM32
• MCU: AT32F421 with built-in gate driver
• TVS Protection: 2x onboard TVS diodes (400W each)
• Motor Pads: 3D structure – top / bottom / side solderable
• PCB: 6-layer, 3oz copper, blind vias, gold-plated finish

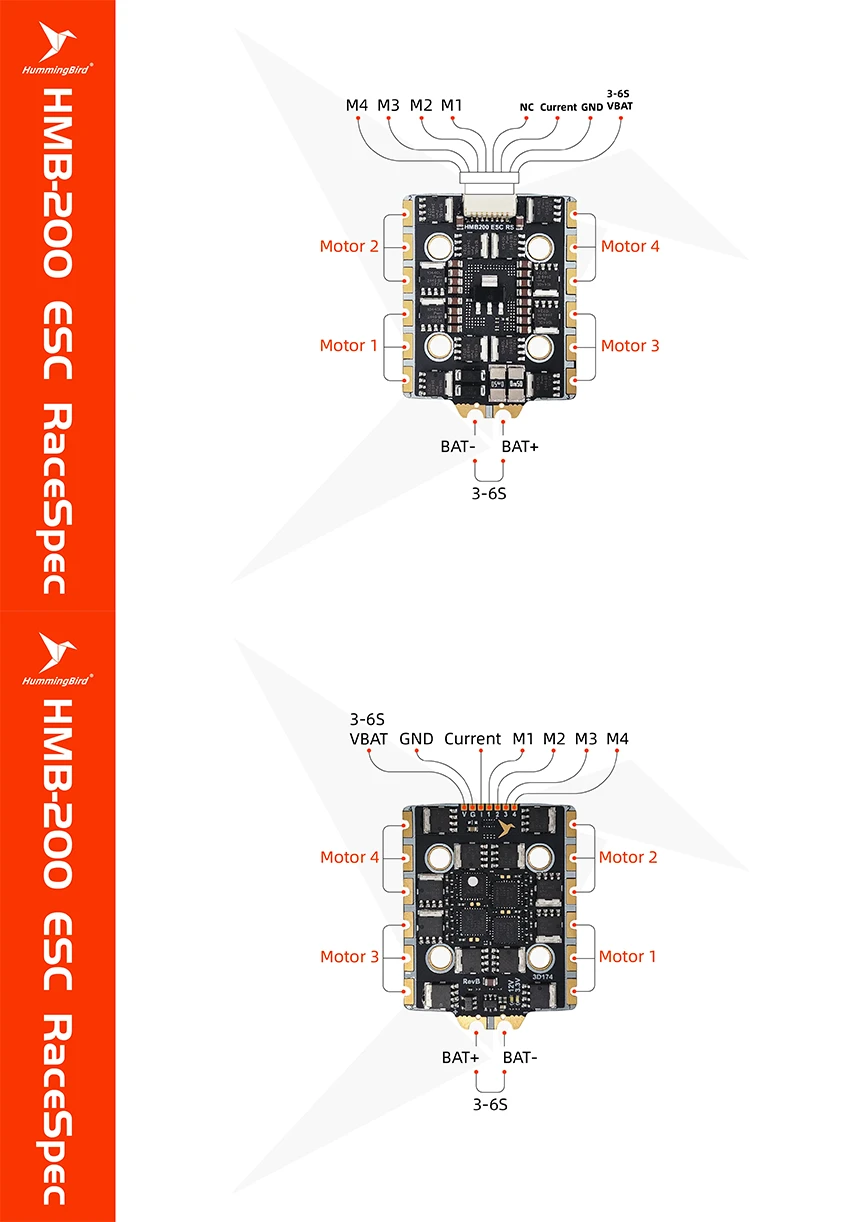

• Signal Connector: 8-pin JST-SH 1.0
• Power Pads: Reinforced BAT+ / BAT– for high-current builds
• Mounting Pattern: 20x20mm (M3 holes)
• Dimensions: 35 x 45 mm (including solder pads)
• Weight: ~13.9g (without wires or capacitors)

• User Guide
• 3D Design Files (STEP)

• 1x Hummingbird 200 ESC RaceSpec 80A 3-6S AM32 20x20
• 5x Grommet
• 1x 14AWG power cable
• 1x XT60 plug
• 1x 8Pin 100mm silicone cable for FC connection
• 1x 1000uf capacitor
• 2x Heat shrink for capacitor
