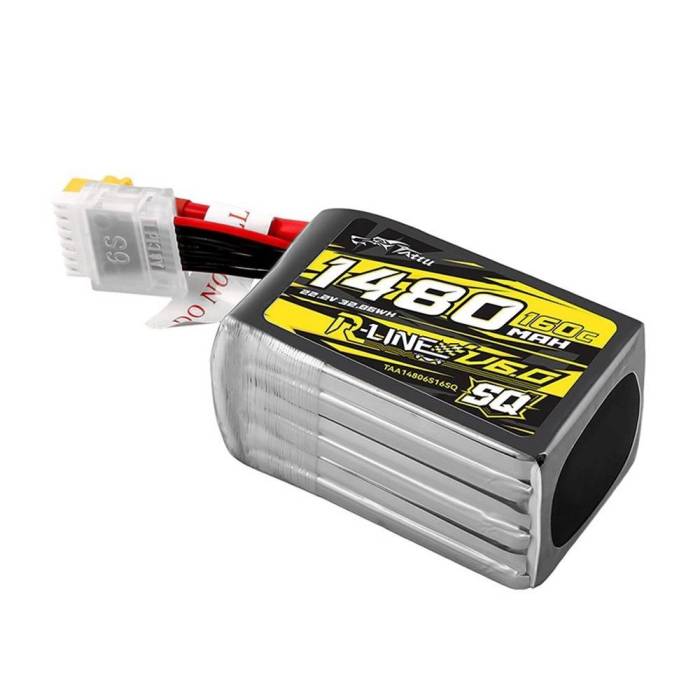

Tattu R-Line Version 6.0 SQ 1480mAh 160C 6S 22.2V LiPo Battery - XT60
In Stock
About this product
The Tattu R-Line Version 6.0 SQ 1480mAh 160C 6S 22.2V LiPo Battery - XT60 is now out with its enhanced capacity, reduced internal resistance, and lower temperatures upon landing. R-Line batteries are engineered for peak performance and offer diverse versions tailored to meet the specific demands of various FPV racing events. With a new lithium salt formula and semi-solid electrolyte, the battery reaches new heights of performance.
VIDEO: Introducing Tattu R-Line V6.0
Features
Higher Energy Density, Safer Design
With a new lithium salt formula and semi-solid electrolyte, the battery reaches a volumetric energy density of 316Wh/L (+26%) and a gravimetric energy density of 160Wh/kg (+17%). Reduced liquid content also means better safety and longer battery life.
Stable Power with 3D Conductive Tech
A combination of conductive graphite, carbon nanotubes, and graphene builds a solid 3D network, allowing efficient and steady high-current output. Power remains stable even during intense bursts.
Faster Response with Nano Materials
Nano-particle material and porous electrode structure shorten ion diffusion paths and reduce internal resistance (IR) by 20%, enabling quicker throttle response and stronger bursts of power.
Stronger Structure, Better Durability
The improved internal design enhances heat dissipation and impact resistance. Whether you’re crashing in freestyle or pushing hard in a race, R-Line V6 stays dependable.
Specifications
- Dimensions: 69.5mm x 42mm x 36.5mm (L x W x H)
- Configuration: 6S / 22.2V / 6 Cells
- Minimum Capacity: 1480mAh
- Net Weight (±20g): 220g
- Discharge Rate: 160C
- Charge Plug: JST-XHR
- Discharge Plug: XT60
Includes
- 1x Tattu R-Line Version 6.0 SQ 1480mAh 160C 6S 22.2V LiPo Battery - XT60
No Air Shipping
Please note that shipping regulations have recently changed for batteries. We are no longer able to ship lithium-polymer or lithium-ion batteries via any Air shipping method. This includes all international destinations outside the USA. In the USA, you will only be presented with ground-based shipping options if your order contains a battery. If you need to receive your order quickly and would like to ship with one-day or two-day shipping options, consider splitting your order into two: one for batteries (shipping via ground) and the rest.
Due to IATA shipping regulations, batteries shipping by AIR must have a charge of less than 30%. A lithium-polymer or lithium-ion battery that stays in this state for long periods will become damaged. For this reason, GetFPV does not ship batteries using Air shipping.
If you want to ship batteries via air shipping, you can set up an account through our freight forwarding partner MyUS.com. For more information, follow the instructions on their website.
Warning
Only use a Lithium battery charger. Always monitor the battery while charging. Always connect the balance cable while charging the battery. Always store the battery in a safe, nonflammable container. Never overcharge or over-discharge the battery. Never damage, puncture, short-circuit, or modify the battery. Never use a damaged Lithium battery.
More Information
| SKU | 23447 |
|---|---|
| UPC (GTIN) | 889551123525 |
| Manufacturer | Tattu |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Battery Chemistry | LiPo |
| Battery Capacity (mAh) | 1480 |
| Voltage / Cell Count | 22.2 Volt (6 Cell) |
| Discharge Plug | XT-60 |
| C-Rating | 160 |
