SpeedyBee Nano 2.4GHz ELRS Receiver

The Speedybee Nano 2.4GHz ELRS Receiver is an advanced open-source RC system offering long range, low latency, high update rates, and many useful features. It operates on 2.4GHz, offering exceptional range and sensitivity in a lightweight design, which is ideal for any build.

• Built-in Wi-fi: To turn on, wait for 60 seconds after powering on or long press button for 3 seconds.
• Light indicators:

  • Double red blinking - binding
  • Slow red blinking - powering up but unlinked, no packages received from the transmitter
  • Solid red - receiver is connected, with signal received
  • Fast red flashing - Wi-Fi is turned on, and updating via Wi-Fi is available

• MCU: SX1281+ESP8285
• Frequency: 2.4GHz

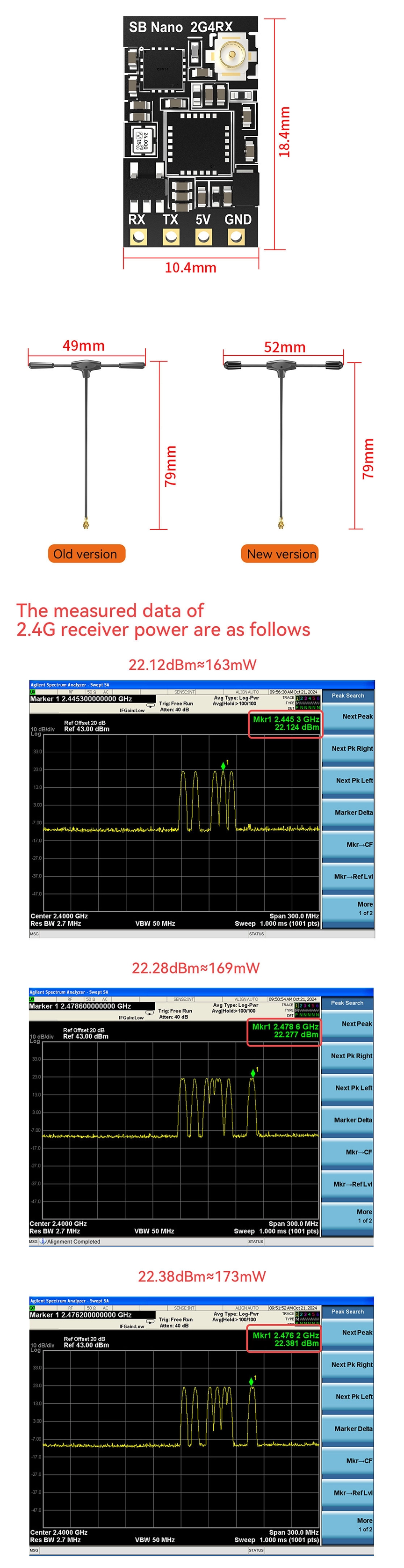

• Antenna: T-antenna (49*79mm, 0.8g;52*79mm, 0.9g)
• Power: 100mW
• Input voltage: 5V
• Antenna connector: IPEX1
• Weight: 0.7g (without antenna)
• Dimensions: 10.4mmx18.4mm
• Firmware: SpeedyBee Nano 2.4GHz RX 3.5.6

• 1x SpeedyBee Nano 2.4GHz ELRS Receiver
• 1x Antenna
