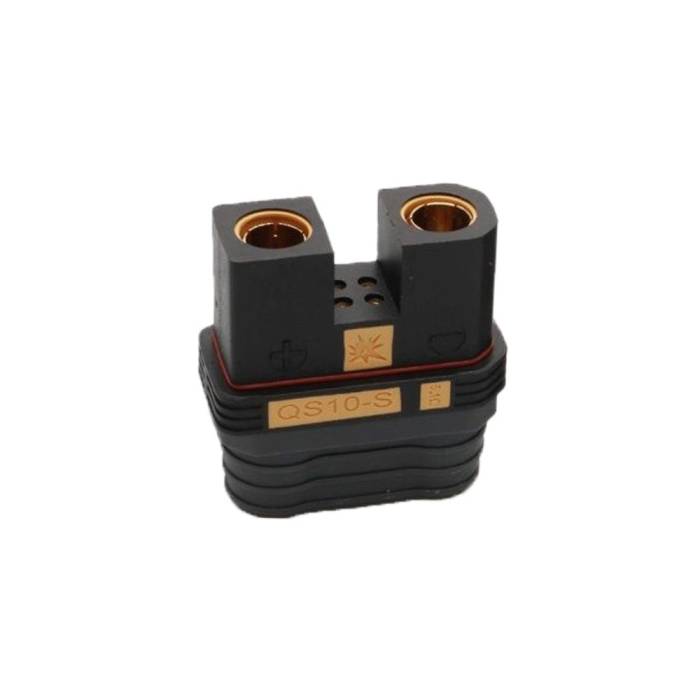

QS10-S 180A Anti-Spark Connector - Female

The QS10-S 180A Anti-Spark Connector - Female is a high-quality connector for extreme amp draw. Designed for secure and efficient power delivery. With its durable construction and reliable anti-spark design, it ensures a safe and stable connection for high-current, up to 180A applications.

Note: This is the Female version of the plug. To complete the connection requires both the Male & Female connectors.

Find the QS10-S 180A Anti-Spark Connector - Male Here

• High-Quality Construction
• High-Current Capability
• Current rating at 180A
• Anti-Spark Technology

• Connector name: QS10-S
• Max current: 240A
• Rated current:180A
• Contact resistance: 0.3mΩ
• Flame rating: UL94-V0
• Insulation material: PA
• Rated voltage: 500V
• Wire range: 4awg-10awg
• Working temperature: -30 ℃ to -150 ℃
• Recommended using times: 1000 times
• Weight: 56.6g

• 1x QS10-S 180A Anti-Spark Connector - Female
