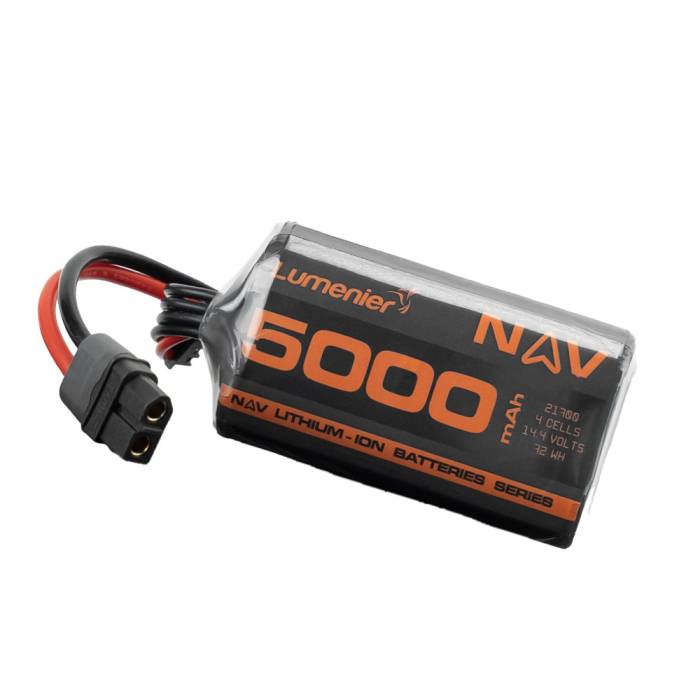

Lumenier NAV 5000mAh 4S 21700 Lithium-Ion Battery - XT60
In Stock
About this product
The Lumenier NAV 21700 Lithium-Ion Battery series was specially designed for long-range pilots seeking unparalleled performance. Lithium-ion batteries offer a remarkable advantage with their consistent discharge rate, providing longer flight times than Lithium Polymer alternatives. These batteries are ideal for lower amp draw drones, planes, radios, and long-range applications, maximizing your flying experience. With features like temperature-resistant spacers, high-quality components, and a lightweight design, these batteries stand out from the rest.
Why choose Lumenier NAV Lithium-Ion batteries?
Lumenier Lithium-ion (Li-ion) batteries offer many advantages over lithium polymer (LiPo) batteries, providing longer flight times, reduced weight, higher energy density, and easier maintenance. Li-ion batteries are often safer and more durable for FPV drone enthusiasts, offering extended flight sessions and lower maintenance requirements. In contrast, LiPo batteries are favored for their ability to deliver high burst power output, which makes them suitable for racing and acrobatic maneuvers. The choice between the two battery types in the FPV drone world depends on the specific goals of the pilot, with Li-ion batteries offering a balance of endurance, performance, and reliability.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
Features
- Suitable for drones, planes, radios, and other long-range applications
- Each cell has been rigorously QC tested to ensure the best quality
- Professional look and feel, all black wrap + black connectors
- Best of Lithium-Ion technology for extended flight times
- Temperature-resistant spacers to prevent heat transfer
- Lightweight design, much lighter than LiPo alternatives
- Available in various configurations: 1S - 6S
- Double protective wrap for extra durability
- High-quality components for reliability
- Designed for long-range pilots
- High-performance 21700 cells
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Battery Specifications
| WATT HOURS | 18.0 WH |
| CONNECTOR | XT60 |
| LENGTH | 85 mm |
| WEIGHT | 340 g |
| HEIGHT | 45 mm |
| WIDTH | 45 mm |
| VOLTS | 14.8 |
| mAh | 5000 |
Cell Specifications
- Cell Shape: Cylindrical
- Diameter: 21.45±0.10(mm)
- Height: 70.65±0.15(mm)
- Weight: ±72g (Per Cell)
- Characteristic: Li-ion
- Capacity: 5000mAh
- Rated Voltage: 3.6V
- Typical Resistance Value: <15 mΩ
- Discharge Cut-off Voltage: 2.5V
- Charging Cut-off Voltage: 4.2V
- Rated Charging Current: 2.5A
- Maximum Charge Current: 10.0A
- Continuous Discharge Current: 35A @80℃ cutoff (20A without temperature cut)
- Burst Discharge Current: 90A
- Operating Temperature Range: -20℃~75℃
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Includes
- 1x Lumenier NAV 5000mAh 4S 21700 Lithium-Ion Battery - XT60
No Air Shipping
Please note that shipping regulations have recently changed for batteries. We are no longer able to ship lithium-polymer or lithium-ion batteries via any Air shipping method. This includes all international destinations outside the USA. In the USA, you will only be presented with ground-based shipping options if your order contains a battery. If you need to receive your order quickly and would like to ship with one-day or two-day shipping options, consider splitting your order into two: one for batteries (shipping via ground) and the rest.
Due to IATA shipping regulations, batteries shipping by AIR must have a charge of less than 30%. A lithium-polymer or lithium-ion battery that stays in this state for long periods will become damaged. For this reason, GetFPV does not ship batteries using Air shipping.
If you want to ship batteries via air shipping, you can set up an account through our freight forwarding partner MyUS.com. For more information, follow the instructions on their website.
Warning
Only use a Lithium battery charger. Always monitor the battery while charging. Always connect the balance cable while charging the battery. Always store the battery in a safe, nonflammable container. Never overcharge or over-discharge the battery. Never damage, puncture, short-circuit, or modify the battery. Never use a damaged Lithium battery.
More Information
| SKU | 22800 |
|---|---|
| UPC (GTIN) | 723326374951 |
| Manufacturer | Lumenier |
| Country of Manufacture | United States |
| NDAA Compliant | No |
| Battery Chemistry | Li-Ion |
| Battery Capacity (mAh) | 5000 |
| Voltage / Cell Count | 14.8 Volt (4 Cell) |
| Discharge Plug | XT-60 |
| C-Rating | Not Rated |
