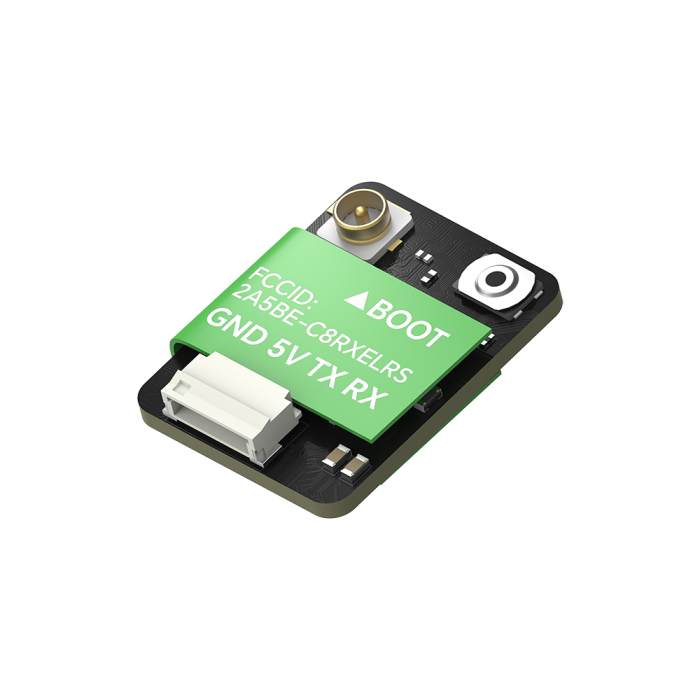

iFlight ELRS Nano 2.4GHz Receiver + 160mm Antenna
$22.99
In Stock
Only left for same day shipping. Order now!
iFlight ELRS Nano 2.4GHz Receiver + 160mm Antenna
With the extreme range and high packet rate of the iFlight ELRS Nano 2.4GHz Receiver and 160mm Antenna, failsafes are a thing of the past.
About this product
With the extreme range and high packet rate of the iFlight ELRS Nano 2.4GHz Receiver and 160mm Antenna, failsafes are a thing of the past. The ExpressLRS RX Nano modules were developed in close cooperation with the ExpressLRS Team, with firmware targets already released.
Features
- Improved circuit design
- Upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high frequency stability)
- High-performance at 2.4GHz signal has outstanding performance and long-range capabilities
Specifications
- Antenna connector: IPEX
- Firmware: ExpressLRS iFlight 2.4GHz Nano RX
- Frequency bands: 2.4GHz ISM
- Telemetry Power: 12.3dbm（17mW 2.4GHz）
- Dimension: 10x13mm
- Connector: SUR0.8 Connector
- Interface: RX TX 5V GND
- Input voltage: 5V
- Protocol: CRSF
- Weight: 0.5g
Includes
- 1x iFlight ELRS Nano 2.4GHz Receiver
- 1x 160mm Antenna
More Information
| SKU | 23749 |
|---|---|
| UPC (GTIN) | 723326377839 |
| Manufacturer | iFlight |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Radio Receiver Protocol | ELRS |
| RX Frequency | 2.4GHz |
| Antenna Mode | Single |
| Antenna Connector / Length | IPEX |
| Antenna Frequency | 2.4GHz |
