HGLRC Rekon10 Pro V2 10" LR Frame Kit - O4

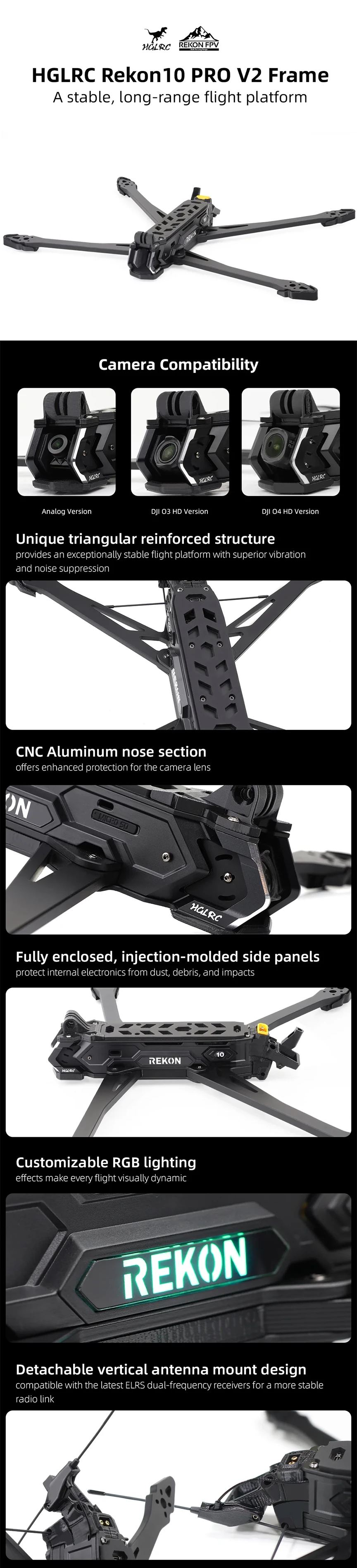

The HGLRC Rekon10 Pro V2 Frame Kit is a beast designed for the most challenging long-range missions! The weight and momentum of this 10” quad give it stunningly high cruising speeds and wind resistance for high-altitude mountain dives. This updated version of the classic Rekon10 features reinforced & detachable components and a sleeker aesthetic for an improved flight experience.

• Unique triangular reinforcement structure provides a more stable flight platform and more thorough noise suppression.
• The front features a CNC aluminum component, combining aesthetics with durability for better camera protection.
• Customizable vibrant RGB lighting effects make flying more dynamic.
• Adopts a detachable, vertically-mounted antenna design, compatible with the latest ELRS dual-frequency receivers for a more stable flight link.
• 10-inch platform, designed for larger motors and professional equipment, is the ideal choice for extreme-condition flights and as a productivity tool.

• Frame: HGLRC Rekon10 PRO V2 Frame
• Type: 10-inch Frame
• Top Plate Thickness: 2mm
• Middle Plate Thickness: 3mm
• Bottom Plate Thickness: 3mm
• Arm Thickness: 8mm
• Wheelbase: 474mm
• Flight Controller Mounting Holes: 30.5mm x 30.5mm, M3 /20mm x 20mm, M3
• VTX Mounting Holes: 25.5mm x 25.5mm, M2 /20mm x 20mm, M2 /30.5mm x 30.5mm, M3
• Motor Mounting Holes: 19mm x 19mm, M3
• Camera Lens Mounting Hole: 19-20mm
• Overall Dimensions: 498mm x 327mm
• Frame Weight: 567g ±5g (Includes antenna mounts, screws, and anti-slip pads)

• Frame Assembly Guide

• 1x Rekon10 Pro V2 Frame Kit
• 1x 3mm Bottom Plate
• 1x 3mm Middle Plate
• 1x 2mm Top Plate
• 2x Front Arm
• 2x Rear Arm
• 1x XT60EW-M Male Plug Connector
• 1x Adapter
• 2x Side Plate
• 2x Camera Vibration Damping Pad
• 1x Camera Mount
• 1x 915MHz Antenna mount
• 1x Anti-Spark Module
• 1x Heatsink
• 1x Frame Limiter
• 1x Battery Anti-Slip Pad
• 2x Battery Strap 25x350mm
• 1x Front Bumper Protector
• 1x Dual Antenna Mount
• 4x PVC Transparent Black Wire Sleeve
• 2x Power Cable
• 2x Double-Ended 4-Pin Cable
• 1x Double-Ended 6-Pin Cable
• 4x Foot Pad
• 2x CNC Nose Piece
• 1x Cable Management Clip
• 1x 3-in-1 Printed Part
