HGLRC MY7 7" LR Frame Kit
The HGLRC MY7 Frame Kit is a lightweight, durable 7‑inch frame designed for long‑range and freestyle builds. Its rigid construction and optimized layout make installation easy while supporting a wide range of components.
About this product
The HGLRC MY7 Frame Kit is a lightweight, durable 7‑inch frame designed for long‑range and freestyle builds. Its rigid construction and optimized layout make installation easy while supporting a wide range of components.
VIDEO: GIANT Size Budget FPV Drones - HGLRC MY7 & MY10
Features
- Lightweight 7-inch frame optimized for long‑range and freestyle
- Durable carbon fiber construction for strength and rigidity
- Spacious layout supports various motors, ESCs, and flight controllers
- Easy assembly with pre-drilled mounting holes
- Sleek design with reinforced arms for crash resistance


Specifications
- Frame: HGLRC MY7 Frame
- Type: 7-inch Frame
- Top Plate Thickness: 2mm
- Middle Plate Thickness: 3mm
- Bottom Plate Thickness: 3mm
- Arm Thickness: 6mm
- Camera Side Plate Thickness: 2mm
- Wheelbase: 335mm
- FC Mounting Pattern: 30.5mm x 30.5mm (M3)
- VTX Mounting Pattern:
- 30.5mm x 30.5mm (M3)
- 25.5mm x 25.5mm (M2)
- 20mm x 20mm (M2)
- Motor Mounting Pattern : 16mm x 16mm (M3)
- Camera Mounting Size: 19-20mm
- Overall Dimensions (LxW): 265mm x 300mm
- Frame-On ly Weight: 217g ±5g (Includes antenna mount, screws, anti-slip pad)

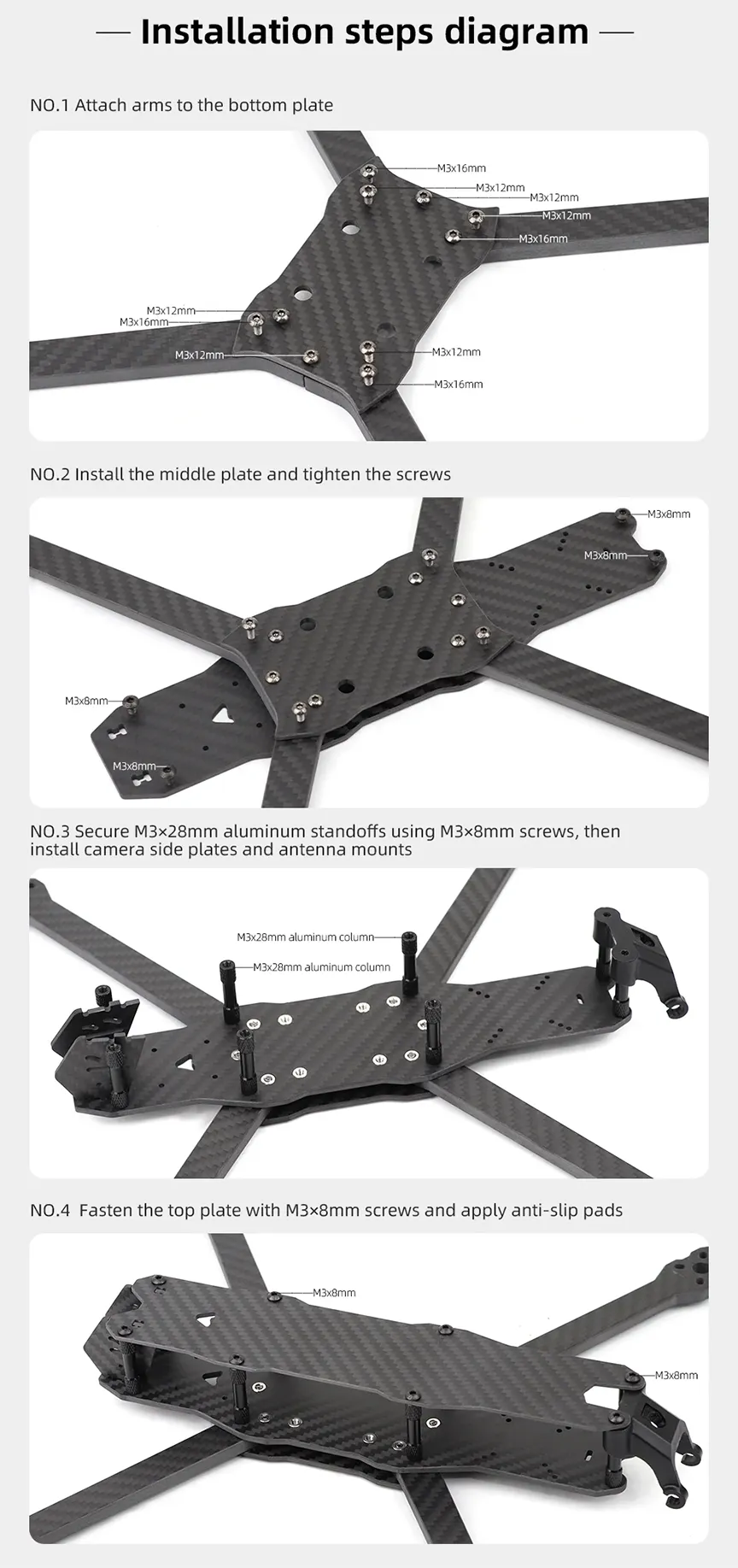

Includes
- 1x HGLRC MY7 7" LR Frame Kit
- 12x M3x8mm Button Head Screws
- 6x M3x12mm Button Head Screws
- 4x M3x16mm Button Head Screws
- 4x M3x25mm Button Head Screws
- 8x M3x28mm Aluminum Standoffs
- 4x M3 Ny lon Lock Nuts
- 1x Antenna Mount
- 1x Antenna Cap/Plug
- 4x Motor Wire Tubes/Guides
- 2x 300mm Cable Ties
- 1x Anti-Slip Battery Pad
- 1x HGLRC Large Sticker Sheet
More Information
| SKU | G23988CN1Z |
|---|---|
| UPC (GTIN) | 723326378676 |
| Manufacturer | HGLRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
