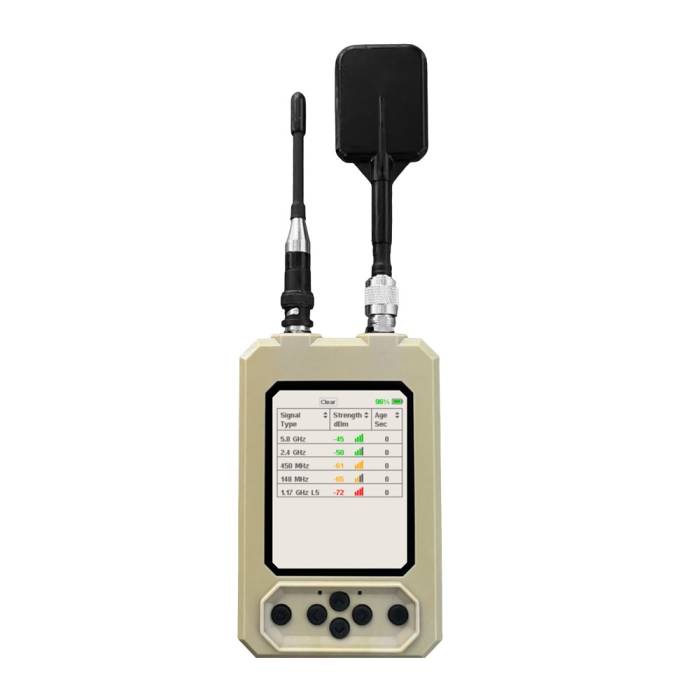

Heaviside MOTH Ruggedized Tactical Spectrum Analyzer

The Heaviside MOTH RF Spectrum Analyzer combines a lightweight, body-worn form factor with a robust frequency detection range. NDAA compliant, it is designed and manufactured in the USA.

The Heaviside MOTH RF Spectrum Analyzer puts spectrum awareness capabilities in the hands of every operator. Low size, weight, and power (SWaP), MOTH detects between 5 MHz – 6GHz, enabling frequency deconfliction and detection of RF threats including drones and communications devices.

• Detection range between 5 MHz – 6 GHz
• Real Time Signal Oscillation
• Vibration Notifications
• Durable LCD screen
• Direction Finding Mode
• Handheld and Vest-Portable
• Custom High Band Antenna

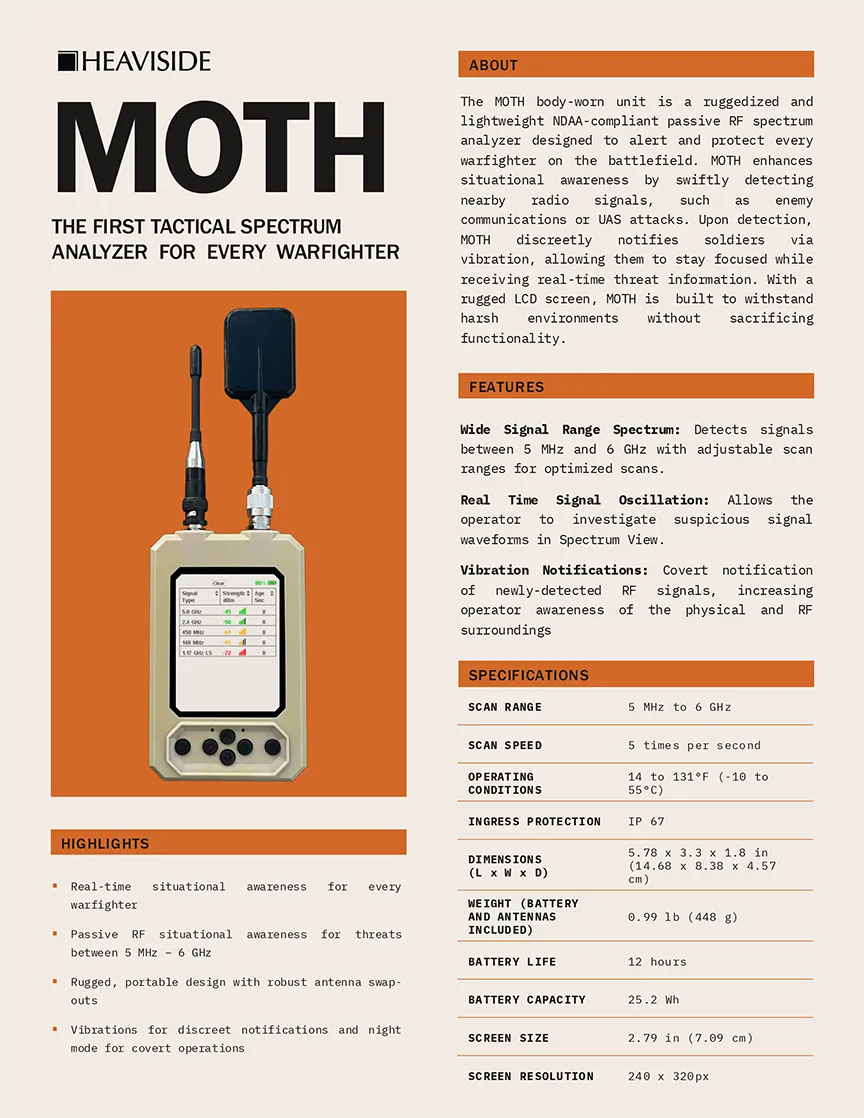

• Scan Range: 5 MHz – 6 GHz
• Scan Speed: 5 times per second
• Operating Conditions: 14 to 131ºF
• Ingress Protection: IP 67
• Dimensions (L x W x D): 5.78 x 3.3 x 1.8 in
• Weight (Battery Included): 0.99 lbs.
• Battery Life: 12 hours
• Battery Capacity: 25.2 Wh
• Screen Size: 2.79 in
• Screen Resolution: 240 x 320 px
• GPS: Yes
• TRL: 9
• NDAA Compliant: Yes
• ATAK Integration: Yes

• 1x MOTH Tactical Spectrum Analyzer
• 2x MOTH Lithium Batteries
• 1x USB-C Charger
• 1x Custom Vest Pouch
• 1x Pelican Case with Custom Foam
• 1x Low Band Antenna
• 1x High Band Antenna
