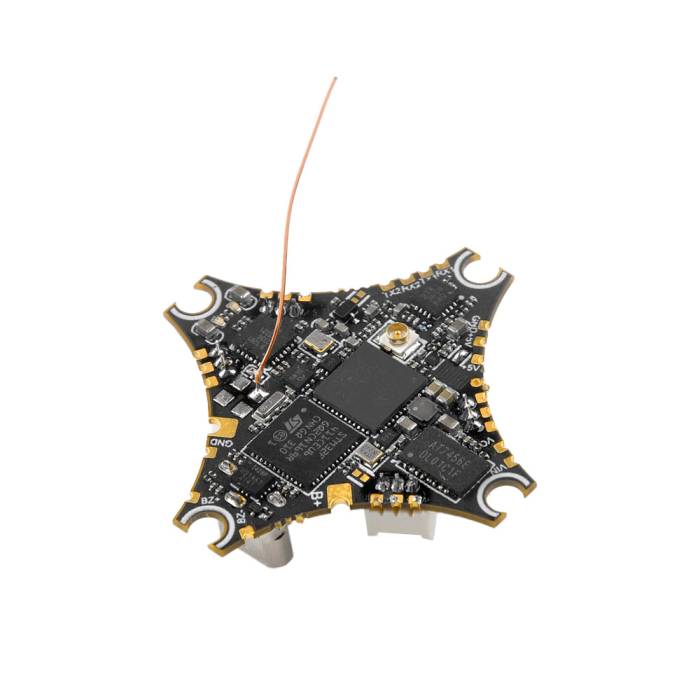

Happymodel SuperX AIO V2 - F4 + 5A 1S BLHeli_S ESC + ELRS 2.4GHz
The Happymodel SuperX F4 5A AIO V2 is an all-in-one flight controller built for 1S micro drones, combining an F4 MCU, 5A BLHeli_S ESCs, ExpressLRS 2.4GHz receiver, 5.8GHz OpenVTX (up to 400mW), and Betaflight OSD in a compact 25.5x25.5mm layout.
About this product
The Happymodel SuperX F4 5A AIO V2 is an all-in-one flight controller built for 1S micro drones, combining an F4 MCU, 5A BLHeli_S ESCs, ExpressLRS 2.4GHz receiver, 5.8GHz OpenVTX (up to 400mW), and Betaflight OSD in a compact 25.5x25.5mm layout. With support for Bluejay firmware, MSP VTX control, and wireless updates via WiFi, it offers reliable performance and easy setup for ultralight FPV builds.
Features
- Compact and Lightweight
- F4 Flight Controller
- High Compatibility
- Ideal for Upgrades
- All-in-One Design
- 5A BLHeli_S ESC
- A30 Connector
Specifications
ELRS RECEIVER
- ExpressLRS Firmware Target: HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)
- Firmware Update: Can flash single ELRS receiver firmware via Wi-Fi
- Compatibility: Compatible with ExpressLRS V3.x.x TX Module
- Packet Rate Option: 50Hz/150Hz/250Hz/500Hz
- Available From: ExpressLRS version 3.4.0 RC2
- Antenna: Enameled copper wire antenna
- Receiver Protocol: Serial-based CRSF
- ExpressLRS Firmware Version: V3.0
- Telemetry Output Power: <12dBm
- RF Frequency: 2.4GHz
FLIGHT CONTROLLER
- MCU: STM32F411CEU6 (100MHz, 512K FLASH), ESP32-PICO-D4
- Built-in Current Meter Sensor: Current meter scale 1175
- Built-in Voltage Meter Sensor: Voltage meter scale 110
- Built-in 5.8G OpenVTX: 0mw~400mw (MSP control)
- Power Supply: 1S battery input (DC 2.9V-4.35V)
- Built-in 5A (each) BLHeli_S: 4-in-1 ESC
- Built-in Betaflight OSD: (SPI Control)
- Mount Hole Size: 25.5mm x 25.5mm
- Sensor: BMI270 (SPI connection)
- Built-in UART: ExpressLRS v3.0.0
ESC
- Recommended ESC Startup Power Value: Min 1100 / Max 1200
- Current: 5A continuous, peak 6A (3 seconds)
- Support: BLHeliSuite programmable
- Factory Firmware: Bluejay v0.19.2
- Power Supply: 1S LiPo/LiPo HV
- Firmware Target: O-H-5 48kHz
- Default Protocol: DSHOT300
5.8GHz VTX
- Transmitting Power: 0/RCE/25mw/100mw/400mw
- Current (5V): <650mA (400mw)
- Firmware Version: OPENVTX
- Antenna Connector: U.FL
- Power Supply: DC 5V
- PIT Mode: Support
- Channels: 40ch
- VTX: MSP
Includes
- 1x Happymodel SuperX AIO V2 - F4 FC + 5A 1S - ELRS 2.4GHz
- 1x A30 Power plug
- 1x Hardware pack
- 1x Antenna
More Information
| SKU | 23189 |
|---|---|
| UPC (GTIN) | 723326374814 |
| Manufacturer | Happymodel |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 5 Amps |
| Flight Controller Processor | F4 |
| Voltage | 1S |
| ESC Firmware | BLHeli_S |
