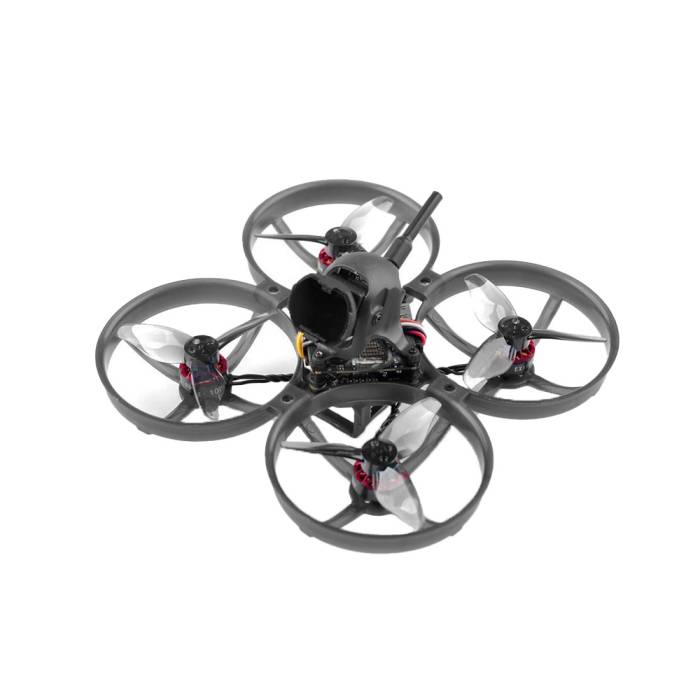

Happymodel Mobula8 Drone HD w/ DJI O4 - 2S - ELRS 2.4GHz

The Happymodel Mobula8 O4 HD Drone is a premium 85 mm FPV whoop designed for high-quality digital flight experiences with the DJI O4 Air Unit. Built on a compact 2S-capable frame with powerful EX1103 11000 KV brushless motors and a lightweight 50g design, it strikes a balance between agility and stability for freestyle flying. The included FOV extender and ND filters enhance the O4 camera’s field of view and image clarity. Ready to fly out of the box, the Mobula8 is ideal for pilots seeking crisp digital FPV footage from a micro platform.

VIDEO: #Mobula8 O4 2s 85mm micro Digital HD FPV drone testing

• DJI O4 air unit produces low-latency 1080p video at up to 100 fps
• FOV extender increases FOV angle up to 150 degrees
• UART ExpressLRS V3.0 receiver supports stable control link
• Lightweight and durable whoop body

• Frame: Happymodel Mobula8 O4
• Motors: EX1103 KV11000
• Propellers: Gemfan Hurricane 2023 tri-blade
• MCU: STM32F405RGT6
• Gyro: BMI270
• Power supply: 1-2S LiPo/LiPo HV; 550mAh recommended
• Current: 12A continuous, 15A peak (3 sec)
• Firmware: BLHeli_S Bluejay
• Antenna: enameled copper wire 31mm length
• Dimensions: 120mm x 120mm x 53mm
• Weight: ~50g

• Mobula8 O4 Manual
• Default factory Mobula8 O4 dump file for Betaflight 4.5.1

• 1x Happymodel Mobula8 Frame
• 1x CrazyF405HD ELRS flight controller firmware target: BETAFLIGHTF4
• 4x EX1103 KV11000 brushless motor
• 8x Gemfan Hurricane 2023 3-blade propellers (4CW+4CCW)
• 1x DJI O4 air unit
• 1x FOV extender for O4 camera
• 1x Angle-adjustable canopy
• 1x Screwdriver
