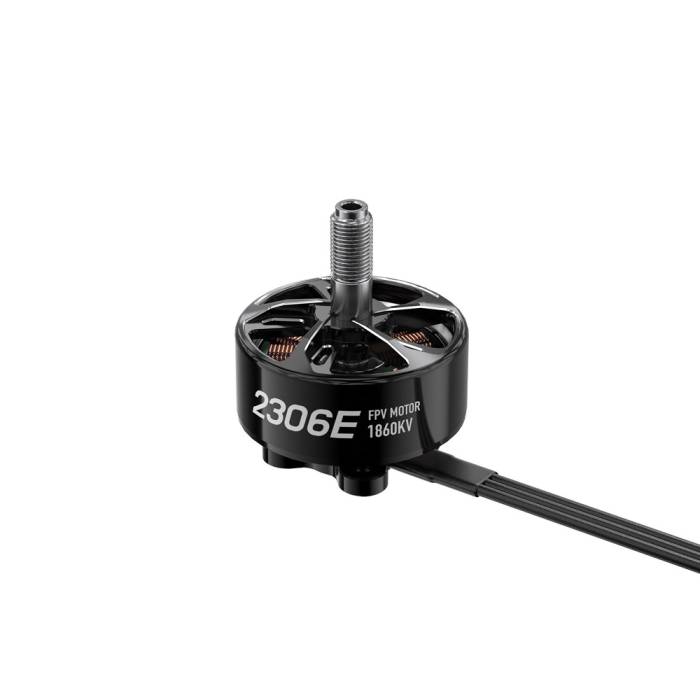

GEPRC SPEEDX2 2306E Motor - 1860KV

The GEPRC SPEEDX2 2306E Motor delivers fast response and reliable performance, making it ideal for freestyle pilots pushing their limits. Its reduced rotor-stator gap ensures precise control, while the unique blade-like protrusions securely lock your props in place. Featuring a glossy all-black finish and an open cutout structure for efficient cooling, this motor is both sleek and functional. Built from 7075 aerospace-grade aluminum and precision CNC machined, the SPEEDX2 2306E strikes the perfect balance of lightweight design and durability.

• 7075 aerospace-grade aluminum construction for lightweight strength
• Sleek all-black glossy design with performance-enhancing cutouts
• Blade-like prop-locking design for secure propeller installation
• Precision CNC machining for high durability and tight tolerances
• Reduced rotor-stator gap for ultra-responsive throttle control

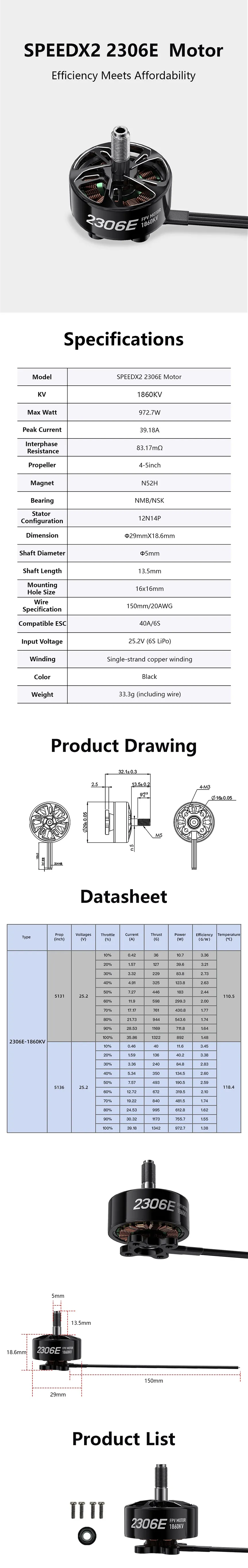

• Model: SPEEDX2 2306E Motor
• KV: 1860
• Max Watt: 972.7W
• Peak Current: 39.18A
• Interphase Resistance: 83.17mΩ
• Propeller: 4-5inch
• Magnet: N52H
• Bearing: NMB/NSK
• Stator Configuration: 12N14P
• Dimension: 29*18.6mm
• Shaft Diameter: 5mm
• Shaft Length: 13.5mm
• Mounting Hole Size：16*16mm
• Wire Specification: 20AWG/150mm
• Compatible ESC: 40A/6S
• Input Voltage: 6S
• Winding: Single-strand copper winding
• Color: Black
• Weight：33.3g (including wire)
• Compatible Models: Suitable for 4"-5" racing FPV quads

• 1x GEPRC SPEEDX2 2306E Motor - 1860KV
