Flywoo Firefly 25 Mini Frame Kit

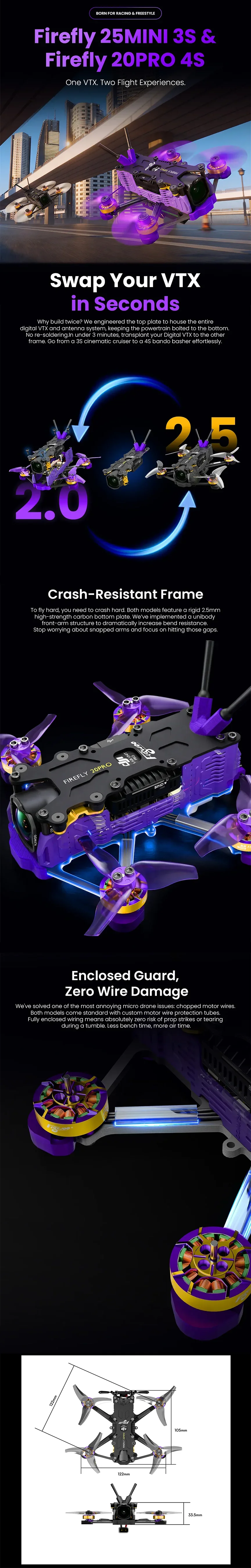

The Flywoo Firefly 25 Mini features a high-strength carbon fiber frame and unibody front arm structure for improved crash resistance. Quick-release side panels offer greater protection and the top plate is designed to house the entire digital VTX for easy installation and swapping with the Firefly 20 Pro frame.

• Shared dual-frame platform for 2-inch high-speed racing and 2.5-inch long-endurance freestyle
• Fully compatible with DJI O4/O4 PRO, Walksnail, and HDzero digital FPV systems
• Unibody structure reinforces arm strength and flexibility
• 4-point shock-isolating camera mount eliminates image jello
• 0°-25° adjustable camera tilt
• Tool-free quick-release side guards for easy installation and removal
• Fully enclosed wire protection tubes

• Product Name: Firefly 25MINI Frame Kit
• Dimensions: 122mm*105mm*33mm
• Wheelbase: 122mm
• FC Mount Hole: 20*20mm
• VTX Mount Hole: 20*20mm / 25.5*25.5mm
• Motor Mount Hole: 4-M2-φ9mm
• HD System: O4 Wide Air Unit/Walksnail Avatar Pro Kit/O4 PRO Air Unit/HDZero Whoop Lite w/ Runcam Micro
• Weight: 27g
• Recommended Battery: Flywoo 3S 550mAh LiHV/3S 750mAh LiHV/3S 1000mAh LiHV

• Firefly 20PRO/25MINI Manual

• 1x Carbon Fiber Top Plate
• 1x Carbon Fiber Bottom Plate
• 2x Battery Anti-Slip Pad
• 1x CNC Camera Mount
• 1x Antenna Mount
• 1x Buzzer Base
• 1x Head Protector
• 4x Wire Protector Tube
• 2x 10*130mm Battery Strap
• 2x 5.8GHz Copper Tube Antenna
• 2x Anti-Collision Side Plate (Purple)
• 2x Anti-Collision Side Plate (Black)
• 10x Shock Absorber Ball
• 10x M2 Nylon Nuts
• 4x Washers
• 4x Black Aluminum Standoffs
• 1x Aluminum Alloy Cover Plate
• 1x Screw Kit
