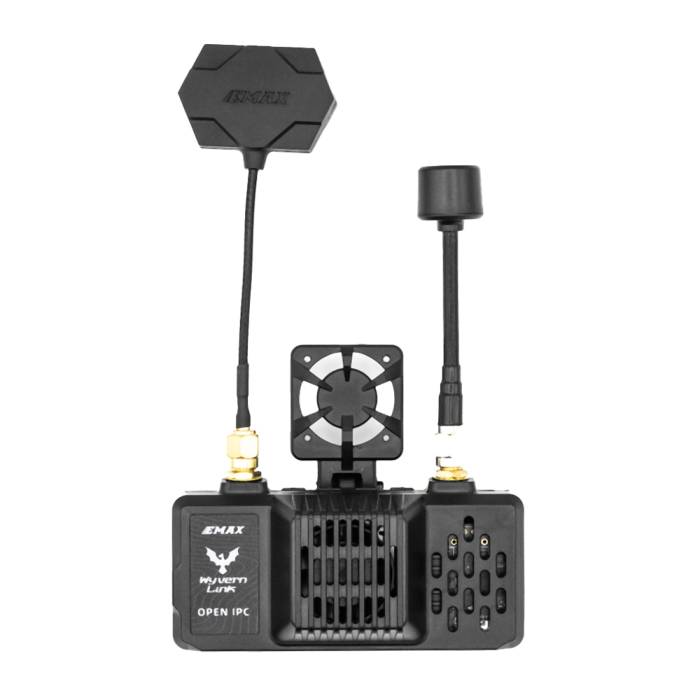

EMAX Wyvern Link OpenIPC Goggle VRX

Introducing the EMAX Wyvern Link Goggle VRX, a compact, portable receiver built for FPV systems running OpenIPC firmware. It delivers smooth, low-latency HD video with HDMI output, integrated DVR, and wide 2S–6S LiPo support. As an Alpha release, early adopters can help shape the future of FPV technology while enjoying a lightweight, all-in-one solution for goggles.

• Easy attachment to popular goggles, including Fatshark models
• Alpha release for early access to cutting-edge FPV technology
• Integrated DVR with onboard storage for recording flights
• Supports OpenIPC firmware for low-latency HD video
• Compact receiver module designed for FPV goggles
• Wide power input from 2S–6S LiPo batteries
• Lightweight and travel-friendly design
• HDMI output for external displays

• Compatibility: Works only with OpenIPC VTX and display, not standalone
• Frequency Channels: Up/Down buttons, default channel 132 (5660 MHz)
• Indicator LED: Steady green → flashing green for operating status
• System: OpenIPC firmware, requires pairing with OpenIPC VTX
• Cables: Dual Type-C, DC power, Micro HDMI to Mini HDMI
• Form Factor: Compact and portable for goggle integration.
• Frequency Bandwidth: 20 MHz, switchable via button
• Video Output: HDMI for display/monitor
• Power Input: DC 8V–24V

• 1x EMAX Wyvern Link OpenIPC Goggle VRX
• 1x Micro HDMI to Mini HDMI cable
• 1x Dual Type-C data cable
• 1x Screw accessory pack
• 2x Matching antennas
• 1x DC power cable
