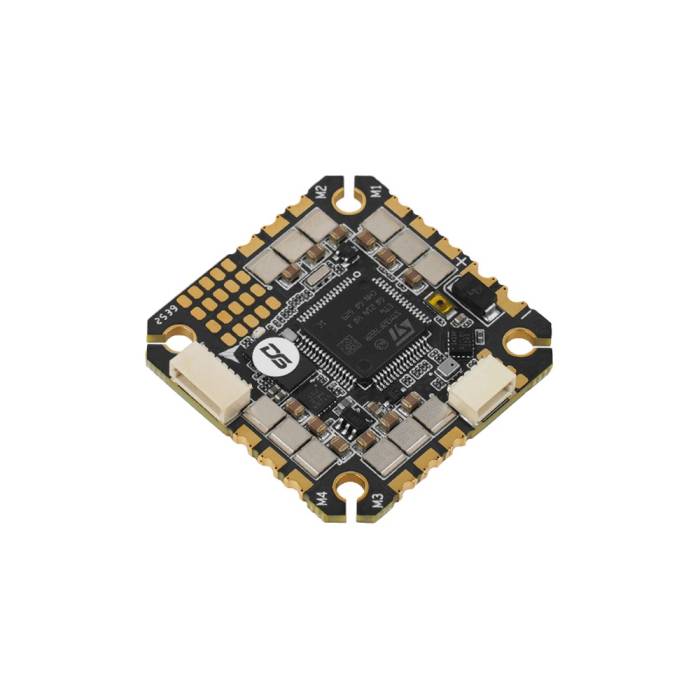

DeepSpace TALOS AIO - F722 FC + 40A 4-6S BLHeli_32 ESC

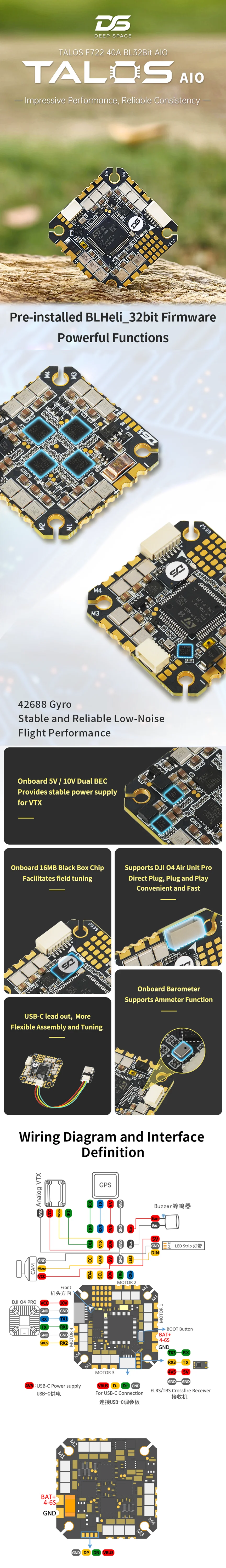

Soar to new heights with the DeepSpace TALOS F722 AIO. This high-performance All-In-One (AIO) board comes equipped with a snappy STM32F722 processor and a robust 40A BLHeli_32 4-in-1 ESC. Designed for pilots who demand precision and power, the TALOS supports up to 6S LiPo voltage, making it perfect for ultralight 5" FPV drones and 3.5" cinewhoops.

• Low-resistance MOSFETs provide superior heat dissipation and overcurrent capacity
• Pre-installed BLHeli_32 firmware for increased efficiency
• 16MB flash memory blackbox
• ICM-42688-P gyro provides reliable low-noise flight performance
• Supports DJI O4 Pro with direct plug-and-play access

FC

• MCU: STM32F722
• Gyro: ICM-42688-P
• Blackbox Memory: 16MB
• BEC: 5V 2A / 10V 2A
• UART: 4 Groups
• Supported: GPS, LEDs, OSD, Current Meter
• FC firmware target: DS F722AIO (Betaflight)
• USB Interface: SH1.0-4Pin to USB-C
• Mounting pattern: 25.5mm x 25.5mm
• Weight: 8.7g

ESC

• Power input: 4-6S LiPo
• Current: 40A continuous, 45A peak (20s)
• ESC firmware: BL32_32.10 48k
• ESC protocol: DShot300, DShot600

IMPORTANT NOTES

• The default flight controller firmware version of this AIO unit is 4.5.2 (Betaflight). Firmware updates cannot be performed online for subsequent use.

• 1x DeepSpace TALOS AIO
• 4x Rubber Rings
• 1x USB-C Tuning Board
• 1x O4 Air Unit Pro Cable
• 2x 16AWG Power Cable
• 1x Capacitor
