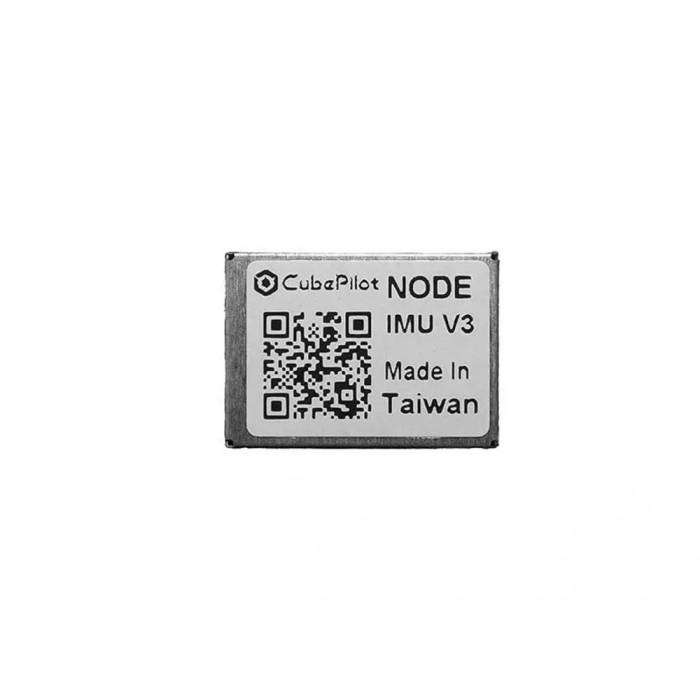

CubePilot CubeNode V3

The CubePilot CubeNode V3 provides a platform to develop, create, test, and refine components such as navigation systems, communication modules, sensors, payloads, and more. It integrates dual Arm Cortex cores that can execute and optimize high-performance tasks in parallel.

• Dual Arm Cortex cores
  • Cortex-M7: Can execute high-performance tasks in parallel
  • Cortex-M4: Offers optimal performance for real-time applications
• Two Memory Protection Units (MPU) protect data processes and prevent untrusted user programs from corrupting OS data
• 2Mb embedded flash memory divided into two independent banks
• High-current-capable General-Purpose I/O (GPIO) pins with speed selection to manage internal noise, power consumption, and electromagnetic emissions
• Three Analog-to-Digital Converters (ADC), allow resolution to be configured to 16, 14, 12, 10, or 8 bits
• Three embedded UART and four embedded USART
• Two controller area network (CAN) modules: shared message RAM memory and clock calibration unit designed for high-speed Classical CAN and CAN FD (up to 8 Mbit/s) applications
• High-performance 10/100BaseT Ethernet transceiver

MICROCONTROLLER (DUAL-CORE)

• 32-bit Arm Cortex-M7 core
• 32-bit Arm 32-bit Cortex-M4 core

MEMORY

• Flash: 2Mb read/write support
• RAM: 1Mb
• Cyclic redundancy check (CRC) calculation unit

SECURITY

• Read-out protection (ROP) & Proprietary code read-out protection (PC-ROP)
• Active tamper
• Secure firmware upgrade support
• Secure access mode


OPERATING CONDITIONS

• Standard Operating Voltage: 4.5V ~ 5.5V
• Standard Operating Voltage (HV_IN pin): 5.5V ~ 30V
• Operating Ambient Temperature: -40°C ~ 85°C
• Operating Junction Temperature: -40°C ~ 125°C

• Pin Descriptions
• CubeNode Footprint

• 1x CubePilot CubeNode V3
