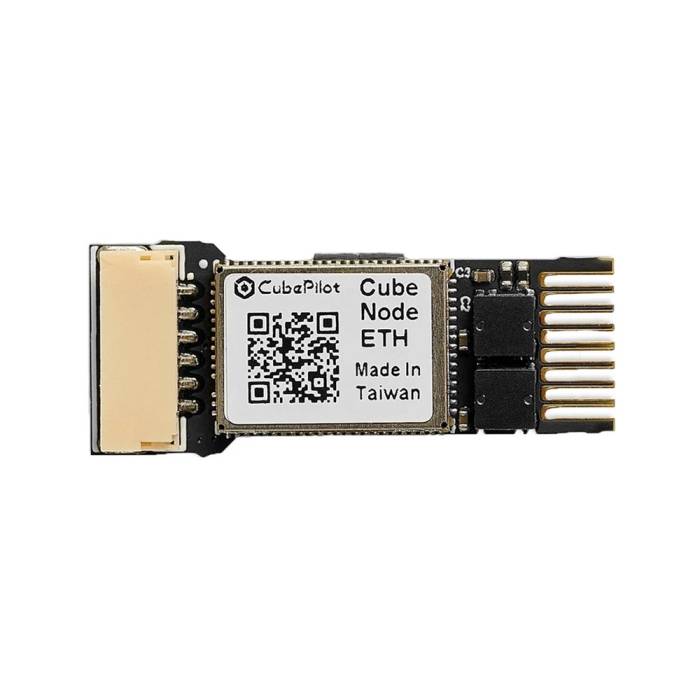

CubePilot Cubenode ETH

The CubePilot CubeNode ETH ethernet adapter allows STM32 H7 autopilots without built-in ethernet support to connect to ethernet peripherals. By enabling the PPP protocol on one of the serial ports (preferably with flow control) of The Cube, you can achieve up to 12Mbit/s networking link and transport multiple protocols (CAN, MAVLink) over the network without using multiple serial ports.

• Compliant with Energy Efficient Ethernet (EEE) IEEE 802.3az
• Compliant to IEEE 802.3 100BASE-TX and 10BASE-Te
• Diagnostics tools: cable diagnostics, built-in self test (BIST), loopback modes
• Auto-negotiation
• Automatic polarity detection and correction
• Vendor specific register functions
• HP Auto-MDIX support

• Dimensions: 11.43 x 28.44mm
• Speed: 10/100M
• Connector Type (CAN): JST SM04B-GHS
• Connector Type (Serial): JST SM06B-GHS
• Connector Type (Ethernet): JST SM05B-GHS
• Auto MDI-MDIX Function: Supported
• LAN Transformer: Included

• Further Information - Ardupilot
• Further Information - CubePilot

• 1x CubePilot Cubenode ETH
• 1x 5-pin to RJ45 ethernet cable
• 1x CAN cable
• 1x GH TELEM cable
