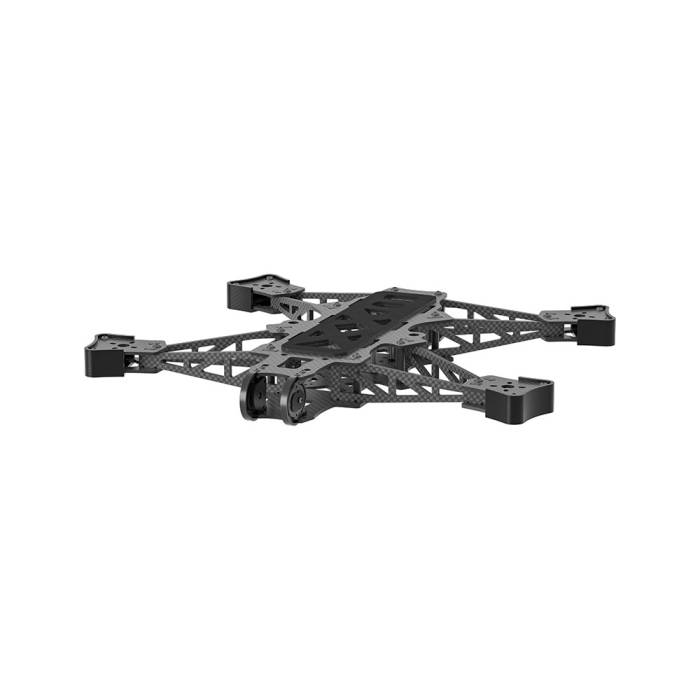

AOS RC UL7 V5 Frame Kit
$149.99
Out of Stock
Only left for same day shipping. Order now!
AOS RC UL7 V5 Frame Kit
The AOS RC UL7 V5 Frame Kit is the next evolution of the UL7, purpose-built for long-range FPV pilots who demand maximum performance, strength, and efficiency.
About this product
The AOS RC UL7 V5 Frame Kit is the next evolution of the UL7, purpose-built for long-range FPV pilots who demand maximum performance, strength, and efficiency. Featuring an ultra-light yet ultra-stiff structure, a durable 7075 aluminum camera cage, and the patent-pending AOS X-Cell anti-vibration mount, this 7-inch frame is engineered to deliver smooth, jello-free footage and rock-solid handling.
Features
- Ultra-light, ultra-stiff arm design
- AOS X-Cell anti-vibration mount
- 155° wide FPV field of view
- 7075 aluminum camera cage
- Flexible stack mounting
- 14mm camera support
- Broad VTX support
Specifications
- Product Name: AOS UL7 V5 Frame Kit
- Frame wheelbase: 312mm
- Frame Dimension: 232*190*29 mm
- Arm Thickness: 3mm
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2mm
- Side Plate Thickness: 2mm
- Max Flight Stack Height: 25mm
- Max VTX Height: 25mm
- Flight Stack Mounting: 20*20 Φ3mm / 30*30 Φ3mm
- VTX Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm / 30*30 Φ3mm
- Motor Mounting: 16x16mm/19x19mm -φ3
- Weight: 230g
- Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX
Includes
- 1x AOS UL7 V5 Frame Kit
- 1x TPU Parts
- 1x Screw Bag
More Information
| SKU | 23390 |
|---|---|
| UPC (GTIN) | 723326375828 |
| Manufacturer | AOS RC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Prop Length | 7" |
| Frame Style | Standard |
