NamelessRC Nano400 25-400mW VTX

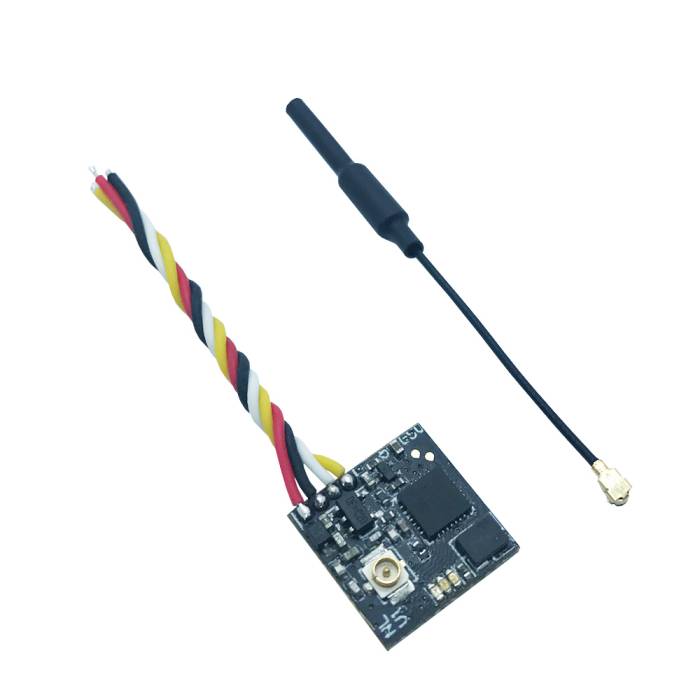

The new Nano400 VTX by NamelessRC is an incredibly small VTX. It comes with four adjustable power outputs and is great for your micro and toothpick builds!
Share

About this product

The new Nano400 VTX by NamelessRC is an incredibly small VTX. It comes with four adjustable power outputs ranging from PIT/25mW/100mW/200mW/400mW. Excellent VTX for your micro and toothpick builds!

Features

  • Lightweight & Compact Design
  • High Output Power
  • Pit Mode
  • IRC Tramp Protocol Control

Specifications

  • Brand Name: NameLessRC
  • Item Name: Nano400 VTX
  • Output Power: PIT/25mW/100mW/200mW/400mW Switchable
  • Control Mode: BFOSD Control(RX)
  • Input Power: 5V
  • Video System: NTSC/PAL
  • Antenna: IPEX
  • Size: 12.4MM*12.4MM*3.5MM
  • Weight: 0.7g
  • Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
  • The NameLessRC Nano400 VTX's factory set up is on lock mode
  • 5733-5866MHZ unlock

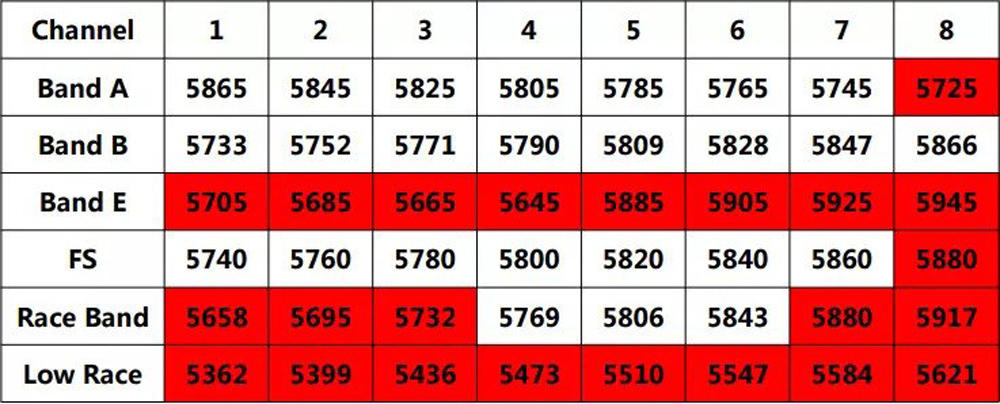

Note: The Nano400 is locked to 25mW by default.  Please see the frequency table below to view the lock channels, which are marked in red.

Please follow your local laws and regulations if you need to unlock the frequency.

Manual

Includes

  • 1 x Nano400 VTX
  • 1 x 5.8G Linear Antenna
  • 4 x Silicone Wire
  • 1 x Heat shrinkable tube

FPV Regulatory Notice

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

More Information

SKU 11614
UPC (GTIN) 032733836687
Manufacturer Nameless RC
NDAA Compliant No
Mounting Pattern 25.5x25.5mm
Frequencies 5.8GHz
