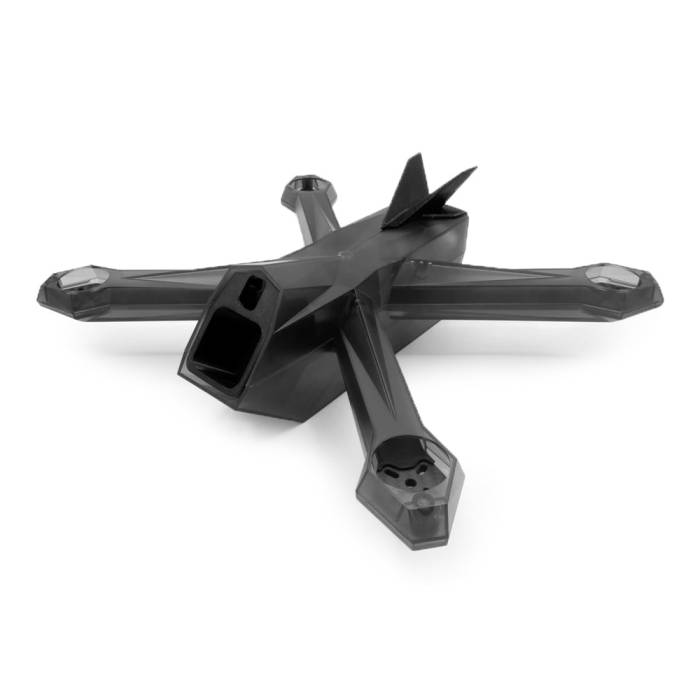

OnwardFPV R4LA 7" Injection Molded Frame Kit - V2
OnwardFPV R4LA 7" Injection Molded Frame Kit - V2
Back Ordered
About this product
The OnwardFPV R4LA was inspired by DRL's Racer 4. After designing the R4LA Pro, the community wanted a frame to customize the drone their way. The R4LA was born! This drone has many important components that create a smooth, enjoyable flight experience for any pilot.
The V2 Main Plate was designed as the main mounting surface for all of the other R4LA components. The plate is cut at 45 degrees of the carbon fibers weave to increase the overall stiffness of the frame. Now with multiple mounting patterns - 20x20 and 30x30.
Note: This is the frame kit only, electronics are not included. Assembly required.
VIDEO": Racer 4LA - DRL Racer Drone
Features
- Transparent smoked black polycarbonate canopy, perfect for LED compatibility
- Semi-covered motors to resist motor damage
- Now with multiple Mounting Pattern options
- Complete battery and electronic protection
- V1 and V2 Parts work together
- Injection-molded canopies
- 3D Printed TPU Parts
- Battery Wire Guide/Grommet
- Dual SMA Mounting Areas
- Battery Catch
The R4LA Bottom and Top Covers are made of smoked black polycarbonate. These covers protect both the electronics and the battery from damage and debris while adding aerodynamic efficiency to the frame. Equipped with Camera Button Hole and Battery Hole.
The R4LA also features a Back Sled that is a rear protector for your electronics, protecting them from foreign debris, allowing for easy antenna mounting points, and keeping your battery from falling out of the drone during flight. Another feature is the R4LA is the Flexible Spoiler which provides a steady flight and allows "Flip over after crash" mode.
Specifications
- Back Sled Material TPU (Thermoplastic Polyurethane)
- Sled Mounting: 9 M3 Threaded Brass Inserts
- Canopy Color: Transparent Smoke Black
- Plate Material: Twill Carbon Fiber
- Canopy Material: Polycarbonate
- Stack Mounting: 20x20 / 30x30
- Overall Weight: 1.26 lb (565g)
- Carbon Thickness: 5mm
- Max bell size: 33mm
- Prop Size 7"
Includes
- 1x TPU Rear sled for dual antenna mounting
- 1x TPU FPV and HD camera sling
- 1x Injection Molded Bottom Cover
- 1x Injection Molded Top Cover
- 1x Carbon Fiber Part Set
- 4x Carbon Fiber Arms
- 1x Hardware Set
- 1x TPU spoiler
More Information
SKU | 16823 |
---|---|
UPC (GTIN) | 764613338898 |
Manufacturer | OnwardFPV |
NDAA Compliant | No |
Item Returns | This item can be returned |
