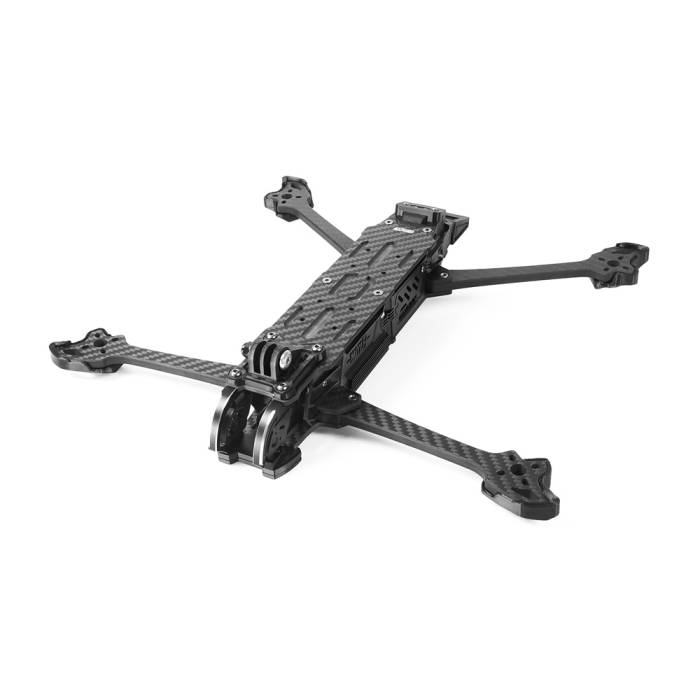

Experience unparalleled performance with the GEPR MOZ7 Frame Kit, featuring a strong CNC aluminum alloy side plate for versatile camera mounting. This drone supports a maximum of 30.5mm×30.5mm stack installation and is compatible with various VTX and customized cooling systems. With an innovative camera fixing method, the left and right alternate camera aluminum parts installation position can realize the switching between 19mm and 20mm size. The fixed point of the camera is reinforced with a carbon plate to make the installation force more uniform and avoid warping and deformation. A personalized protective side plate ensures the safety of internal electronics.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

• The camera uses a solid and sturdy CNC aluminum alloy side plate, compatible with 19mm and 20mm camera mounts.
• Personalized protective side plates effectively protect the safe operation of internal electronic equipment. It improves flight reliability, the maximum support for a 30.5×30.5mm flying tower, and 30mm*30mm video transmission (outer size) installation.
• With an H-shaped frame design, smooth flight experience, and stable attitude, suitable for long-range flight.
• Compatible motor hole position, support 16mm×16mm and 19mm×19mm motor installation.
• VTX cooling fins to ensure stable operation during flight.
• Mounted with a full range of GoPro cameras, Insta 360 Go2, and Caddx Peanut cameras, the shooting effect is stable and precise.

• Model: MOZ7
• Frame: GEP-MOZ7
• Dimensions: 280mm×310mm
• Wheelbase: 320mm
• Top plate: 3.0mm
• Bottom plate: 3.0mm
• Arm plate: 6.0mm
• Splint plate: 3.0mm
• Camera mount: 2.0mm
• VTX cover: 1.5mm
• FC mounting hole: 30.5mm*30.5mm
• VTX mounting: 20mm*20mm/25.5mm*25.5mm/30.5mm*30.5mm (the maximum external size supports 30mm*30mm)
• Camera installation size: 19mm/20mm
• Propeller: 7-7.5 inches
• Weight: 310.0g (without battery)

IMPORTANT NOTES

• The DJI Remote Controller is recommended for beginners but NOT required to use the FPV System, since you won't need to set up another receiver. If you don't have the DJI Remote Controller, you will need a receiver for your transmitter. and then bind to your own radio as usual.
• If you do not have the frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
• Our current frsky receivers default version in 2.XX, requires us to use of the same version of frsky transmitter.

• 1x GEPRC MOZ7 Long Range 7" Frame Kit
• 2x M20*250mm battery straps
• 2x M20*300mm battery straps
• 2x Battery silicone pads
• 1x Hardware Set
• 1x Print package
• 1x L-shaped screwdriver (1.5mm)
• 1x L-shaped screwdriver (2mm)
• 1x L-shaped screwdriver (3mm)
• 1x M5 wrench
