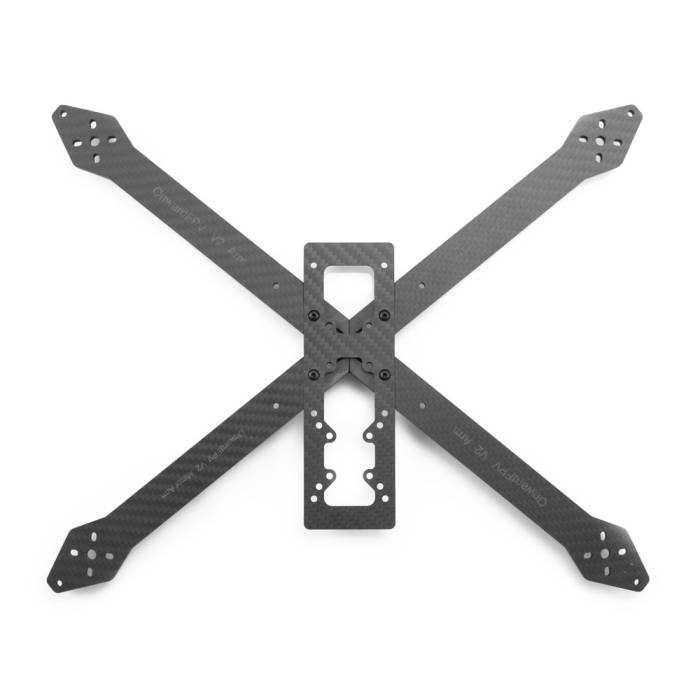

OnwardFPV R4LA Carbon Fiber Bottom Plate Kit - V2

OnwardFPV R4LA Carbon Fiber Bottom Plate Kit - V2

In Stock

Only left for same day shipping. Order now!
OnwardFPV R4LA Carbon Fiber Bottom Plate Kit - V2
The OnwardFPV R4LA was inspired by DRL's Racer 4. This R4LA Bottom Plate V2 kit gets rid of the "Spacer Plate" required on the V1, adding removable arms, lighter parts, and cleaned-up tolerances.

About this product

The OnwardFPV R4LA was inspired by DRL's Racer 4. After designing the R4LA Pro, the community wanted a frame to customize the drone their way. The R4LA was born! This drone has many important components that create a smooth, enjoyable flight experience for any pilot.

The R4LA Bottom Plate V2 gets rid of the "Spacer Plate" required on the V1, adding removable arms, lighter parts, and cleaned up tolerances.

Note: This is the Bottom Plate Kit only. Full frame, electronics, batteries, and camera are not included.

VIDEO": Racer 4LA - DRL Racer Drone

Features

  • Removed need for Spacer Plate on V1
  • Removable Arms
  • Clean tolerances
  • Lighter Parts

Specifications

  • Stack Mounting Patterns: 20x20 (2) or 30x30 (1)
  • Motor Mounting Patterns: 16x16 or 19x19
  • Material: 3K Twill Carbon Fiber
  • Motor Bell Screw Hole: Yes
  • Carbon Thickness: 5mm
  • Arms: Removable

Includes

  • 1x OnwardFPV R4LA Bottom Plate Kit - V2
  • 4x Carbon Fiber Arms
  • 1x Hardware Kit

More Information

SKU 16824
UPC (GTIN) 764613338904
Manufacturer OnwardFPV
Item Returns This item can be returned

Also Purchased

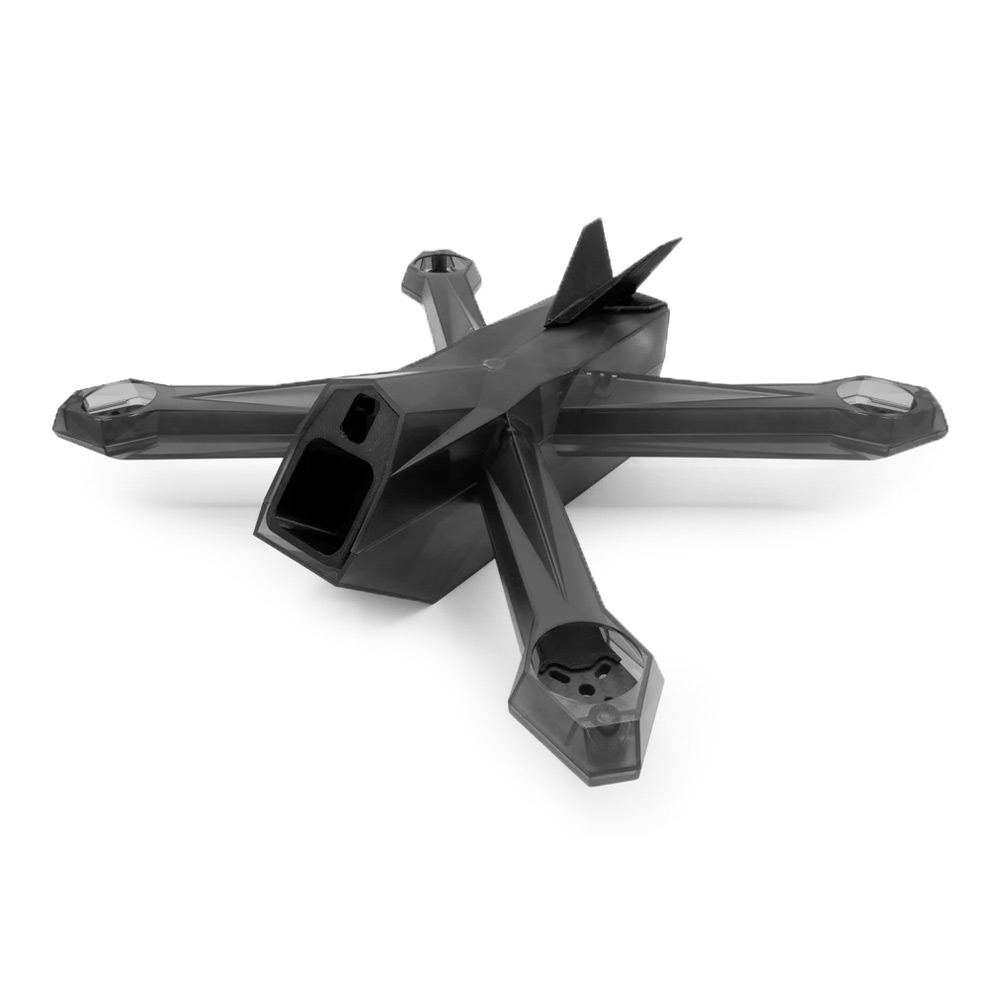

OnwardFPV R4LA 7" Injection Molded Frame Kit - V1
