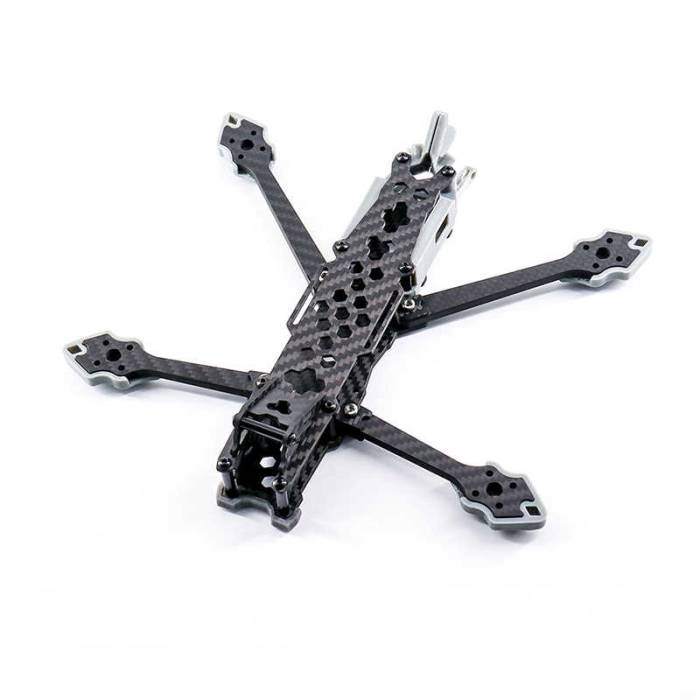

TCMMRC FPV Avengers DJI 225HD 5" Frame

A limited-edition 5" frame from TMMC-RC. The Avenger 225HD is DJI compatible with 20mm FPV camera mounting. The frame comes with features like arm guards, adjustable camera positions, and a deadcat configuration.

Specifications

• Wheelbase225: 225mm
• Material: 3K Carbon Fiber matte
• Net Weight: 136.9g
• Arm thickness: 5mm
• Prop Size: 5 inch
• Motor Hole position: 16 * 16 mm, 20 * 20 mm, 25.5 * 25.5 mm
• Compatible Camera: 20 mm
• Motor Mounting Hole: 9 * 9mm
• Space height: 20mm
• Electronics Stack Mounting: M2*20*20 M3*30.5*30.5
• Upper board thickness: 2mm

Includes

• 1x TCMMRC Avenger 225HD Frame Kit
