Stan FPV Stallion 5" Frame Kit - True X

The Stan FPV STALLION 5" Frame Kit will lift you into the sky as you rest easy knowing you're flying the best. You can even get a little rowdy if you want because a STALLION can handle it! It's TOUGH! This frame has a True X Configuration for a more natural feel!

FPV is literally one of the most amazing experiences a human being can do. It allows a person to FLY LIKE A BIRD - yet bear absolutely no risk to the body -  many could have used this so many years earlier in life! Find your freedom in the sky!

Note: Frame Kit Only. Electronics, Motors, Props, Etc. are NOT Included.

VIDEO: Stallion Drone - Flight Outside The Stan FPV Shop

Features

• GoPro Mounting Holes for front top, front bottom, and rear bottom locations that all have NPIV options!

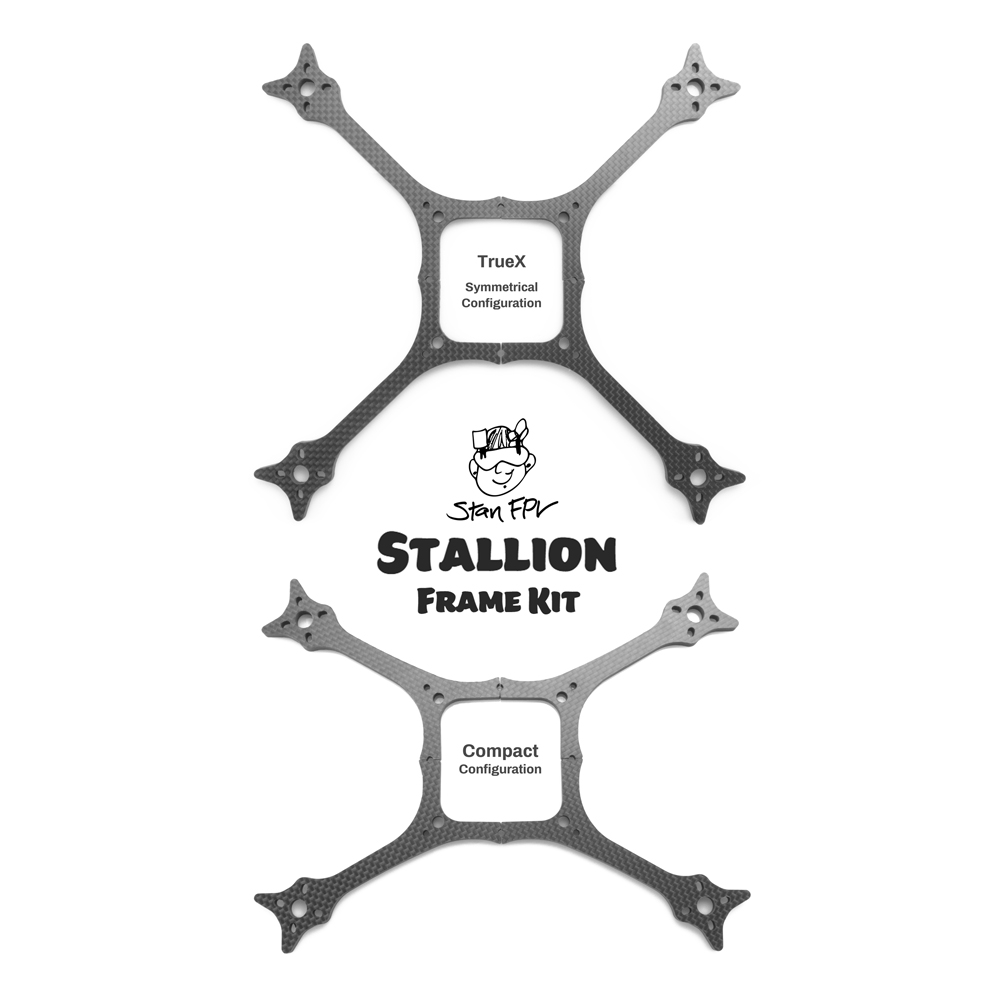

• True X Arm Configuration. Compact configuration is available Here.
• Designed for Smoother Handling Cinematic and Freestyle Builds
• 30x30 and 20x20 stack mounting holes built into Top Plate stock
• Optimized Center of Gravity with Optimal Arm Leverage
• Motors are protected in crashes by arm protrusions.
• Accepts Analog and HD configurations
• Universal FPV Camera Mounts
• Super Strong 6mm 5" arms
• Symmetrical Motor Layout
• Versatile LIPO mounting
• Can fit 5" UDP-Guards
• Fits up to 5.1" Props
• More "Neutral" Feel
• "Air-Thru Design"

AIR-THRU DESIGN

SOLID, LIGHTWEIGHT, and AERODYNAMIC "Air-Thru Design" keeps electronics COOLER and flights SMOOTHER while keeping the frame LIGHTER and STIFFER than most others in its class.

ANALOG/ DJI HD FPV COMPATIBILITY

Tons of mounting areas for all you're analog components + additional 20x20 holes for Vista / Nebula Pro / Nebula Nano mounting front and rear of main stack center area. Fits a full air unit too!

VERSATILE LIPO MOUNTING

Versatile LIPO mounting can be top-mount or bottom-mount, both traditional and sideways (toilet tank) for endless CG options.

Specifications

• Motor Mount Hole Pattern: M3 16mmx16mm - 19mmx19mm
• Frame Weight: 113g with hardware (5" Arm Version)
• Analog / DJI HD FPV Compatibility: Yes
• Stack Holes: 20x20 and 30x30
• UDP-Guard Compatibility: Yes

Includes

• 1x Stan FPV Stallion Frame Body w/ 25mm Standoffs

• 2x Stan FPV 225mm Strong AF Kevlar Lipo Straps

• 1x FPV Cam TPU Minimalistic Mounts

• 4x Custom 3M Stallion Foam Feet

• 4x True X (Symmetrical) 5" Arms

• 1x Hardware Set (Steel)
