Stan FPV Feather 5" Ultralight Frame Kit - Short Nose

Stan FPV Feather 5" Ultralight Frame Kit - Short Nose

In Stock

Only left for same day shipping. Order now!
Stan FPV Feather 5" Ultralight Frame Kit - Short Nose
The Stan FPV Feather 5" Frame Kit will lift you into the sky as you rest easy knowing you're flying the best. This frame has a True X Configuration for a neutral feel with a Short Nose frame perfect for Racing.

About this product

The Stan FPV Feather 5" Frame Kit is perfect for your Sub250 build. This Short Nose version is specially designed for Analog capabilities. Freestyle racing at its finest - with a frame that has a symmetrical True X Configuration for a more natural feel!

The Feather has dual (M2)12x12 and (M3)16x16 normal motor bolt holes and also the new straight two base (M2)12x12 hole pattern recently released by Stan FPV's friend Tommy, so you have TONS of motor options you can choose to put on the Feather Frame!

FPV is literally one of the most amazing experiences a human being can do. It allows a person to FLY LIKE A BIRD - yet bear absolutely no risk to the body -  many could have used this so many years earlier in life! Find your freedom in the sky!

Note: Frame Kit Only. Electronics, Motors, Props, Etc. are NOT Included.

VIDEO: Sub250g 5inch FPV Drone Maiden Flight - WOW!! Feather is the definition of FPV FUN!!!


  • Designed for Smoother Handling Cinematic and Freestyle Builds
  • Optimized Center of Gravity with Optimal Arm Leverage
  • Accepts Analog and HD configurations
  • Short Nose Version for FPV Racing
  • Symmetrical Motor Layout
  • True X Arm Configuration
  • Versatile LIPO mounting
  • Can fit 5" UDP-Guards
  • Fits up to 5.1" Props
  • More "Neutral" Feel
  • "Air-Thru Design"
  • No Props in View


Versatile LIPO mounting can be top-mount or bottom-mount, both traditional and sideways (toilet tank) for endless CG options.


  • Accepts Motors: 12x12 m2, 16x16 m3, 12x12 straight two m2
  • Prop Size: 4-5" (Top Mount Lipo) / 4"-6" (Under Mount Lipo)
  • Accepts Electronics: AIO 26x26 holes & 20x20 holes
  • Battery Mounting Options: Traditional / Toilet Tank
  • Dedicated Mounting for Vista: Yes
  • Accepts FPV Cam Size: Nano
  • Action Cam Mounting: Yes
  • Analog or Digital: Analog
  • Removable Arms: Yes

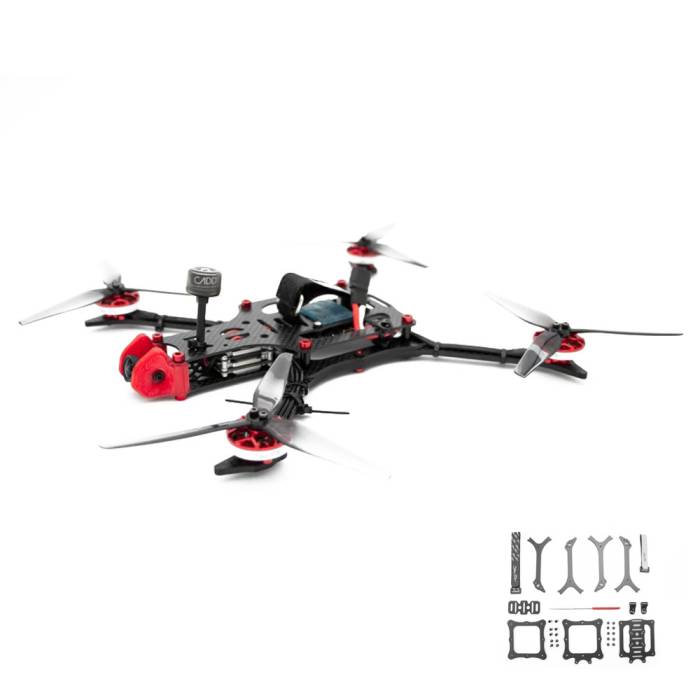

  • 1x TPU Rubber Crash Protector Nano Camera Mount
  • 1x Stan FPV Feather Short Nose Top Plate

  • 1x Stan FPV Feather Bottom Plate
  • 1x Stan FPV Feather Clamp Plate
  • 4x True X (Symmetrical) 5" Arms

  • 2x Stan FPV Lipo Straps

  • 1x Hardware Set (Steel)

More Information

SKU 17247
UPC (GTIN) 764613342024
Manufacturer StanFPV
Item Returns This item can be returned
