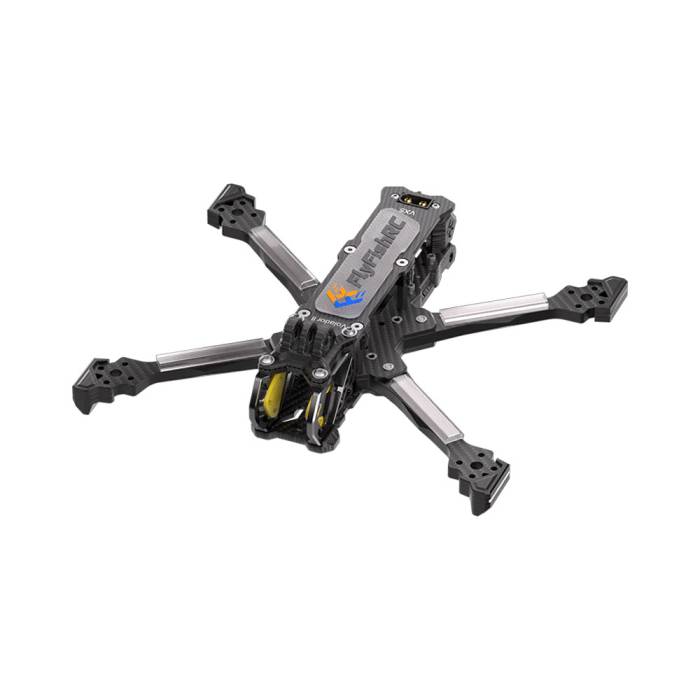

FlyFishRC Volador Ⅱ VX5 O4 Pro Freestyle Frame Kit - Black

The FlyFishRC Volador II VX5 O4 Pro Freestyle Frame Kit is a refined 5” Squashed X frame built for top-tier performance and ultra-clean builds. Now optimized through community feedback, it features high-strength T700 carbon fiber, CNC aluminum parts, and tightly integrated TPU components for enhanced durability and aesthetics.

• The new CNC aluminum camera plates effectively protect the camera
• 12.9-grade strength hardware with Loctite threadlocker pre-applied
• Equipped with all accessories needed for analog and HD builds
• The silicone shock-absorbers for the O4 AU eliminate jello
• Integrated XT60 connector for safety and reliability
• Tight structure design minimizes resonance
• Compatible with both 19/20mm cameras
• New motor wire protection tubes
• Innovative anti-slip battery pads
• High electronics compatibility
• High-end T700 carbon fiber
• High-quality TPU parts

• Arm Thickness: 6mm
• Top plate thickness: 2.5mm
• Middle plate thickness: 2.5mm
• Bottom plate thickness: 2.5mm
• Keystone thickness: 5mm
• Side plate thickness: 2mm
• CNC Side plate thickness: 5mm
• Propeller size: 5~5.1 inch
• Material: T700 carbon plate
• FPV cam spacing: 19mm/20mm
• Weight: 177.4g (with TPU parts)
• Total Dimensions:177mm*165mm
• Wheelbase: 225mm
• Stack mounting holes: 20mm*20mm / 30.5mm*30.5mm(M3)
• VTX mounting holes: 20mm*20mm / 25.5mm*25.5mm(M2)
• Color: Black

• 1x FlyFishRC Volador Ⅱ VX5 O4 Pro Freestyle Frame Kit - Black
