Rekon FPV Rekon4 FR Freestyle 4" Frame Kit

Features

• Supports 20x20-25.5x25.5mm mounting holes
• Supports AIO/stack installating at the same time, ultra-light and lasts super long in flying.

Specifications

• Brand Name:Rekon
• Model:Rekon4 FR Freestyle Frame
• Material:3K Carbon Fiber
• Type:4" frame
• Wheelbase:180mm
• size:180*140mm
• Top plate thickness:1.5mm
• Bottom plate thickness:1.5mm
• Middle plate thickness:1.5mm
• Arm thickness:4mm
• Space of top and middle plate:20mm
• Motor mounting hole:∅9-12
• Installation holes:20x20mm/25.5x25.5 mm
• Support camera:19*19mm
• Weight:52.2g

Recommended Parts(Not Included)

• Flight Controller:Zeus25/ZeusF722 mini
• Motor:14XX/16XX/18XX
• ESC:25A-40A
• Camera:19X19mm
• Propeller:4 Inches

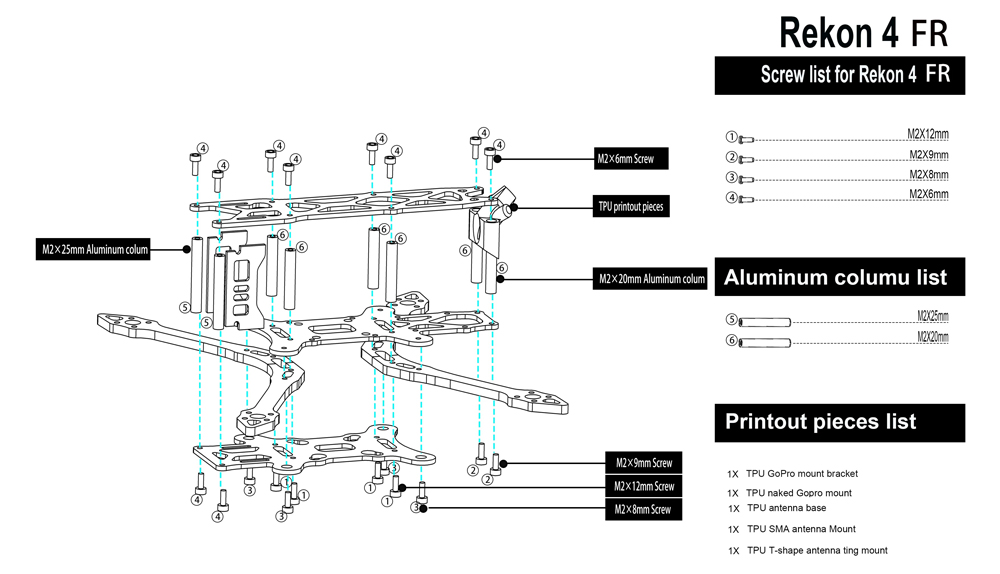

Includes

• 1x 1.5mm top plate
• 1x 1.5mm bottom plate
• 1x 1.5mm middle plate
• 2x 1.5mm camera side plate
• 4x 4mm Machine arm
• 2x M2*25mm Black mesh aluminum columns
• 6x M2*20mm Black mesh aluminum columns
• 5x Round head screws M3*20
• 4x Head cap screws M2*20
• 4x Cup head screws M2*12
• 4x Cup head screws M2*9
• 12x Round head screws M2*6
• 2x Round head screw M2*4
• 5x M3 Self-tightening nuts
• 4x M2 Self-tightening nuts
• 8x M3*6.6 shock-absorption balls
• 4x M2*4 shock-absorption Standoffs
• 2x Battery straps 15x200mm
• 1x Battery Anti-slip pad
• 1x TPU SMA antenna base
• 1x TPU antenna base
• 1x TPU GoPro fixing bracket
• 1x TPU Naked Gopro mount
• 1x TPU T-shape antenna fixing mount
