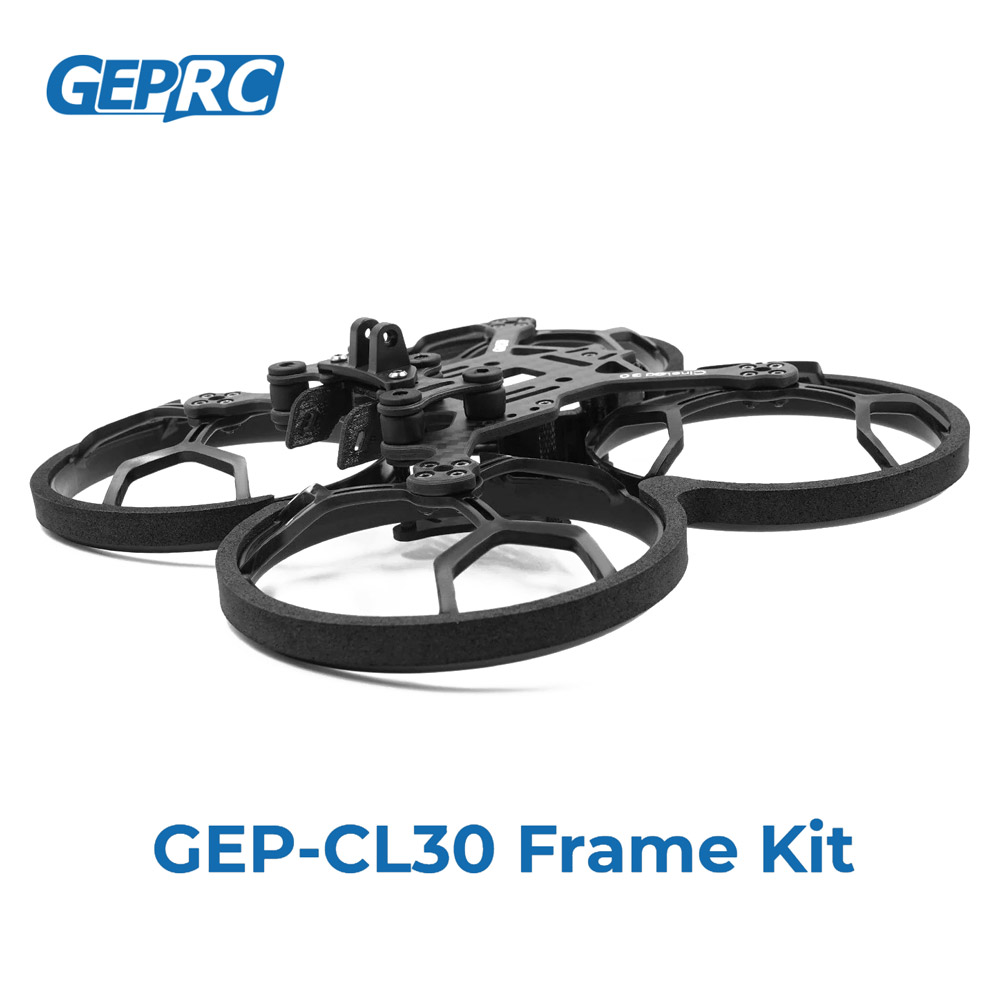

This GEP-CL30 Frame kit is for the GEPRC CineLog30 cinewhoop.

Designed by the GEPRC team, this frame can be used for Vista HD digital image transmission systems or Analog image transmission systems.

Developed by GEPRC, the CineLog30 is one of the best sub-250g FPV pusher drones in the current market!  The CineLog30 is made with great quality components and a one-of-a kind-frame for durability. The cinewhoop is a dream pusher drone that provides incredibly stable HD video. Pair it up with a naked camera or any other FPV camera for freestyle and cinematic flight.

Note: This is the frame kit only - assembly required. Action camera, propellers, and electronics are not included.

VIDEO: GEPRC CineLog30  // It is 100% Sub 250 grams for PNP version

Features

• The upgraded reversed-motor design and more compact structure could bring a more maneuverable and stable freestyle experience.
• A GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed through the mounting base.
• Improved the shock absorption design of the damping platform to provide a more stable shooting effect.
• The backward push design and the shock absorption structure of the camera mount.
• Durable high-impact Carbon material with good toughness and strength.
• 9x9mm motor holes can be used for mounting 1404-1408 motors
• Newly developed GEP-CL30 frame with Ultralight fuselage
• Small size, lightweight.

 LIGHTWEIGHT DESIGN

The new design made the drone smaller and lighter. Most important, CineLog30 can take off with a 4s 660mah battery only 222.5 grams

NOISE REDUCTION DESIGN

Unique noise reduction design can make CinLog30 noise much less than another Whoop Quadcopter

BACKWARD PUSH DESIGN

Bring higher flexibility, more stable freestyle flight experience, and better shock absorption ability.

CUSTOMIZED MOUNTING BASE

Perfectly suitable for GoPro Hero 8 naked camera and INSTA 360 GO2 camera

UPGRADED PLATFORM DESIGN

Make the shooting and recording effect more stable

Specifications

• Weight:62.6g( Include propeller guard, GoPro camera mount,3D printings)
• Dimension: 180mm x 180mm x 38mm (including propeller guard)
• Propeller guard internal diameter: 79mm
• Camera installation space: 14~19mm
• Suitable propeller size: 3 in propeller
• FC hole position: 26.5mm x 26.5mm
• VTX hole position: 20mm x 20mm
• Motor hole position: 9mm x 9mm
• Motor to Motor: 126mm
• Bottom plate: 2.0mm
• Model: GEP-CL30
• Top plate: 2.0mm
• Arm Plate3.0mm
• Brand: GEPRC

Includes

• 28x M2x6.5mm round head screws
• 1x TBS T-shaped Antenna Mount
• 4x Aluminum Column M2x3.5×25
• 4x M2x10mm round head screws
• 10x M2x8mm round head screws
• 4x EVA Damping Ring of Guards
• 7x M2x9mm round head screws
• 1x M2x12mm cup head screw
• 4x M2x16mm cup head screws
• 2x M2x4mm cup head screws
• 8x M2 * 6.5mm damping rings
• 1x M15x200mm Battery Strap
• 1x M15x150mm Battery Strap
• 1x 19x19mm Camera Mount
• 9x damping platform rings
• 1x GoPro Camera Mount
• 1x TBS NanoRX Mount
• 1x VTX Antenna Mount
• 6x 3 in Propeller Guard
• 1x bottom Plate 2.0mm
• 1x L-shaped (1.5mm)
• 1x Camera Protector
• 2x 3M Double Tapes
• 1x Arm Plate 3.0mm
• 1x Top Plate 2.0mm
• 2x Knurled nut M2
• 1x Antenna Tubes
• 2x Silicone Pads
• 2x Landing Pads
• 1x M2 Rivet nut
• 4x M2 Locknuts
• 8x M2 Iron nuts
• Note: Action camera, propellers, and electronics not included.
