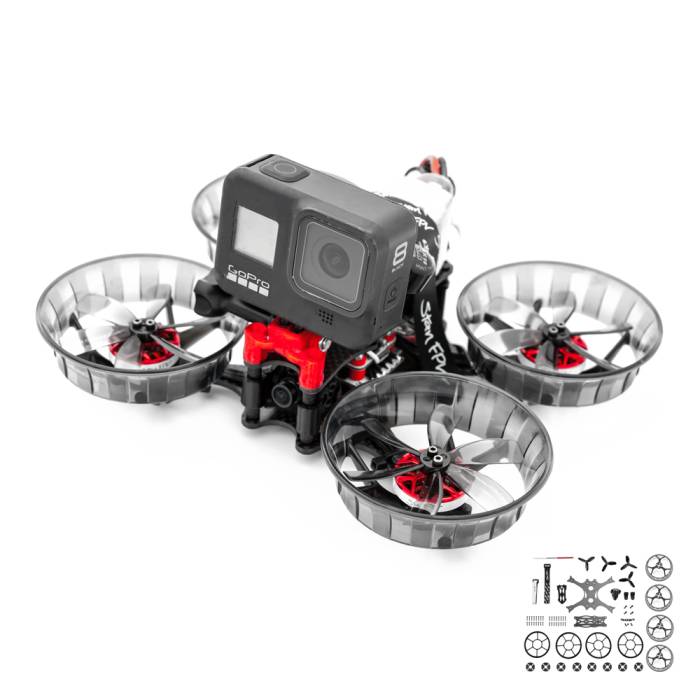

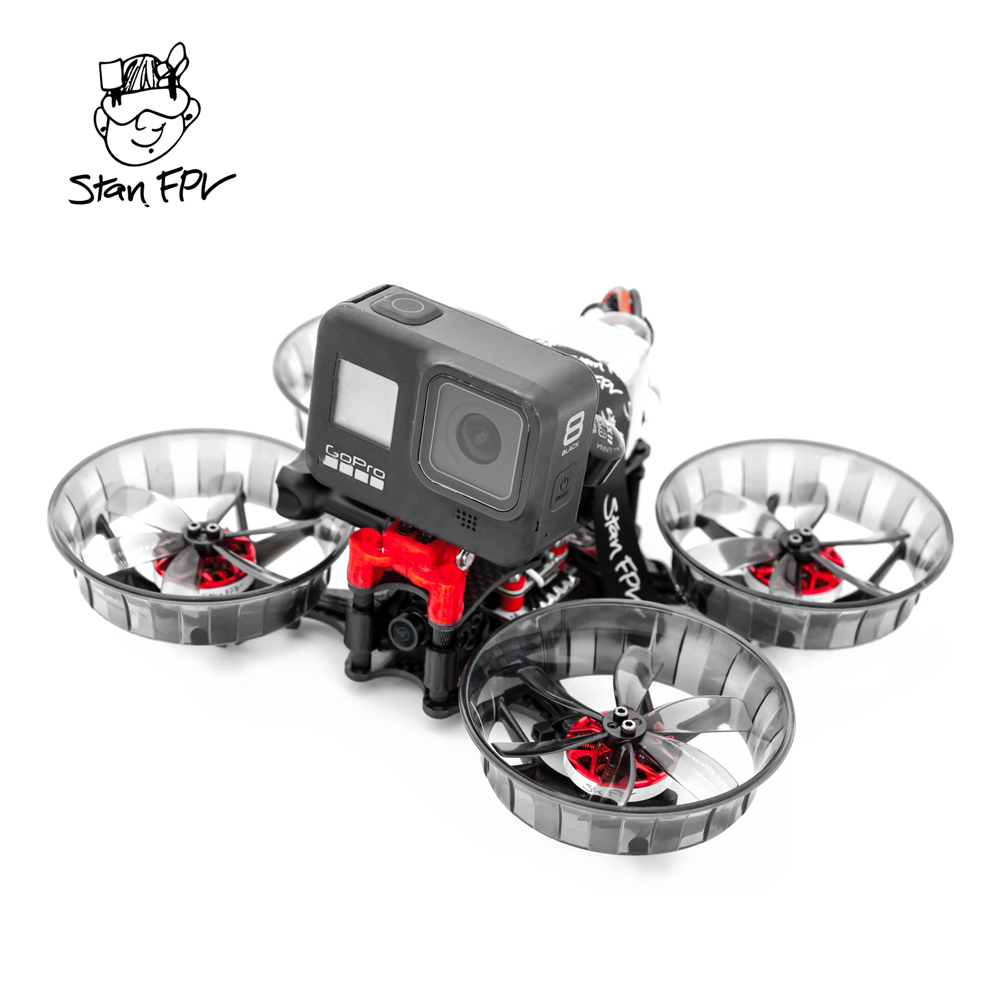

The Stan FPV Proxy 3" Cinewhoop Frame Kit w/ Prop Guards - OG Edition is a no-compromise, full/naked GoPro capable, naked prop/guarded, high-performance 3" cinewhoop frame with lightweight Ducted Propeller Guards that help it fly smoother and quieter!

PROXY is exactly what a cinewhoop SHOULD be, while also being easier to build, work on, and maintain - less is MORE! With a wide base of support and plenty of clean air for each prop, this build also has some of the best handlings ever.

Take your FPV Proximity Flying to the NEXT LEVEL with a PROXY OG Cinewhoop and its "two quads in one" design!

Note: Frame Kit Only. GoPro Action Camera, motors, and electronics, etc. are not included. This Kit comes with 3-Blade Propellers.

Features

• Easy to build on and maintain
• UDP Injected Prop Guards
• Full/naked GoPro Capable
• Wide Supportive Base

Specifications

• LiPo Size: 550 - 1300mah 3s-4s / 450 - 1100mah 4s-6s
• HD Air Unit/Accessory Mount Holes: 20x20 M2
• Motor Mount Holes: 9x9 - 12x12 M2 (4)Hole
• Stack Mount Holes: 20x20 M3 / 26x26 M2
• Motor Size: 2203 / 1407 5mm Shaft
• Prop Size (Naked Prop): up to 3.5"
• Analog/HD Compatible: Yes / Yes
• Prop Size (With Duct): 2.5"
• FPV Cam Size: Any
• GoPro: Naked / Full

Includes

• 1x Vibration Dampening Proxy GoPro Screw Mount
• 4x Injected 3" Universal Ducted Propeller Guards
• 1x Set of FPV Universal Cam Mounts
• 4x Removable TPU Protective Tops
• 4x M3x25mm Aluminum Standoffs
• 1x Secondary Carbon Fiber Plate
• 1x M3 Spare/Optional Pressnut
• 16x M2x8mm Mounting Screws
• 16x M2x6mm Mounting Screws
• 4x 2.5x2.5x3 3-Blade Propeller
• 1x Main Carbon Fiber Plate
• 1x Stan FPV 250mm Strap
• 1x Stan FPV 150mm Strap
• 1x Proxy Battery Pad
• 7x M3x6mm Screws
• 2x M3x8mm Screws
• 1x Filing tool
• 1x M5 Nut
