About this product
We couldn't think of a better frame for this application other than the epic Lumenier QAV-S Mini 3 inch. The QAV-S MINI 3" is the new addition to the QAV-S line and features functionality, simplicity, and ease of work.
The arm locking system includes a hinge with a press nut that secures the arms and requires just one screw to swap the arm. The split bottom plate gives enough room for a micro camera in the front, while also reducing the rear deck space, which can be used to mount any VTX even a Caddx vista HD module. The QAV-S MINI 3 inch has isolated 16x16, 20x20, and 26.5x26.5 stack mounting that lets you take care of your electronics stack without the need to alter the frame structure and overall build.
A step-by-step build video by renowned FPV instructor Joshua Bardwell is now available! You can also read the written building guide, created by the Lumenier build team, with detailed images. Check out the current building guide here.
Note: This is a DIY Kit- Full Assembly Required
Features
- T-Motor 1507 V2 3800kv motors designed just for this kit (new release).
- BETAFPV Toothpick F4 2-6S AIO Brushless Flight Controller 20A (BLHeli_32) V4
Recommended (Not Included)
Propellers
- H Q 3X3X3: https://www.getfpv.com/hqprop-dp-3x3x3-pc-propeller-3-blade-black-set-of-4.html
- Gemfan 3028: https://www.getfpv.com/gemfan-windancer-3028-propeller-set-of-4.html
- HQ 3X2.5X3: https://www.getfpv.com/hqprop-t3x2-5x3-propeller-set-of-4.html
- T-motor T76: https://www.getfpv.com/t-motor-t76-3-ducted-propeller-set-of-4.html
Batteries
Receiver
- Crossfire Nano: https://www.getfpv.com/tbs-crossfire-nano-rx.html
- Inmortal T: https://www.getfpv.com/tbs-crossfire-immortal-t-antenna-v2-extra-extended.html
- Frsky R-XSR: https://www.getfpv.com/frsky-r-xsr-2-4ghz-16ch-accst-micro-receiver-w-s-bus-cppm.html
- Frsky XM+: https://www.getfpv.com/frsky-xm-sbus-mini-receiver.html
- Frsky XM Micro: https://www.getfpv.com/frsky-xm-receiver.html
FPV Goggles
- Premium: DJI FPV Goggles V2 (Digital)
Radio Transmitter
- DJI: DJI FPV Remote Controller (Mode 2) (No additional receiver needed, pairs directly to Vista unit inside drone)
- Midrange: FrSky Taranis X9 Lite ACCESS 2.4G 24CH Radio Transmitter
- Premium: FrSky Taranis X9D Plus Special Edition 2019 ACCESS 2.4G 24CH Radio Transmitter

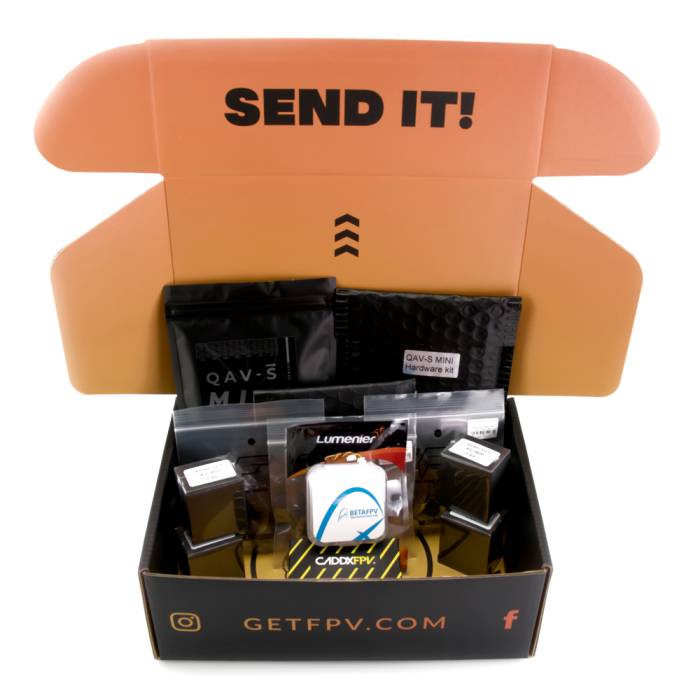

Includes
- 1 x Lumenier QAV - S Mini 3" Freestyle Quadcopter Frame
- 1x BETAFPV Toothpick F4 2-6S AIO Brushless Flight Controller 20A (BLHeli_32) V4
- 1x Caddx Nano Baby Ratel V2 1200TVL + Male Plug 3 pin connector
- 1x Lumenier AXII 2 U.FL 5.8GHz Antenna (RHCP) extended wire
- 3x HQ Durable Prop T76 Cinewhoop (Set- 2cw +2ccw) Poly Carbonate
- 4x T-Motor 1507 V2 3800kv motor
- 1x TBS Unify Pro32 Nano 5G8
- 1x QAV S Mini Hardware Kit
- 20x m2 - 6mm socket head screws
- 9x m2 - 8mm socket head screws
- 3x m2 - 10mm socket head screws
- 3x m2 - 16mm socket head screws
- 5x m2 - 20mm socket head screws
- 8x black zip ties
- 22x m3 nylon nuts
- 3x m2 x 1mm washers
- 2x heat shrink 4mm OD x 50mm length
- 1x XT30 female connector with pre-soldered black and white 18 AWG wire 90mm
- Note: This is a DIY Kit- Full Assembly Required
Videos
More Information
| SKU | 15804 |
|---|---|
| UPC (GTIN) | 751313221315 |
| Manufacturer | Lumenier |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
