GEPRC CineLog 35 P 3.5" Cinewhoop Drone Frame Kit - Performance Edition

GEPRC CineLog 35 P 3.5" Cinewhoop Drone Frame Kit - Performance Edition

Back Ordered

Only left for same day shipping. Order now!
Earn

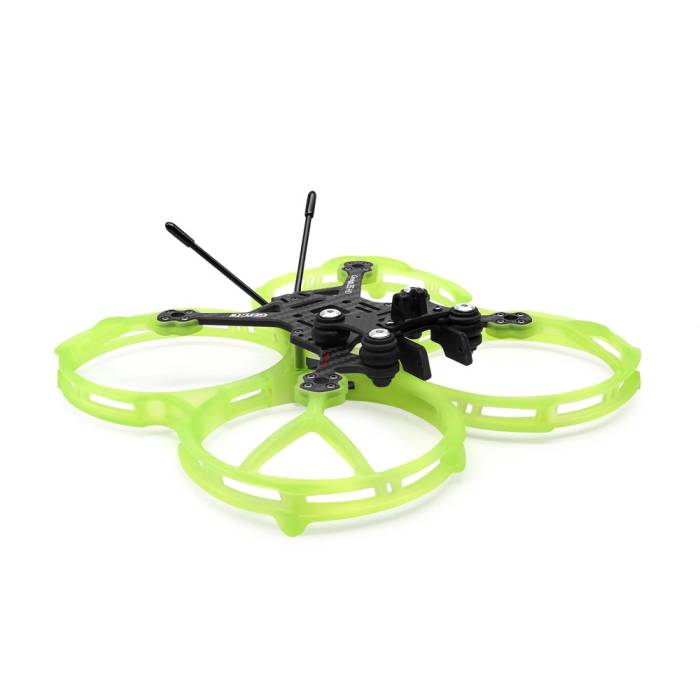

GEPRC CineLog 35 P 3.5" Cinewhoop Drone Frame Kit - Performance Edition
The CineLog35 Performance frame is improved and optimized on the basis of the CineLog35 frame.

About this product

The CineLog35 Performance Frame is improved and optimized on the basis of the CineLog35 frame. This frame supports the installation of mainstream AIO flight controllers with 25.5mm x 25.5mm holes and the direct installation of a VISTA or AVATAR digital VTX. The propeller guard adopts an integrated design, and the overall structure is more solid. The GEP-CL35 Performance frame uses brand-new materials that have stronger impact resistance and better toughness. With the use of the 12mm x 12mm motor holes, larger 15-18-21 series motors can be installed. 3.5-inch propellers will provide a stronger power output. The CL35 is designed for the Installation of GoPro 8/9/10 cameras with 3D printed mounts, or use the base to install naked GoPro8, Insta 360 GO2, and Caddx Peanut cameras.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: BEST Cinewhoop for FILMMAKERS? - GEPRC Cinelog35 PERFORMANCE Review

Features

  • Supports GoPro8/9/10/Naked GoPro 8/ Insta 360 GO2/Caddx Peanut cameras
  • Independent receiver cabin design with convenient and fast frequency binding
  • 12 x 12mm motor holes support 1507/1805/2004/2105.5 and other Motors
  • Improved shock absorption gimbal design for more stability and less jelly
  • Supports the installation of 3.5-inch propellers for strong power output
  • Hollowed-out noise reduction design for quiet and safe flights
  • 3.5-inch injection-molded one-piece propeller guard
  • Supports mainstream 14/19mm cameras
  • Brand new appearance

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • VTX mounting hole: 20mm x 20mm/25.5mm x 25.5mm
  • Suitable propeller size: 3.5-inch propeller
  • Propeller guard internal diameter: 95mm
  • Dimension: 203mm x 203mm x 42mm
  • FC mounting hole: 25.5mm x 25.5mm
  • Motor mounting hole: 12mm x 12mm
  • Camera installation space: 14~19mm
  • Model: GEP-CL35 Performance
  • Motor to Motor: 142mm
  • Bottom plate: 2.0mm
  • Arm plate: 3.5mm
  • Top plate: 2.5mm
  • Weight:105.7g

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x 2x GEPRC CL35 P 3.5-inch Integrated Propeller Guards
  • 1x GEPRC CL35 P Arm Plate 3.5mm
  • 1x GEPRC CL35 P Top Plate 2.5mm
  • 2x M15x200mm LiPo Straps
  • 1x Antenna Mounting Tube
  • 1x Set of 3D Printed Parts
  • 2x Battery Non-slip Mat
  • 1x Bottom Plate 2.0mm
  • 1x Set of Screwdrivers
  • 1x Set of Screws
  • 1x Set of Cables

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 19219
UPC (GTIN) 764613352931
Manufacturer GEPRC
NDAA Compliant No
Item Returns This item can be returned
