Tiger Motor F60III - 2350kv

This is the F60III from TMotor, which is a motor design for FPV racing and extreme performance. The F60 V3 takes the structural design from the classic U5 motor, with custom curved magnets and optimized magnetic circuit for a stable and efficient output, increasing max. thrust power by 250G. The F60III also comes with varnished wires and a centrifugal design for high temperature resistance with a cooling reduction of 10°C by moving air more effectively inside the motor. This allows you to push the motor to the extreme with the result of incredible power!

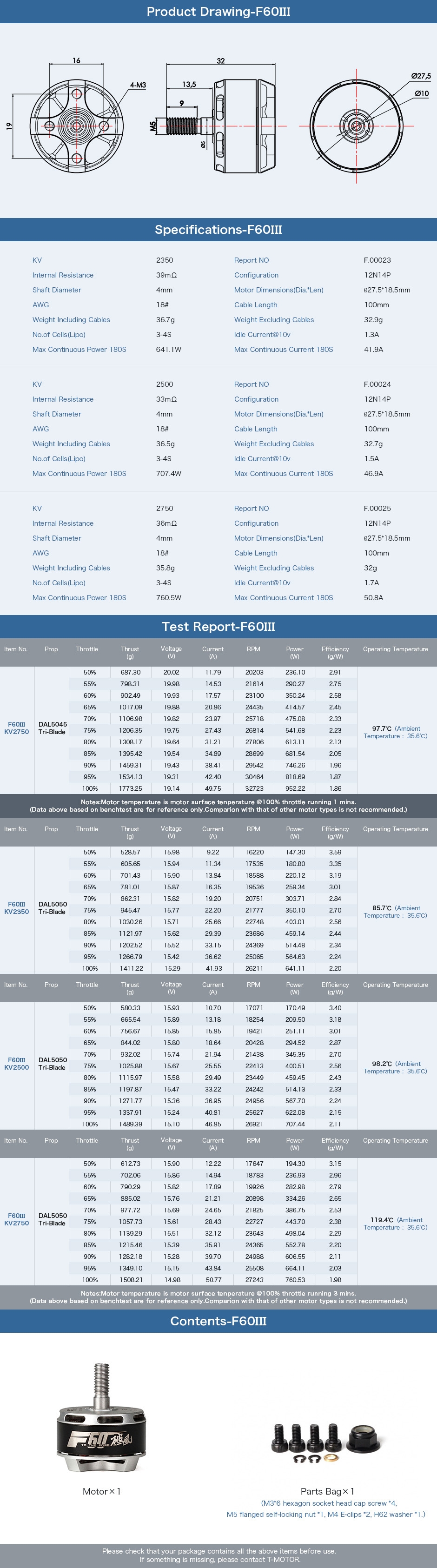

Specification

• KV: 2350
• Configuration: 12N14P
• Shaft Diameter: 4mm
• Motor Dimensions (Dia.*Len): Ø27.5*18.5mm
• Cable Length: 100mm
• Weight Including Cables (g): 34.3g
• Weight Excluding Cables (g): 30.6g
• No.of Cells (Lipo): 3-4S
• Idle Current@10v (A): 1.7A
• Internal Resistance: 39mΩ
• Max Continuous Power (W) 180S: 620.7W
• Max Continuous Current (A) 180S: 40.9A

Includes

• 1x F60III 2350Kv Motor
• 1x Hardware Pack(Screws)
