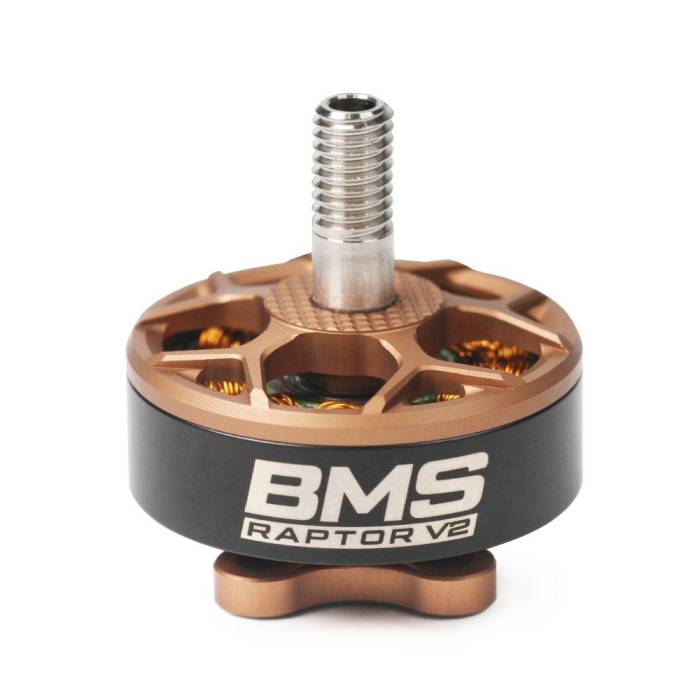

T-Motor BMS Racing Raptor V2 2306.5 Motor - 2000KV

The T-Motor BMS Racing Raptor V2 2306.5 Motor was developed in collaboration with Thomas Bitmatta (BMSWEB). The BMS Racing Raptor series by T-Motor was made to the highest standards of FPV racing.

The BMS Raptor V2 is every bit the same spirit as the original Raptor series but amplified. Its development's core focus was simple - outperform the BMS Raptor series V1 motors in every aspect. To achieve this, they analyzed each component in every detail, to find new ways to extract the next level of performance.

Features

• Stronger and Lighter than the V1
• Improved Heat Management
• New Bronze Finish
• Higher Response
• Race Durability

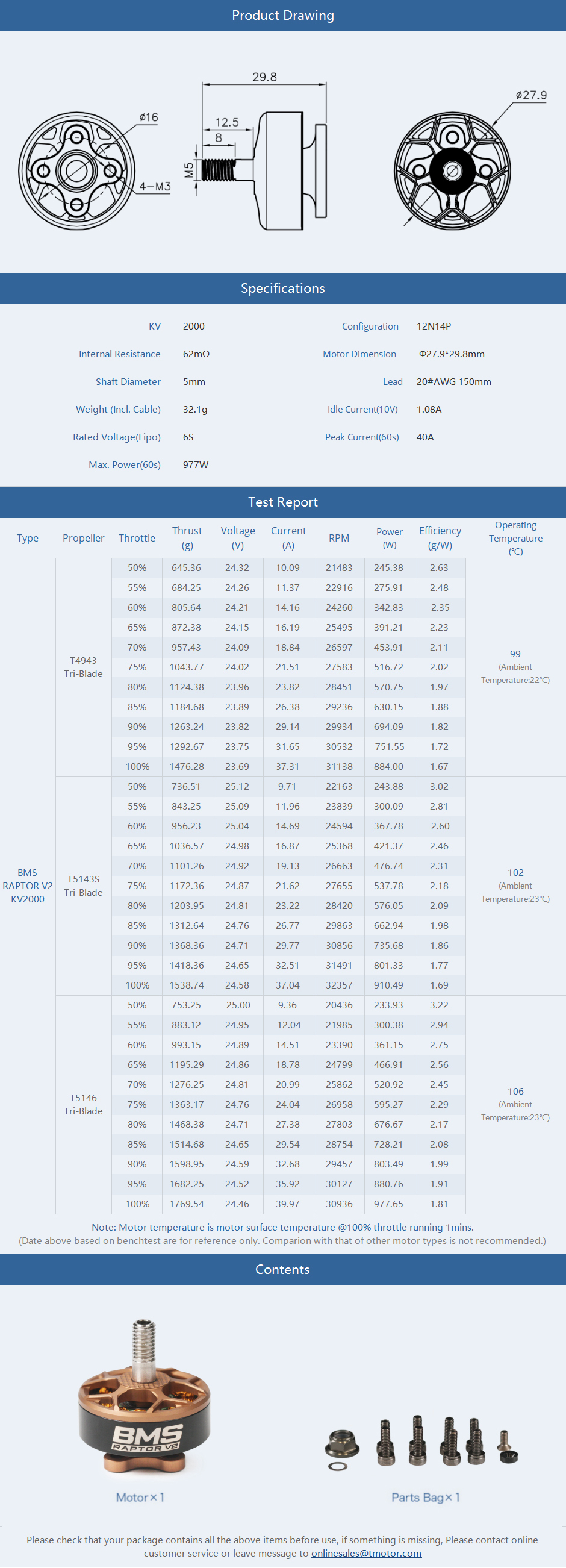

Specifications

• Dimensions: 27.9x29.8mm
• Weight (with Cable): 32.1g
• Idle Current (10V) 1.08A
• Lead: 20 AWG 150mm
• Internal Resistance: 62
• Configuration: 12N14P
• Shaft Diameter: 5mm
• Peak Current: 40A
• Rated Voltage: 6S
• Max Power: 977W
• KV: 2000

Includes

• 1x T-Motor BMS Racing Raptor V2 2306.5 Motor - 2000KV
• 1x Hardware Kit
