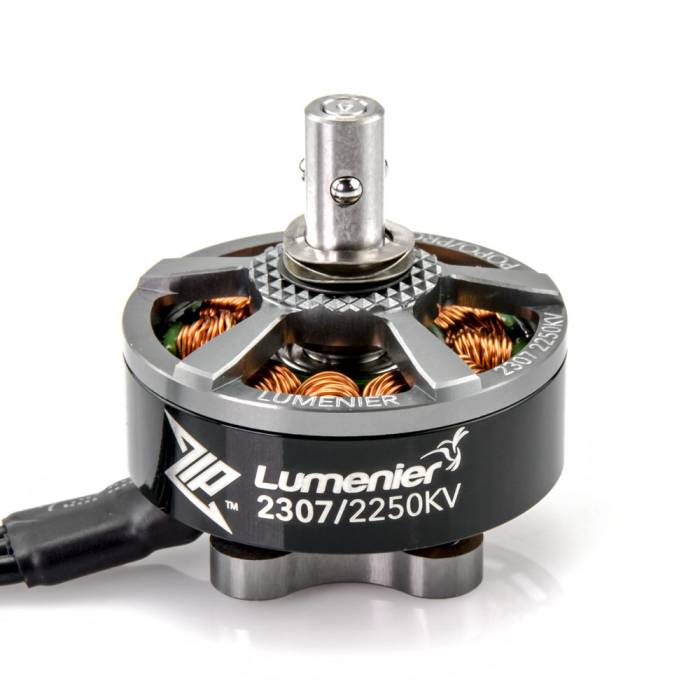

Lumenier ZIP 2307 POPO Pro Motor 1750KV/2250KV/2550KV
Lumenier ZIP 2307 POPO Pro Motor 1750KV/2250KV/2550KV
Select options for stock status
About this product
The Lumenier ZIP motor line continues to grow with the addition of the ZIP 2307 Motor. With three different KV options to choose from, you'll have a ZIP to match every setup.
The ZIP series by Lumenier is the culmination of years of FPV drone motor manufacturing experience. The ZIP motors feature top of the line components and powerful N52SH (high temperature) curved magnets for maximum power. This gives you the best performing motor for your racing or freestyle drone. Lumenier has always been known for its silky smooth motors, and the ZIP motors are no exception. Each motor is dynamically balanced and tested at the factory to ensure a smooth and perfectly running motor out of the box, resulting in clear and jello-free flight footage.
The polished steel shaft ZIP motors allow drone pilots to use traditional propellers with nuts. The shafts are made from high-quality steel to ensure the best durability possible with threads that will not strip.
The motor features a minimal lightweight base and hollow steel 4mm shaft with screw termination for easy maintenance. The ZIP 2307 motors come in at 33g continuing Lumenier's tradition of creating some of the lightest racing and freestyle motors on the market.
Carefully assembled and dynamically balanced to the highest standard in Lumenier's climate-controlled facility, the Lumenier ZIP motors deploy state of the art glue technology, application robots for even glue distribution, and advanced curing procedures to ensure magnets won't slip -- even under the tremendous demands put on them during drone racing and FPV freestyle events.
Specifications
- KV: 1750/2250/2550
- Configuration: 12N14P
- Windings: 7-turn DLRK
- Termination: D (Delta)
- Stator Diameter: 24mm
- POPO Compatible: Yes
- Magnets: N52SH Curved
- Bearing Size: 9x4x4
- Inner Shaft Diameter: 4mm / Steel
- Base Mounting Pattern: 16x16mm M3 Thread
- Motor Dimension: 28x19mm
- Weight: 33g (short wires)
- Cells (LiPo) 3S-6S
- Motor Wire Length: 150mm / 20AWG
- Motor Connection: Bare Wire
Includes
- 1x Lumenier ZIP 2307 POPO Pro Motor
- 4x M3x6 Socket Cap Screw
- 4x M3x8 Socket Cap Screw
More Information
SKU | 11726 |
---|---|
Manufacturer | Lumenier |
NDAA Compliant | No |
Popo Compatible | Yes |
Item Returns | This item can be returned |
