Flywoo ROBO 1002 Motor - 15500KV/23500KV
The Flywoo ROBO 1002 is a lightweight, smooth, and powerful motor made for 1-2S drones.

About this product

The Flywoo ROBO 1002 is a lightweight, smooth, and powerful motor made for 1-2S drones.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

Features

  • 1-2S LiPo compatibility
  • 2.4g in weight
  • 1002 Stator

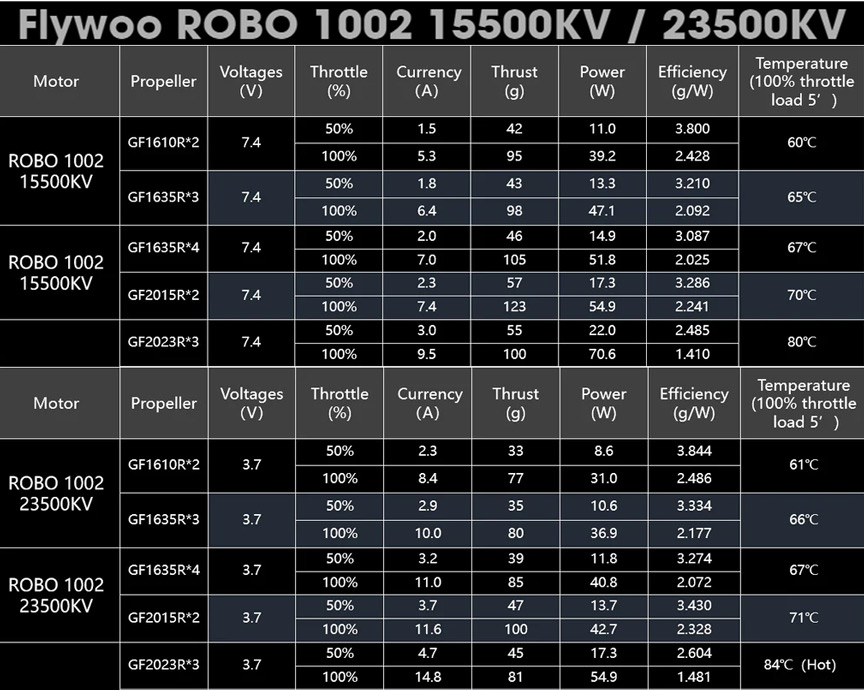

Flywoo Robo 1002 Motor

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

15500KV

  • Motor Dimension(Dia.*Len):Φ13.5*7.75mm
  • Max.Efficiency Current:(1-3A)>84%
  • Max Continuous Power(W)3S:67
  • Internal Resistance:165mΩ
  • Idle current(5)@5V(A):0.8
  • Weight(g):2.4(5cm wire)
  • No.of Cells(Lipo):1~2S
  • Shaft Diameter:1.5mm
  • Max Current(3S):10A
  • Stator Diamter:10mm
  • Configuration: 9N12P
  • Stator Length:2mm

23500KV

  • Motor Dimension(Dia.*Len):Φ13.5*7.75mm
  • Max.Efficiency Current:(2-4A)>84%
  • Max Continuous Power(W)3S:52
  • Internal Resistance:70mΩ
  • Idle current(5)@5V(A):1.5
  • Max Current(3S):14.8A
  • Weight(g):2.4(5cm wire)
  • Shaft Diameter:1.5mm
  • Stator Diamter:10mm
  • Configuration: 9N12P
  • No.of Cells(Lipo):1S
  • Stator Length:2mm

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x Flywoo ROBO 1002 Motor (15500KV or 23500KV)
  • 1x M1.4*3 Screws Set

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS

More Information

SKU 19537
Manufacturer Flywoo
NDAA Compliant No
Popo Compatible No
Item Returns This item can be returned
