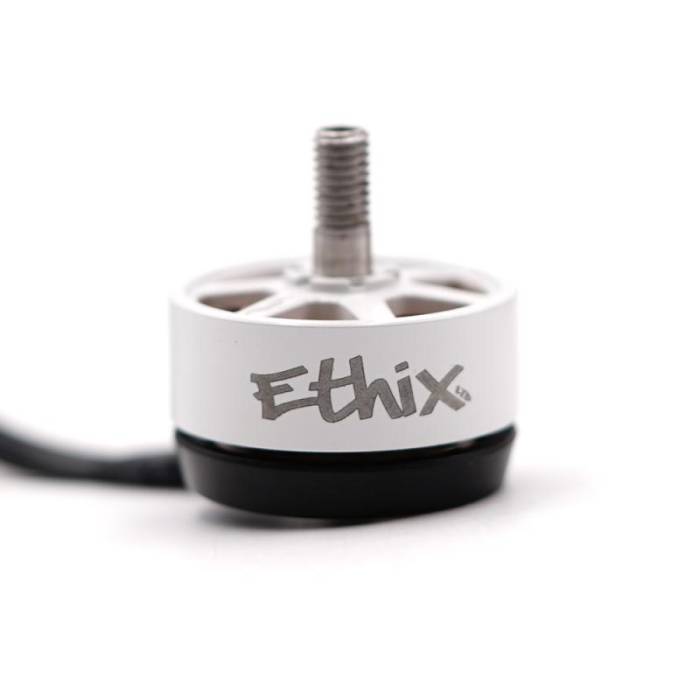

The ETHIX Mr. Steele Stout 2306 Motor is an absolute gem - only increasing the weight by a tad over 1g from the previous model while achieving more power, efficiency, and most importantly durability.

"I take great pride in my work and am always trying to raise the bar. After two years of seemingly nonstop research & development, I am proud to present this fine piece of Miniquad motor engineering."

-Steele

VIDEO: Mr Steel Stout 2306 / 1700KV 6S Motors | ETHIX

Features

• Complete Interchangeable motor pants redesign (thicker & more crash/low temperature resistant, better gap fitment, + more protection coverage for the “tall pants”)
• Base redesign 16x16(only) mounting holes (structural changes for more durability)
• Complete bell redesigned (durability and smoothness in mind)
• Full-length cables compared to Stout V3 at 30.5g
• Thicker single strand copper winding
• Increased EFFICIENCY & POWER
• Better assembly tolerances
• Overall QC improvements
• Eco-Friendly packaging
• 9mm steel bearings
• Motor weight 31.8g

V3- V4 Compatibility

• Note: Everything is interchangeable except pants) The pants are stator-specific and can be interchangeable but with less than desired effect.
• V4 and V3 motors are completely cross-compatible.
• V3 bells - V4 stator
• V4 bells - V3 stator

Specifications

• Motor Overall Dimensions: φ28.6mm*17.5mm
• Stator Size (Diameter): 23mm*6mm
• Base Mounting Thread: M3 Thread
• Base Mounting Pattern: 16x16mm
• Internal Resistance (Rm): 100mΩ
• Wire Spec (AWG): 20#-135mm
• Weight (With Wires) (g): 32.4g
• Shaft Length (mm): 11.5mm
• Shaft Diameter (mm): 4mm
• Max Burst Current (A): 50A
• Pants Weight:
• Low - 1g vs (0.8 v3)
• Tall - 2g vs (1.8 v3)
• Magnets: N52SH Curved
• Windings: 15turn DLRK
• Max Current (A): 45A
• Shaft material: Steel
• Bearing: NMB684
• Cells (Lipo): 6S
• Kv: 1750kv

Includes

• 1x ETHIX Mr. Steel Stout 2306 1750KV Motor
• 1x Short Motor Pants
• 1x Tall Motor Pants
• 1x Hardware Set
